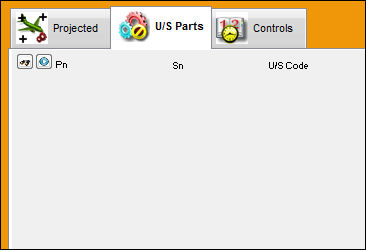

From the Shop Resource/Tasks Planner window, select the U/S parts tab and select the Find
button.

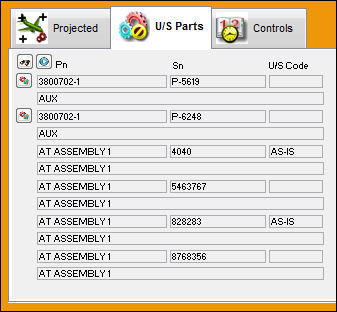

All unserviceable parts for the location/Work Order selected appear in the U/S parts tab as shown below:

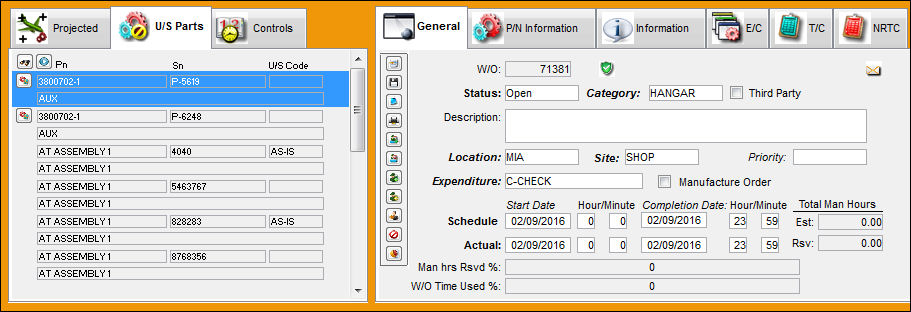

From the Selected Work Order Area, select the P/N Information tab.
Select the New
button. The user is now able to add a selected item to the Work Order.
Select the Add P/N Information
button to add P/N information to the selected Work Order:

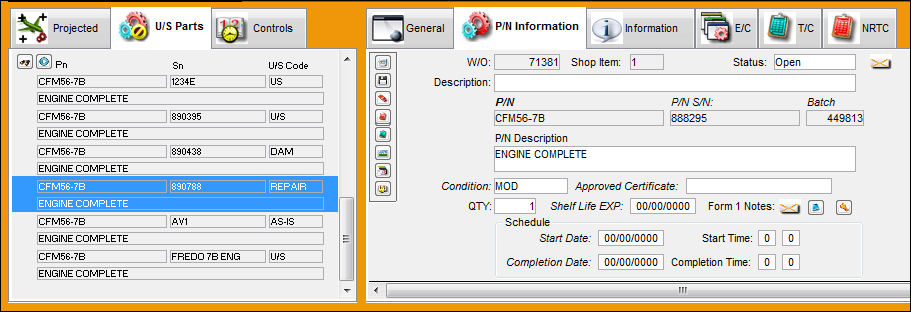

The selected item has been added to the Work Order:

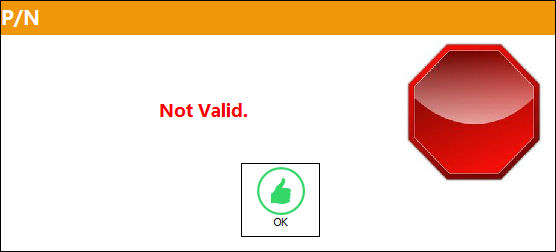

If a P/N is not valid, the following error will appear:

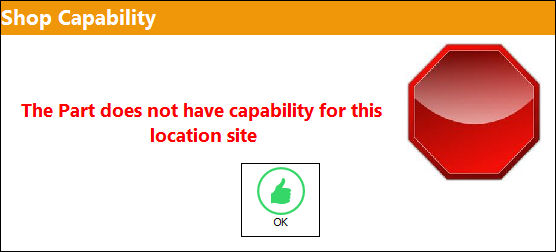

If the part does not have capabilities for the selected location, the following error will appear:
