Import Button, via Bin Master

The Bin Master, Import Option is used to quickly import a master Bin which may not exist in the TRAX Bin Master DB. This option allows you the vendor to receive or create a digital file listing these Bins and related information for the import and quick creation of a Master Bin.

First, the user must prepare the file. For information regarding how to prepare the import file, refer to Preparing File For Import, via the Import Button of the System Standards Training Manual.

Criteria for Bin Master Import file:

Release

Column Name

Data Type

Limitation

Path



Location

Alphanumeric

10

Settings/ Update/ Bin Master, General tab



Bin

Alphanumeric

20

Settings/ Update/ Bin Master, General tab



Description

Alphanumeric

45

Settings/ Update/ Bin Master, General tab



Category

Alphanumeric

10

Settings/ Update/ Bin Master, General tab



Length

Numeric

08

Settings/ Update/ Bin Master, General tab



Height

Numeric

08

Settings/ Update/ Bin Master, General tab



Width

Numeric

08

Settings/ Update/ Bin Master, General tab



Weight

Numeric

08

Settings/ Update/ Bin Master, General tab



Counted Date

Numeric

14

Settings/ Update/ Bin Master, General tab

logo_15 small

Queue

Y

1

Settings/ Update/ Bin Master, General tab

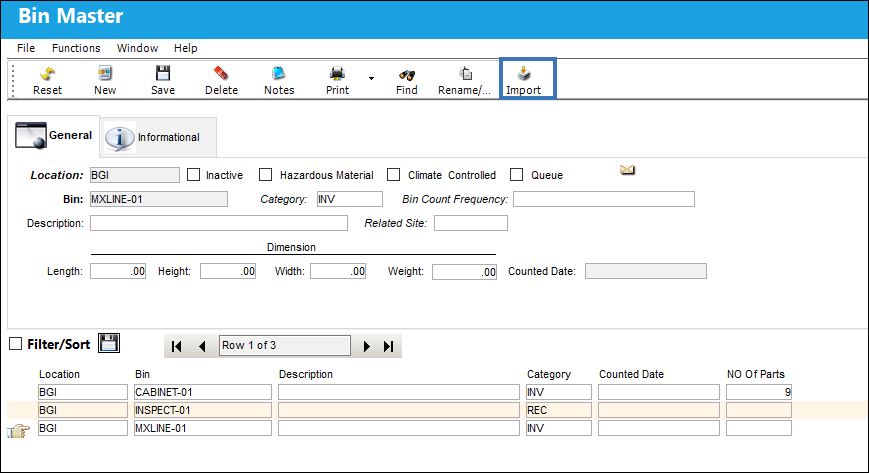

Go to Settings/ Update/ Bin Master. From the Bin Master, General tab, select the Import but_import_(software_bin replacement)_small button:

Bin Master

Complete all of the Import steps.

For information regarding how to Import a file, refer to Importing a File via Import Button of the System Standards Training Manual.

See Also

Bin Master Buttons

Notes Button, via Bin Master

Print Button, via Bin Master

Print Single Label Button, via Bin Master

Print All Labels Button, via Bin Master

Rename/Copy Button, via Bin Master
