Dashboards, via Navigation Panel

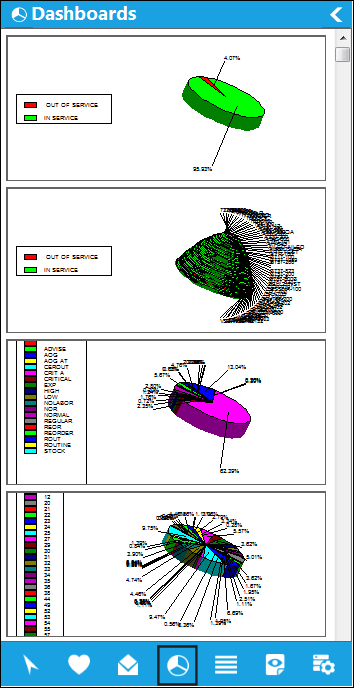

In the Navigation Panel, the Dashboards tab provides various graph templates for the user to view. These user friendly graphs provide a quick reference to pertinent information regarding the information in your system at a glance. These graphs are derived from information that is already loaded into the system (i.e. fleets that are In Service/ Out of Service etc.) The user has print access to any of these graphs once selected. See below for additional information on each graph displayed in the Dashboard.

Right-click on the below graph.

Click on the Select Graph option.

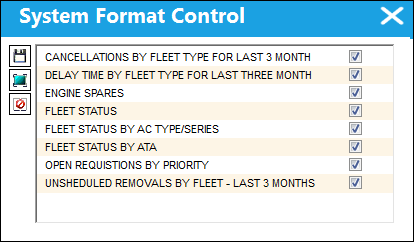

The System Format Control pop up appears, allowing the user to determine which graphs to display in their Dashboard view.

Right click on any of the graphs in the Dashboard.

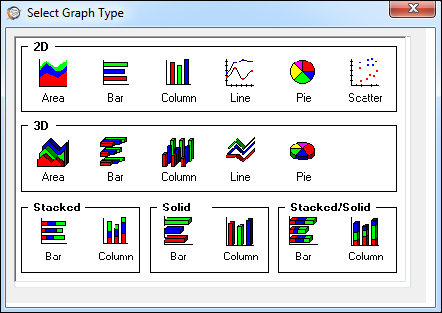

Select from any of the below graph types to view the specified information in a different graphical display (i.e. bar graph, column graph, pie chart, etc.).

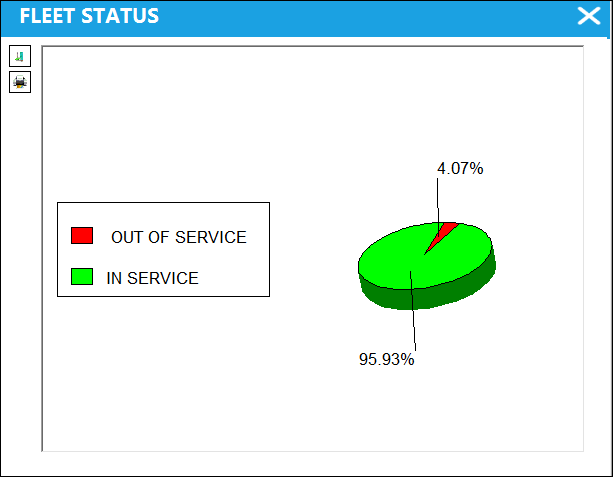

Fleet Status:

The following is a graphical display of all of the fleets that are currently In Service and Out of Service in your system.

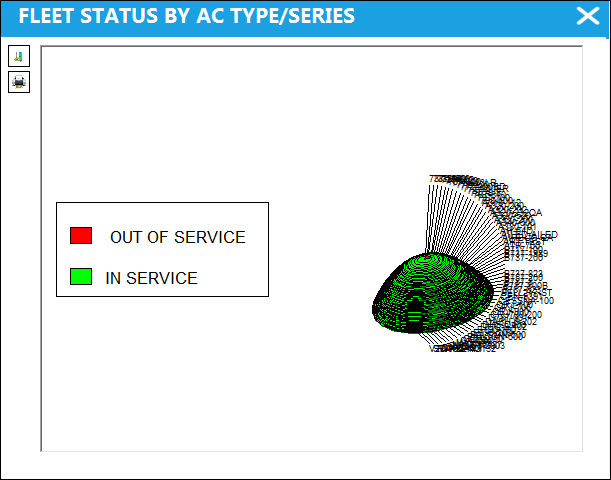

Fleet Status By A/C Type/Series:

The following is a graphical display of all of the fleets (by Type/Series) that are currently In Service and Out of Service in your system.

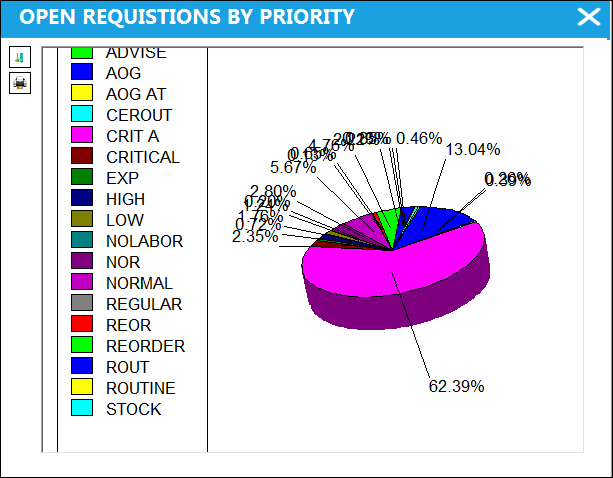

Open Requisitions By Priority:

The following is a graphical display of all Open Requisitions by priority that are currently in your system.

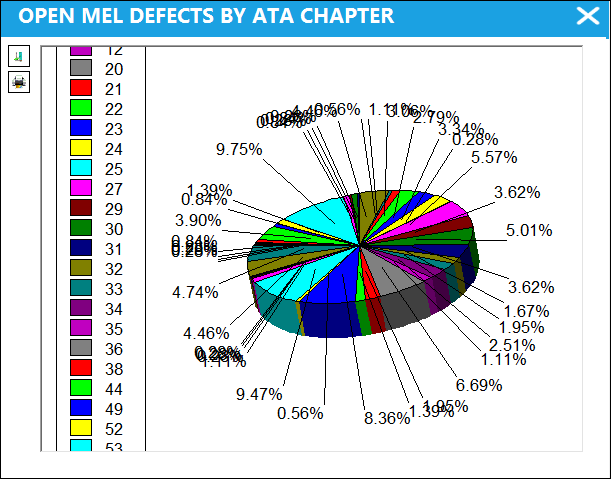

Open MEL Defects By ATA Chapter:

The following is a graphical display of all Open MELs by ATA Chapter that are currently in your system.

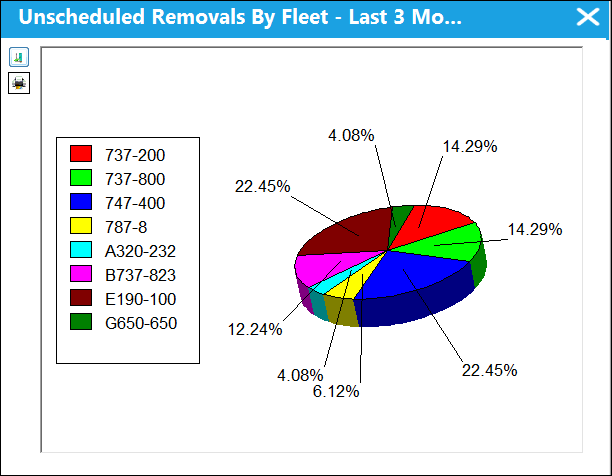

Unscheduled Removals By Fleet - Last 3 Months:

The following is a graphical display of all Unscheduled Removals by fleet in the last 3 months that are currently in your system.

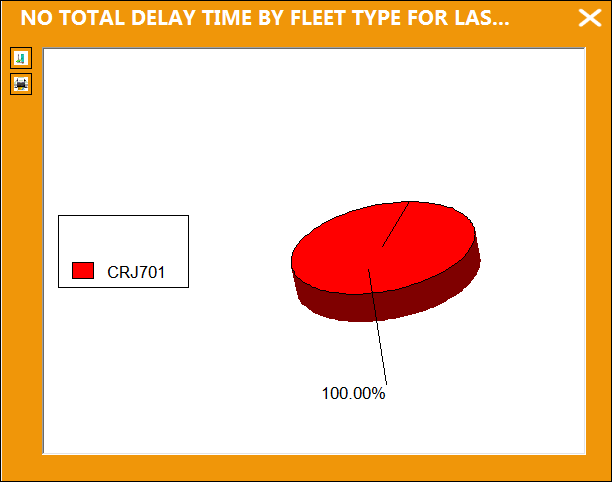

No Total Delay Time By Fleet Type For The Last Three Months:

The following is a graphical display of all Delay Times by fleet for the last 3 months that are currently in your system.

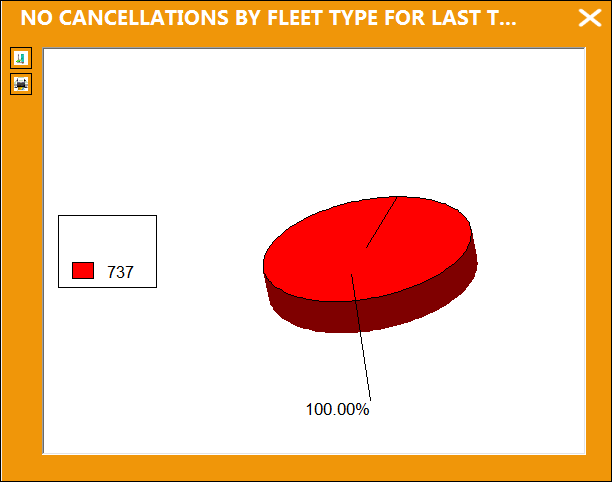

No Cancellations By Fleet Type For The Last Three Months:

The following is a graphical display of all cancellations by fleet Type for the last 3 months that are currently in your system.
