E/C Sub Category

TRAX MANUALS > Engineering > Engineering Transaction Codes > E/C Sub Category

E/C Sub Category

The System Transaction Codes are displayed with both the Code Names and Descriptions. The Code Descriptions directly illustrate their functionality and role in the system, as fields are populated and tasks are performed.

Transaction Code:	E/C SUB CATEGORY
General Description:	E/C Sub Category that will be associated with each EC.
Are Authorization Steps Available?	Y
Is System Notification Available?	Y
Trax Control Panel Path(s):	Engineering/ Update/ Engineering Control
Windows(s):	w_engineering_eu
Related Switch(s):	None
Functions:	Categorizing the EC by SB, AD and etc. for sorting print and searching purposes.
Reports:

Available Functionality:

Providing system notifications to newly created, modified, deleted, revised and complied with E/Cs.
Option to exclude certain E/Cs with a Sub Category Transaction Code that is Sweep excluded.

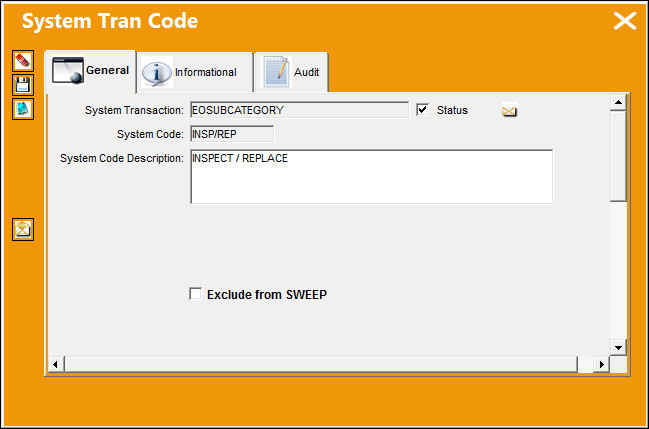

EC TRANCODE_Sub Category TC 2

The following information/options are available in this window:
_____________________________________________________________________________________

System Notification button

This button is used to set up system generated notifications to be sent to a user when an E/C with a specified E/C Sub Category is created. For information on how to set up System Notifications, refer to Set Up - System Notification, via System Notifications of the Settings Training Manual.

Note: When an Engineering Control with multiple attached Task Cards is issued to a Work Order, only one notification will be sent to the user(s) specified in the System Notification, not one different notification for each Task Card.

Exclude from SWEEP checkbox

Select the 'Exclude from Sweep' checkbox to exclude any E/Cs that contain a System Transaction Code with this checkbox selected.

_____________________________________________________________________________________
