The Labor Manual
button allows the user to add time (labor) to individual and/or multiple Task Cards for any employee. This window is not user specific. This function can also be used to edit the time that it took to carry out a GSE Task Card. This window keeps a record of every user that has put time against a GSE Work Order Task Card, and allows the user to specify the Category of time and whether the time entry is manual.
From a GSE Work Order, select the Labor Manual button.

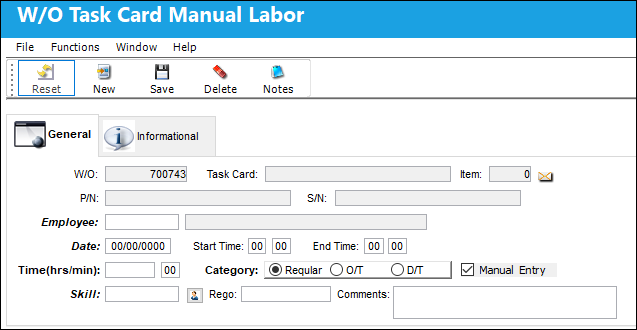

The W/O Task Card Manual Labor window appears. The user may select the New
button to add time and/or labor to a work.
The following information/options are available in this window:
_____________________________________________________________________________________
W/O
The Work Order used to categorize, manage, and schedule work requirements for aircraft maintenance.
Task Card
The Task Card / Job Card that details the scheduled maintenance work.
Item
The individual Task Card Item number that manual labor has been added to. Users can assign manual labor to specific Task Card Items. Notice the Item field above and the Task Card Item field below are linked. When the Item number is '0', the manual labor will apply to all of the Items.
P/N
The Part Number reference for the Ground Support Equipment part.
S/N
Ground Support Equipment Number Serial Number.
Employee
The employee performing the task.
Date
The date of the task.
Start Time
The time the labor started on the Task Card.
End Time
The time the labor ended on the Task Card.
Time (hrs/mins)
The amount of time to be manually added. The maximum number of hours that can be input here is defined via System Administration/ Explorer/ System Transaction Configuration/ Production/ LABORTIM (Maximum Hours Allowed In Work Order Task Card Manual Labor).
Category
The type of hourly work schedule being applied: Regular, Overtime, or D/T (Double time).
Manual Entry
This checkbox indicates that the manual labor is being recorded manually by a user.
Skill
The appropriate skill used to perform the task.
Rego
This free-text field is used to indicate that the work is being re-done. If the required work was completed once, and must be re-done, this field along with the Comments field may be used as desired. This field is informational only.
Comments
These are notes added to the W/O T/C through the Edit Note button. These notes are included in the Shift Turnover and applicable reports.
_____________________________________________________________________________________
