From the A/C Controller Panel window, select the Filter/Sort button.

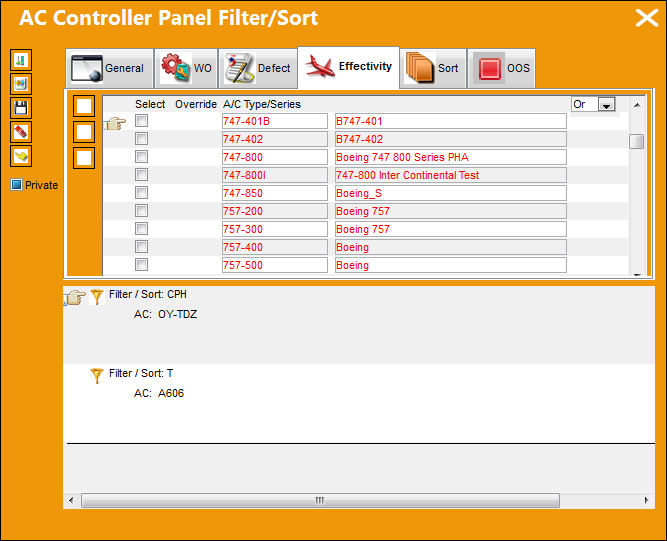

TRAX displays the A/C Controller Panel Filter/Sort window. Select the Effectivity tab.

Note: The Effectivity tab will not appear until there is a named/created filter. At this point, the Effectivity tab will limit the A/C Type/Series and/or A/C which appears in the A/C Controller Panel.

Enter/verify the following criteria that will establish the filter/sort profile:

_____________________________________________________________________________________

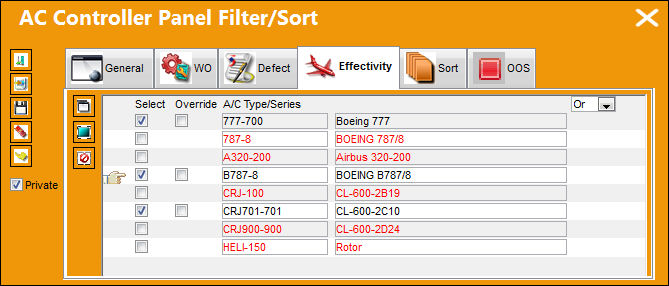

Select checkbox

Select this checkbox to override effectivity of an aircraft/tail number.

Note: When this checkbox is selected, the Override checkbox appears.

Override checkbox

When this checkbox appears, effectivity has been overridden for an aircraft tail number.

A/C Type/Series

The Aircraft Type and Series/Fleet assignment.

Private checkbox

Select this checkbox if this profile is to remain private.

And/Or Logic

Select 'Or' to filter/sort by one field or more fields or another. Selecting 'Or' will allow the system to search for multiple individual criteria until it finds one. Select 'And' to filter/sort by two or more criteria. Selecting more than one criteria makes the search more specific.

Override button

Select the Override button. TRAX displays the Filter Effectivity Distribution window. This window allows the use to filter for the selected aircraft.

Select All button

Select this button to select all aircraft in the window.

Deselect All button

Select this button to deselect all aircraft in the window.

_____________________________________________________________________________________

Select the Private checkbox to view the private filter/sort profiles created.
