TRAX MANUALS > Production > Production Module > Production, Update Menu > W/O Task Card and Non-Routine Search > New N/R Express Button, via W/O Task Card and Non-Routine Search > Non-Routine Express Authorization Process > W/O Non-Routine Creator Release for Authorization

From the W/O Non-Routine Creator Release for Authorization, users who created a Non-Routine Task Card can authorize their pending N/R T/Cs. The following example contains an authorization level of 'AMT' (as specified via the W/O Category transaction code) and therefore only requires one step for authorization. For detailed information on the N/R Express authorization processes, refer to the Non-Routine Express Authorization Process via the Production Training Manual.

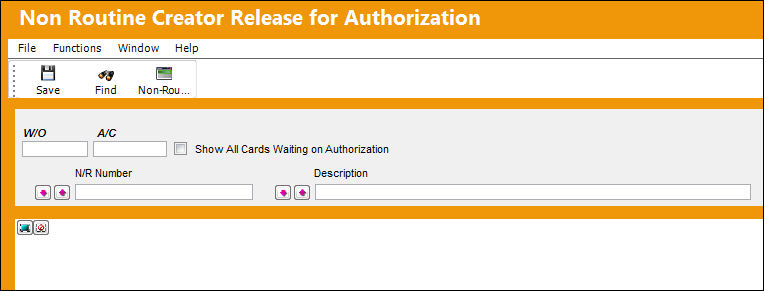

When selected, the Non Routine Creator Release for Authorization window displays as follows.

Note: This functionality was designed as specified by a TRAX customer. The procedures intended through this functionality are part of their customized program and therefore cannot be modified by any other TRAX customer.

Note: Only the user who created the Non-Routine Task Card can see the N/R T/C from this window. If a N/R T/C has to be authorized by a user who did not create it, the authorizer will have to access the N/R T/C from the N/R Express window and must select the Accept button. For more information refer to the Accept Button, via Non-Routine Express in the Production Training Manual.

This window is security-controlled via Production/ Update/ W/O Non-Routine Release For Authorization. For more information refer to the Security Explorer via the System Administration Training Manual.

The following information/options are available in this window:
_____________________________________________________________________________________

W/O

The Work Order used to categorize, manage, and schedule work requirements for aircraft maintenance.

A/C

The individual aircraft tail number.

N/R Number

The pending Non-Routine Task Card number.

N/R Number Sort radio buttons

Allows users to sort the queried Non-Routines. The options are ascending (ASC), descending (DEC), or None.

Description

The Description of the N/R T/C. This field uses a 'like' search function.

Description Sort radio buttons

Allows users to sort the queried Non-Routine Descriptions. The options are ascending (ASC), descending (DEC), or None.

Select All / Deselect All buttons

Each buttons allows users to select all listed Non-Routines for authorization or to deselect all listed Non-Routines.

_____________________________________________________________________________________

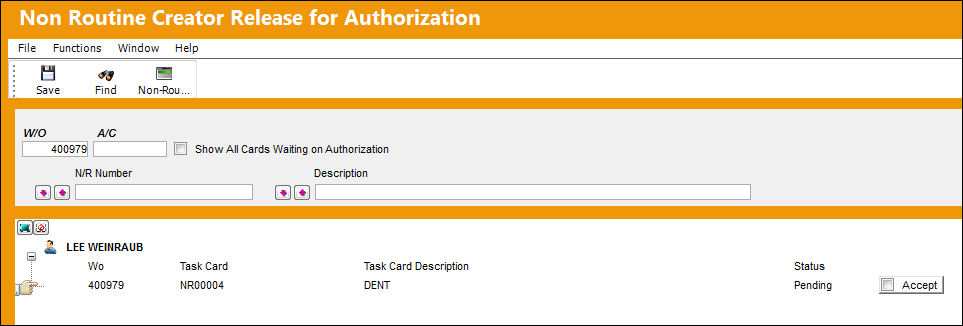

When the required N/R T/C is queried, the result(s) are displayed as follows.

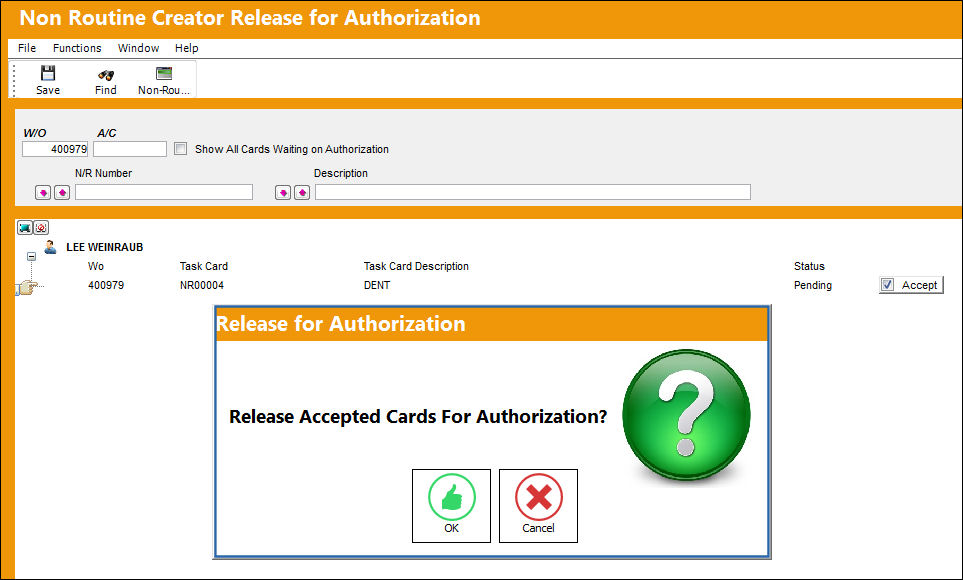

To accept, select the Accept radio button then select the Save button.

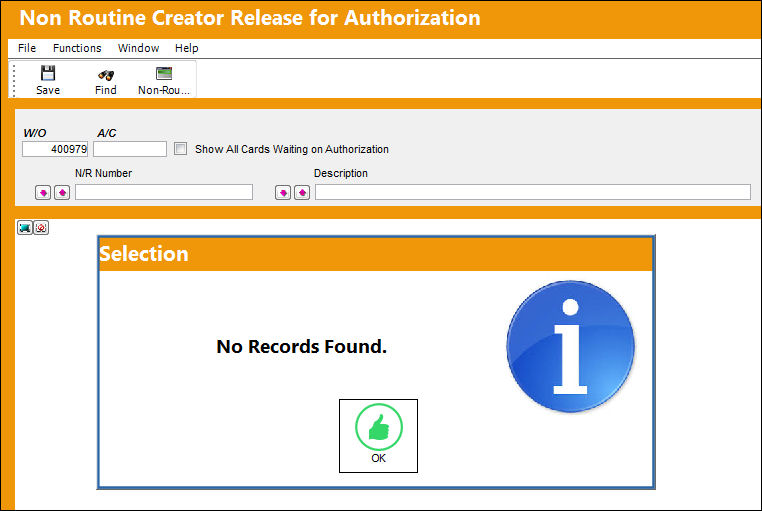

Once authorized, the formerly pending N/R T/C is no longer listed in the window.

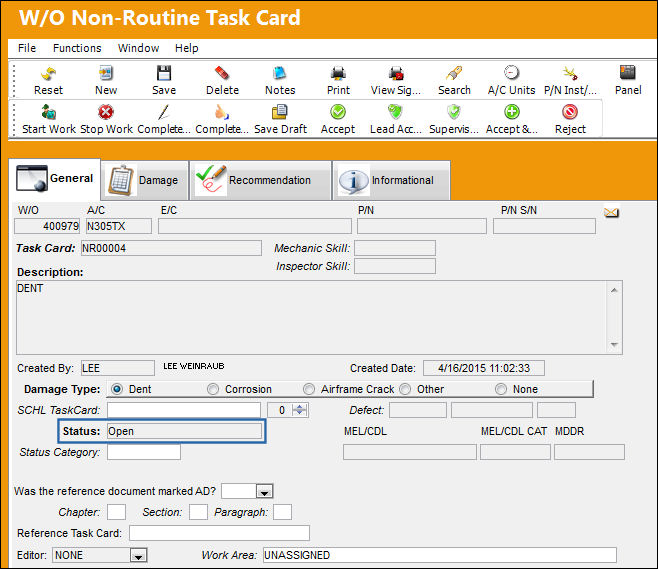

From the N/R Express window, notice that the N/R T/C has been authorized and is in Open status.
