Individual Task Card, W/O Task Card Work (Work In Progress)

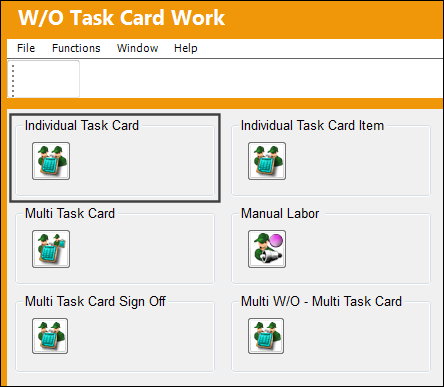

From the Work Order Task Card In Progress window, select the Individual Task Card button.

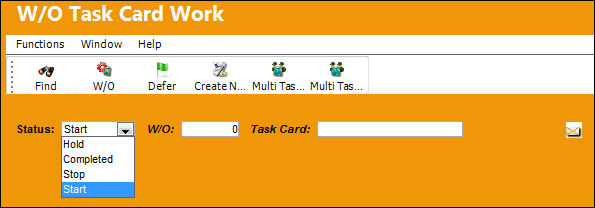

TRAX displays the W/O Task Card Work window:

The following information/options are available in this window:
_____________________________________________________________________________________

Status

Action user would like to perform:

Start - Used to start the clock counting on a Task Card that is about to be worked on. For additional information, refer to Starting a Task Card via Work Order Task Card Work In Progress.

Hold - If required, a Task Card can be put on HOLD status. This may be where insufficient material or labor is available to complete the work at this time. Remember that a Task Card must be Stopped before being placed on HOLD. To change the status, just re-enter/find the Task Card and choose the HOLD status.

Completed - Used to record that a Task Card is finished (completed). For additional information, refer to Completing a Task Card via Work Order Task Card Work In Progress.

Stop - If required, a Task Card can be Stopped (for example when stopping for a break). This will stop the clock on the particular Task Card. To change the status, re-enter/find the Task Card and choose the Stop status.

Note: The Status Selection is based on the Security Settings.

W/O

The Work Order used to categorize, manage, and schedule work requirements for aircraft maintenance.

Task Card

The Task Card / Job Card that details the scheduled maintenance work.

_____________________________________________________________________________________

The Technician can select the status required, and then enter the Work Order and Task Card number required. If bar-coding is used, this will ease the task of entering the required data. Otherwise, the Work Order and Task Card can be selected by right-clicking on the fields.

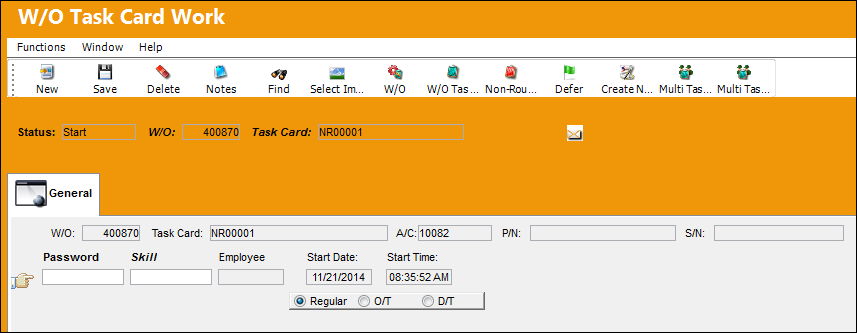

When the W/O and related Task Card has been selected, TRAX displays the following:

The following information/options are available in this window:
_____________________________________________________________________________________

W/O

The Work Order used to categorize, manage, and schedule work requirements for aircraft maintenance.

Task Card

The Task Card / Job Card that details the scheduled maintenance work.

A/C

The individual aircraft tail number.

P/N

The Part Number reference for the aircraft part.

S/N

The Serial Number for the specific serialized part.

Password

The Employee Wall Password as set up in the Security Explorer.

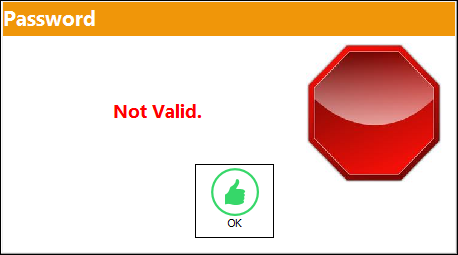

The following error message will appear if:

1. The Wall Password is not valid

2. The Employee is not part of the 'Users With Wall Security' section of the Wall By Program

Skill

The appropriate skill used to perform the task.

Employee

The employee performing the task.

Date

The date of the task.

Start Date

The date the labor started on the Task Card.

Start Time

The time the labor started on the Task Card.

Time (hrs/min)

The amount of time to be manually added. The maximum number of hours that can be input here is defined via System Administration/ Explorer/ System Transaction Configuration/ Production/ LABORTIM (Maximum Hours Allowed In Work Order Task Card Manual Labor).

_____________________________________________________________________________________

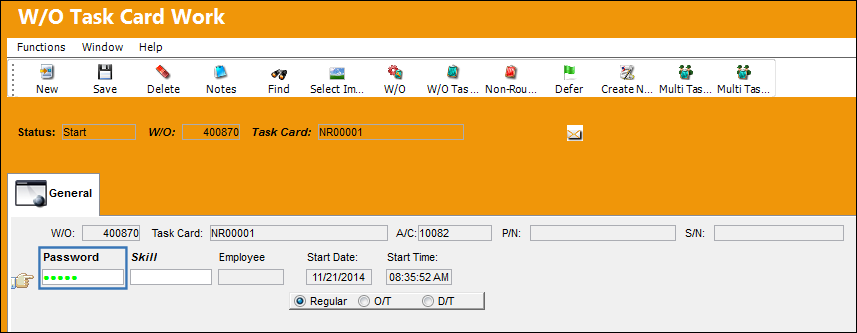

The user must enter his/her password. If the password is correct, TRAX re-displays the Password field with green dots showing that the correct password was entered, as follows:

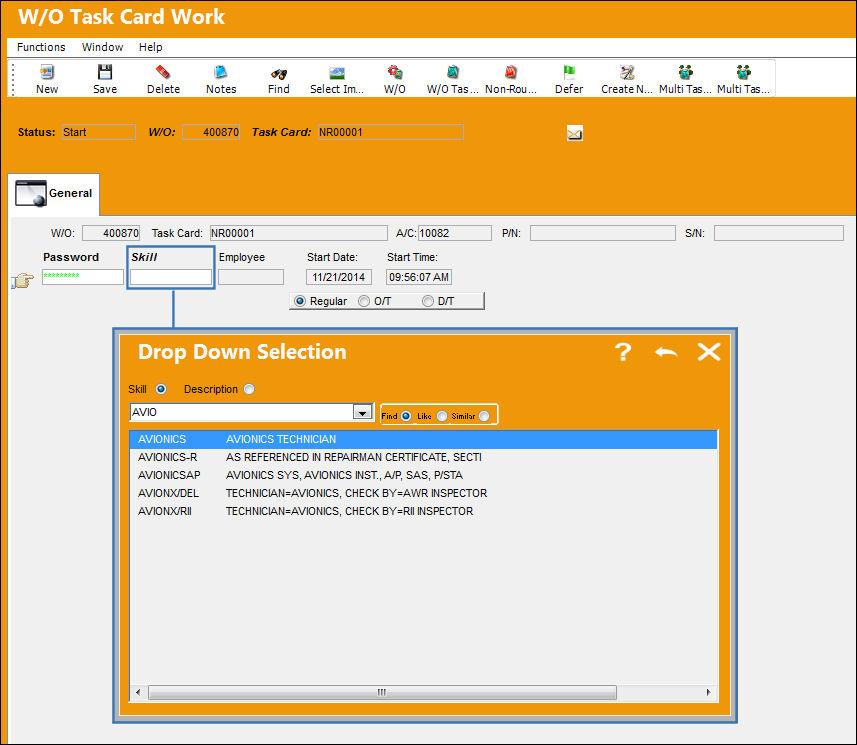

Once the users password is entered, right click into the Skill field to select an Employee Skill.

Note: The Employee Skill must be set up in the Employee Master, via the Settings Module. For additional information, refer to the Skill Button, via the Employee Master of the Settings Training Manual.

Select the Save button.

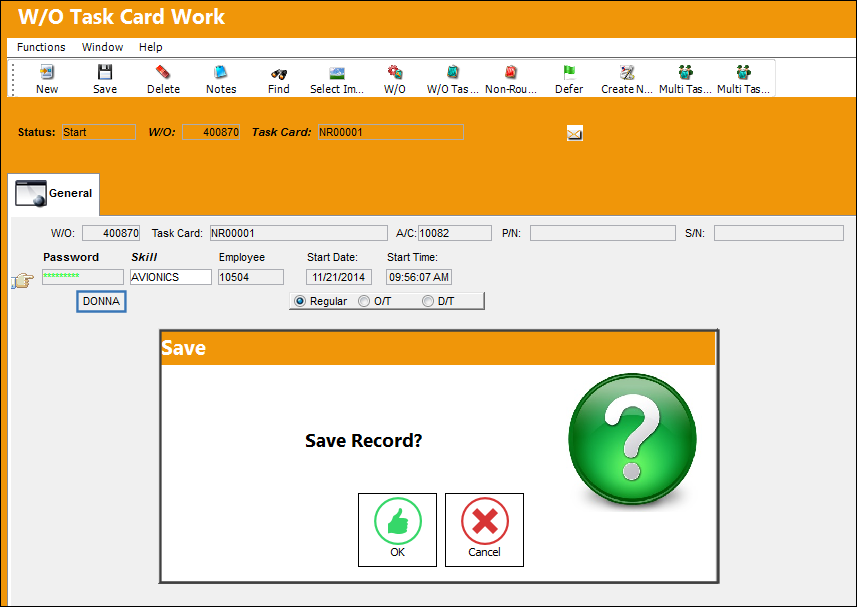

Once the system validates the employee password and skill, the employee's username will appear under the Password field and the Save prompt will appear. Select 'OK' to sign into the Task Card.

Wall Security has been added to the W/O Task Card Work Window, as follows:

Note: The options checked above require Wall Security login and password.
