Site Capacity Schedule

The Site Capacity Schedule option is used to allow for the tracking of man hours scheduled and reserved for a specific employee.

Note: This window is only available when Planning Switch LBRBYHCNT is set to 'No.' When set to 'No,' man hour labor generation will be determined by employee and shift and not by the head count functionality. When set to 'Yes,' this functionality is not available and the window cannot be accessed. For more information refer to Switch LBRBYHCNT via the Planning Switches Manual.

This option is normally used after the man hour allocation has taken place.

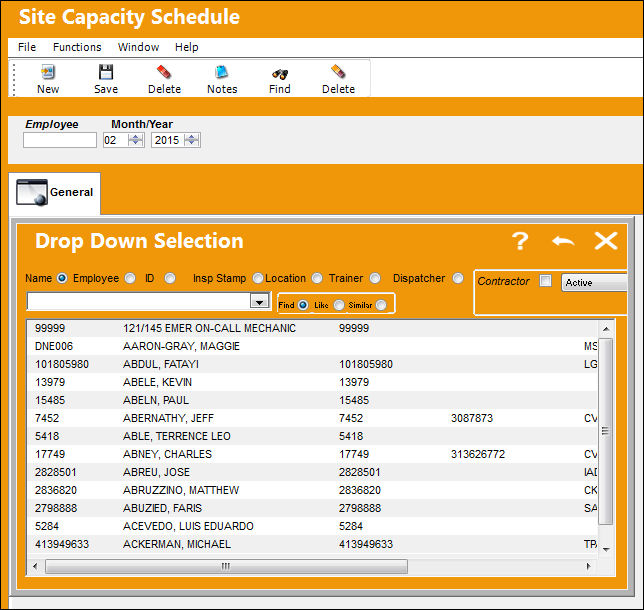

TRAX displays the Site Capacity Schedule Window. Right click in the Employee Field and select an employee from the Drop Down Selection window. Select the Find button.

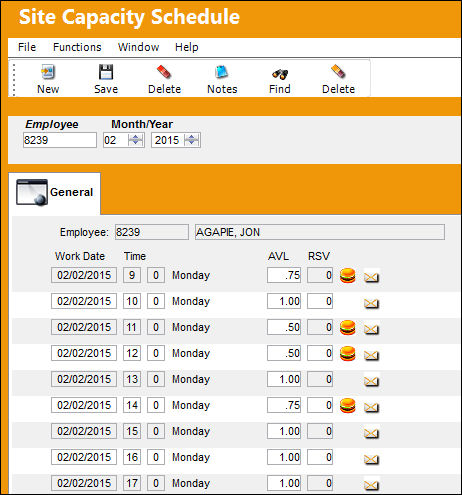

The employees schedule is displayed for the whole month broken down by hours.

Each displayed hour shows the availability and reservation of that hour.

The following information/options are available in this window:
_____________________________________________________________________________________

AVL

Available man hours for that hour unit.

RSV

Reserved man hours for that hour unit.

_____________________________________________________________________________________

The Notes and Delete buttons are available for additional functionality.

This update window is also available in query mode where users can view the records provided in this window but cannot create new records or edit existing data. Refer to this module's Query menu.
