Damage Section used for Damage Chart

The System Transaction Codes are displayed with both the Code Names and Descriptions. The Code Descriptions directly illustrate their functionality and role in the system, as fields are populated and tasks are performed.

Transaction Code:	Damage Section used for Damage Chart
General Description:	To establish coded sections for the Damage Chart report.
Are Authorization Steps Available?	N
Is System Notification Available?	N
Trax Control Panel Path(s):	Transaction Code Explorer/ Technical Records/ Damage Section used for Damage Chart
Windows(s):	w_dent_mapping_eu
Related Switch(s):	None
Functions:	To designate coded sections for the Damage Chart report for an A/C Type/Series.
Reports:	None

Available Functionality:

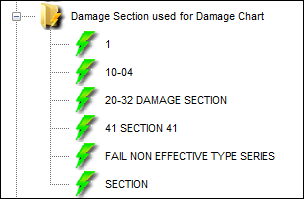

This transaction code allows the user to enter an A/C Type/Series against any Damage Section transaction code. Once a Damage Chart report is created for an aircraft that belongs to that specified Type/Series, all of the Damage Section transaction codes will be available via the Section field for that A/C Type/Series.

The following information/options are available in this window:
_____________________________________________________________________________________

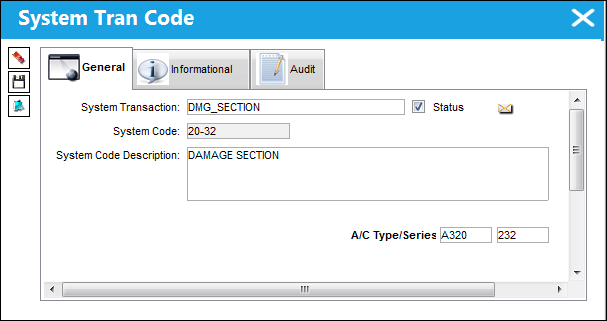

A/C Type/Series

The Aircraft Type and Series/Fleet assignment. Once entered, any aircraft for the A/C Type/Series will be able to access any of the Damage Section codes via the Section field.

_____________________________________________________________________________________

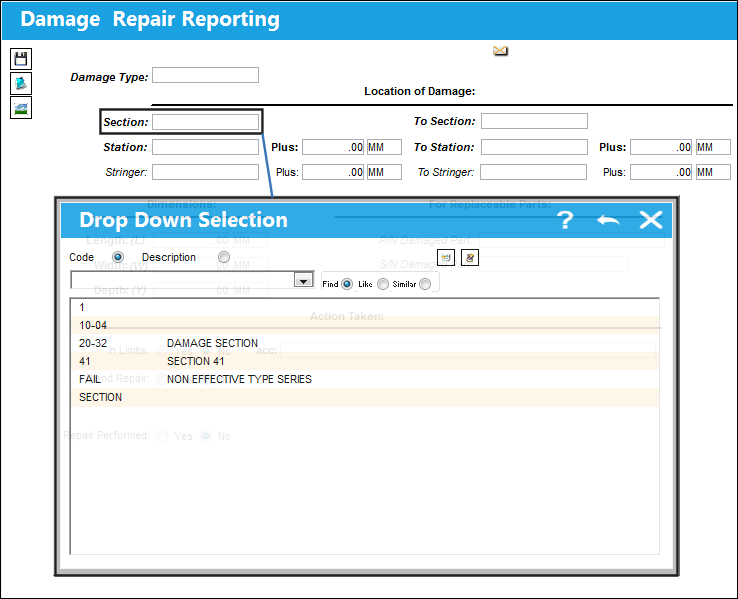

From the Dent Mapping window, select the New Damage Chart button to create a Damage Chart Report for aircraft N1901 which belongs to Type/Series E190/100.
