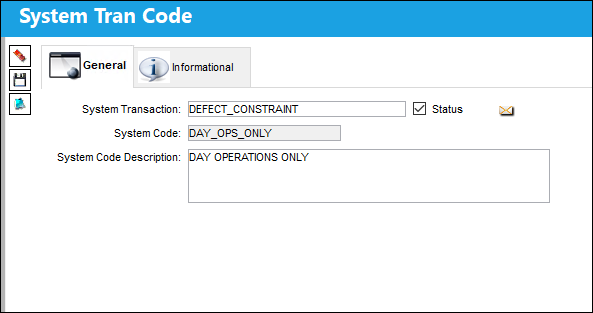

Defect Report Constraint
The System Transaction Codes are displayed with both the Code Names and Descriptions. The Code Descriptions directly illustrate their functionality and role in the system, as fields are populated and tasks are performed.
Transaction Code: |
Defect Report Constraint |
General Description: |
Constraint Codes |
Are Authorization Steps Available? |
N |
Is System Notification Available? |
N |
TRAX Control Panel Path(s): |
System Transaction Code Explorer/Technical Records/ Defect Report Constraint |
Windows(s): |
w_mel_master_eu, w_defect_reports_eu, w_ac_controller_panel |
Related Switch(s): |
Not Applicable. |
Functions: |
Constraints may be assigned to MELs/Defects by the named entities in this Transaction Code. |
Available Functionality:
The Defect Report Constraint Transaction Codes allows users to assign Constraints to MELs and Defects for maintenance purposes. Constraint Codes can be assigned to an MEL via the MEL Master, Constraints Tab. These Constraints will then be associated with any Defect that the MEL is linked to. Users can also manually add Constraint Codes at the Defect level.
The following windows contain Constraint Code functionality:
- MEL Master, Constraints Tab
- Quick Entry Button, Constraint Codes Tab, via Quick Entry Button
- Defect Report Detail, Constraint Codes Tab
