The Assign Warranty Effectivity By Range button allows the user to apply effectivity to an aircraft by using the A/C, A/C S/N, Line, Variable Number, SGML Designator or IPC of the aircraft.

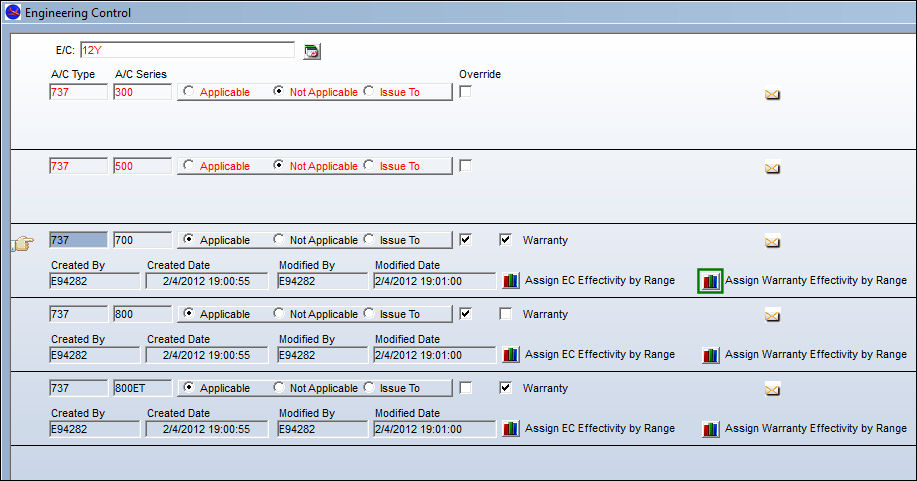

From the Engineering Control window, select the Assign Warranty Effectivity By Range button:

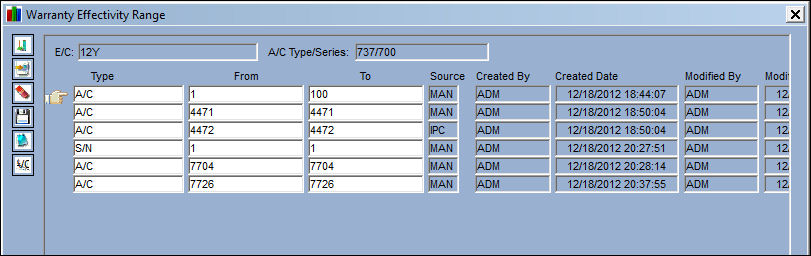

TRAX displays the Warranty Range window:

Select the New button to create a warranty range of effectivity for the E/C.

The following information/options are available in this window:
_____________________________________________________________________________________

Type Drop Down

Select the Range Type from the drop down menu. This option allows the user to easily enter a range without having to override the E/C to the A/C S/N level. For example, this option is used when an AD states a specific range that the AD is effective to. The user does not have to override the A/C Type/Series to manually select/deselect the necessary A/C Tail Numbers.

A/C - Apply effectivity by Aircraft. This information is pulled from the A/C Master, General tab, via the A/C Master.

S/N (Serial Number) - Apply effectivity by specific Aircraft Serial Number. This information is pulled from the A/C Master, General tab, via the A/C Master.

Line - This information is pulled from the A/C Master, Optional 2 tab, via the A/C Master.

Variable No - This information is pulled from the A/C Master, Optional 2 tab, via the A/C Master.

SGML Designator - This information is pulled from the A/C Master, Optional 2 tab, via the A/C Master.

IPC - This information is pulled from the A/C Master, Optional 2 tab, via the A/C Master.

From-To Range

Enter the range of aircraft with effectivity being applied or not.

Source

The way that the range was imported/created. This field is updated automatically. The available options are E/C, IPC, and MAN (Manual). The Source is 'MAN' when any part of the range was entered or altered manually.

Created By

The user who created the record.

Created Date

The date the record was created.

Modified By

The user who last modified the record.

Modified Date

The date the record was last modified.

_____________________________________________________________________________________

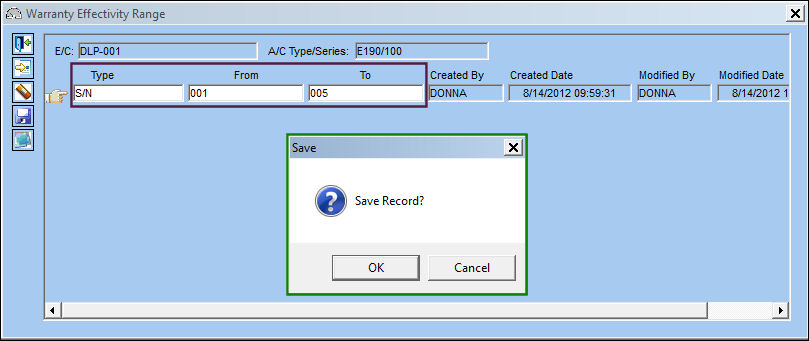

Select a Type from the Type drop down menu. In this example, the user has selected the S/N Type. Populate the From-To range and select the Save button. The Save prompt appears. Select 'OK'.

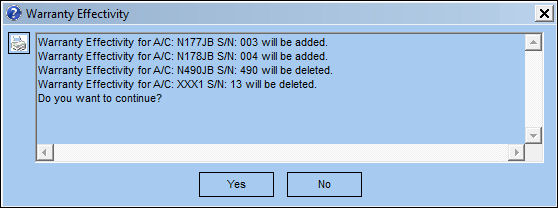

The following effectivity pop-up window will appear informing the user that all other effectivity for the specified E/C will be deleted. This pop-up only appears if the E/C has prior effectivity.

Select 'Yes' to continue.

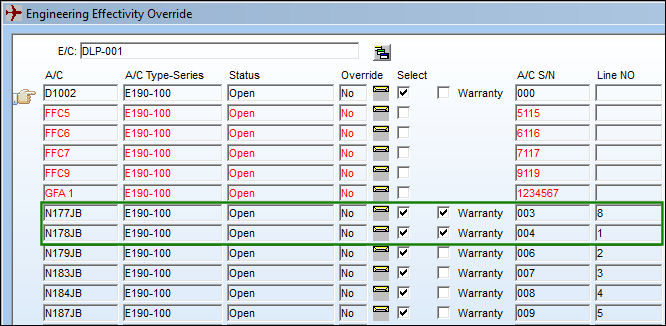

The Warranty Effectivity has been applied to the below aircraft:

To utilize Effectivity with multiple ranges, utilize the Individual A/C Selection button. Additionally, the Notes button allows information relevant to the record to be included.
