Creating a Graphic Repository, via Graphic Repository Doctype
A graphic repository was created to store the graphics for panels and zones. Having this repository makes it unnecessary to load graphics every time a revision is made to a TraxDoc.
The graphic name will be the concatenation of AC_TYPE + AC_SERIES + PANEL or ZONE. This will distinguish the graphics by fleet.

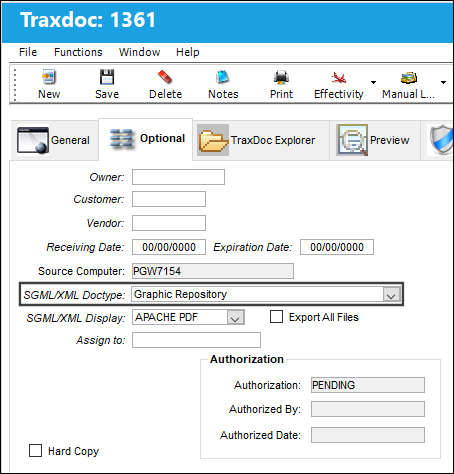

The following TraxDoc was created with the specified SGML/XML Doctype Graphic Repository.
Complete all required steps for loading the xml and images.

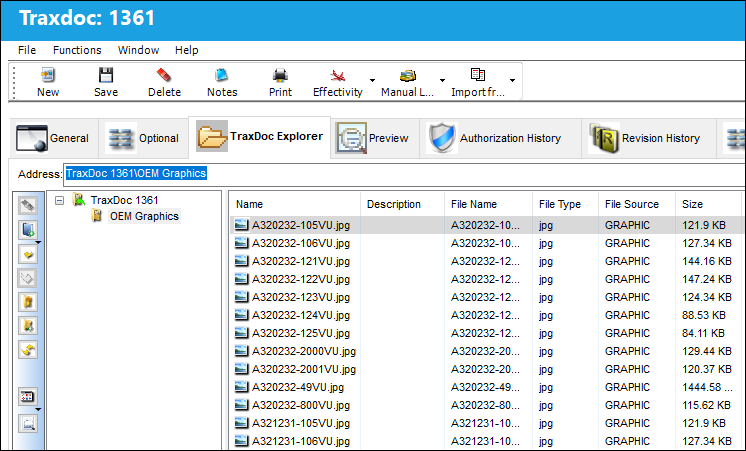

The graphics are loaded as shown below.

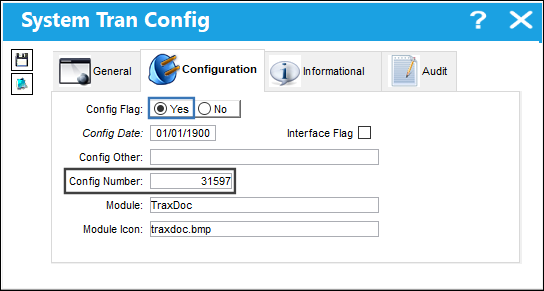

When switch  ADDPANGRAPH is set to Yes, the graphics for panels/zones will be displayed on printed Task Cards. These graphics will be stored in a TraxDoc repository that will be specified in the Config Number field. The repository (TraxDoc Number) is populated in the Config Number field.
|
