TRAX MANUALS > Settings > Settings Module > Settings, Update Menu > P/N (Part Number) > P/N Master Buttons > P/N UOM (Unit of Measure) Change Button, via P/N Master

The P/N UOM Change button is used to change the unit of measure for a part.

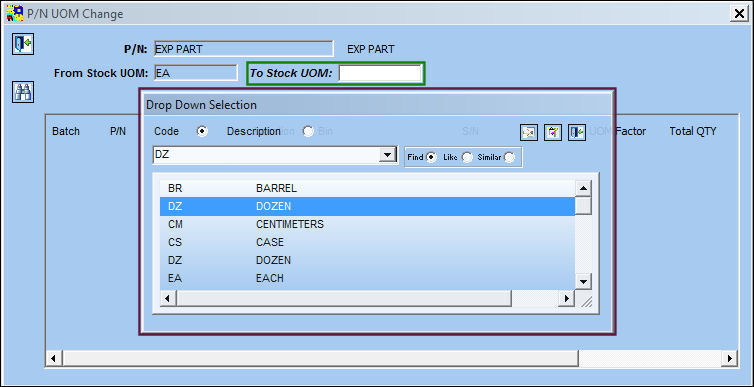

From the P/N Master, select the P/N UOM Change button. Right click in the To Stock UOM field. The Drop Down Selection appears. Select the desired UOM and right click to convert the unit of measure.

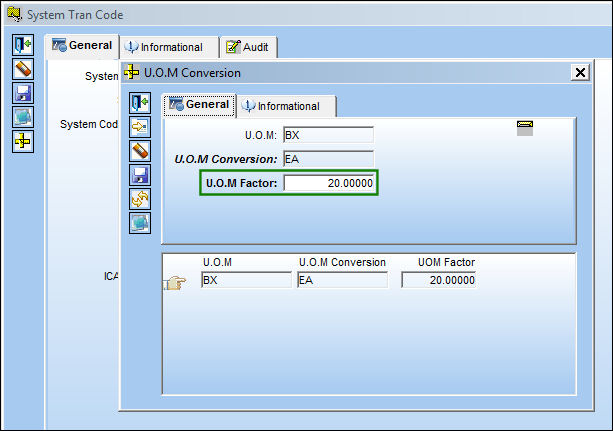

The System Trans Code Window will appear. Select P/N UOM Change button. The U.O.M Conversion Window appears. Convert the UOM factor and select the Save button. The Save prompt will appear. Select OK. Select the Exit button to exit the U.O.M Conversion Window. Save and exit the System Trans Code Window.

For additional information regarding the Unit of Measure System Transaction code, via the Settings Transaction code manual.

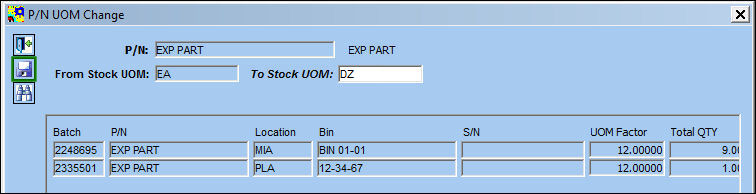

Upon exiting the System Trans Code window, the user will return to the P/N UOM Change Window. Right click in the To Stock UOM field. The available batch, P/N, location will appear. Select the Save button. The save prompt will appear. Select OK.

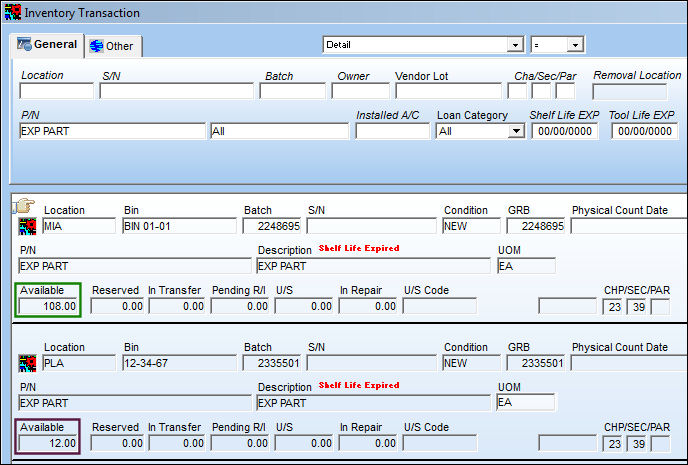

Go to Inventory/Update/Inventory Transaction to view the available quantity of the P/N.

After UOM conversion is complete, return to the Inventory Transaction Window and select the Find button. The available quantities have been changed accordingly.

Note: If a part number is selected that has no available quantities to convert, the following warning will appear:
