TRAX MANUALS > Settings > Settings Module > Settings, Update Menu > P/N (Part Number) > P/N Master Buttons > Issue With Button, via P/N Master

The Issue With button allows users to link two P/Ns so they can be issued together at the same time through the Picklist Creation and Picklist Issue functionality. When issuing a part (via Manual Issue, Express Issue, Express Issue/Auto) any linked 'Issue With' parts will be listed as additional information but will not automatically be included in the part issue.

From the P/N Master window, select a P/N to be issued simultaneously with another P/N. Select the Issue With button via the Interchangeable Multi button.

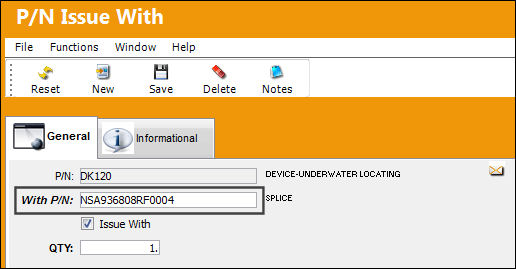

The following information/options are available in this window:
_____________________________________________________________________________________

With P/N

The P/N to be issued with the initial P/N.

Issue With checkbox

When selected, indicates that the 'With P/N' will automatically be issued with the initial P/N through the Picklist Creation and Picklist Issue functionality. When issuing a part (via Manual Issue, Express Issue, Express Issue/Auto) any linked 'Issue With' parts will be listed as additional information. When unselected, keeps the 'With P/N' in P/N Issue With records, but does not automatically issue it with the initial P/N in any transactions.

Qty

Number/Quantity of the 'With P/N' being issued with the initial P/N.

_____________________________________________________________________________________

The P/N Issue With, Informational Tab and the Notes button are available to view and/or add information relevant to the record.

Example: Picklist Creation

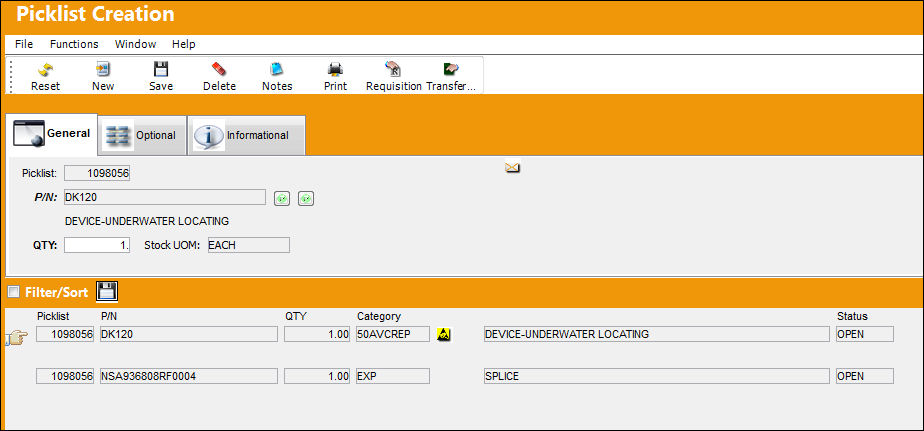

Notice for a Picklist Creation, when adding the above P/N to a Picklist, the 'With P/N' is automatically included in the Picklist.

Following the Picklist Creation, the Issue With part is included in the Picklist Issue.

Example: Manual Issue

Locate the initial part in Inventory Transaction and select the Manual Issue button.

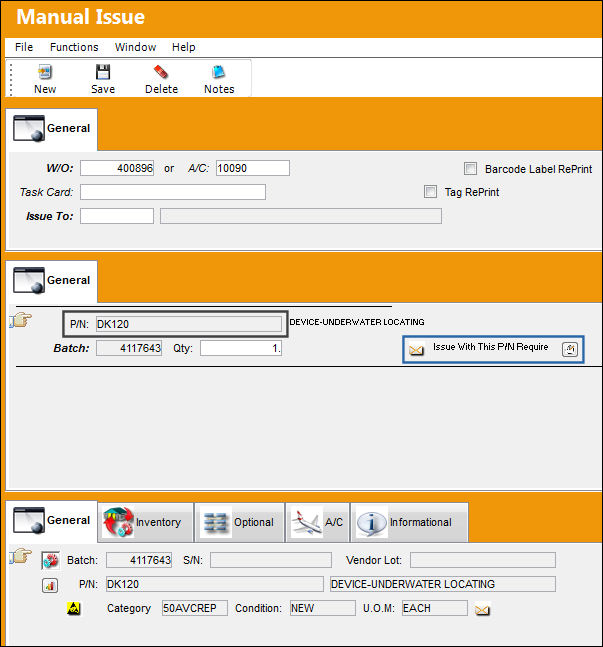

The Manual Issue window appears. Once a Work Order is selected to issue the P/N to, the Issue With This P/N Require button appears. Select the Issue With This P/N Require button to view the linked P/N.

Note: The linked P/N will not automatically be issued along with the Manual Issue part. This is only informational, hence the window appears in query mode.

Note: The following example shows the functionality of the Issue With for a Manual Issue, but shows the same functionality for an Express Issue, Express Issue/Auto, Picklist Creation, and Picklist Issue.

The P/N Issue With window appears as a query informing the user that P/N 00-0121-3-2281 has been set up to be issued with P/N 0-36-72-01 (but does not include the linked part in the issue automatically):
