TRAX MANUALS > Production > Production Module > Production, Update Menu > W/O > Work Order Buttons > Non-Routine Button, via Work Order

If any damage or defect is discovered on the aircraft while working on the scheduled W/O Task Card, a Non-Routine Task Card can be created to address the issue. These N/R Task Cards work similarly to Engineering's scheduled Task Cards in that required materials, labor, and finances can be tracked, but N/R Task Cards are considered unplanned maintenance events.

This damage may be discovered at the beginning of a check. During the check, some routine Task Cards may find specific problems that may need some rectification action, which must be recorded on another card. These Non-Routine Task Cards are allocated a sequential number unique to each Work Order for tracking purposes. They do not have their own 'named' reference as the Task Cards do.

Non-Routine Task Cards can be added and created from other places within the System (not necessarily just from this window). An example of this is when the Non-Routine Task Cards are created in the Work In Progress Window and the Defect Report Window.

Users may add Non-Routine Task Cards to this list.

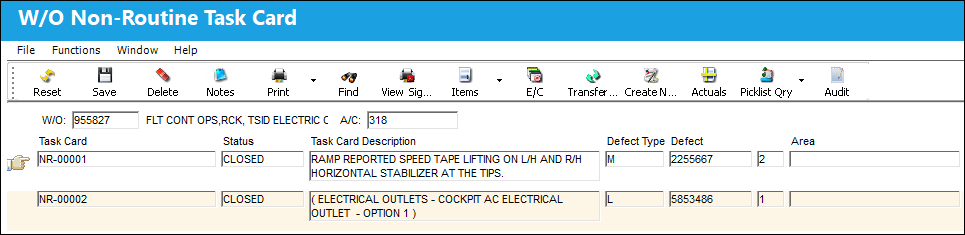

W/O Task Card Layout:

The W/O Non-Routine Task Card window divides the Task Card information into a header and a detail window.

When the Non-Routine Task Card button is selected from the Work Order window, the W/O Non-Routine Task Card header window displays header information for every N/R Task Card associated to the W/O.

Note: The Work Order Description has been added to the W/O Non-Routine Task Card window.

When a N/R Task Card is selected from the header window, the detail window comes up with more N/R Task Card information and tabs.

The following tabs and buttons are available.
