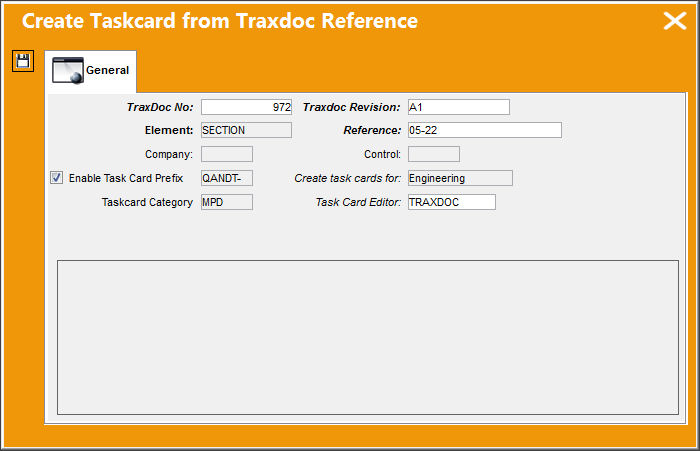

The Create Task Card from Traxdoc Reference button allows the user to create Task Cards from a specific TraxDoc of choice. Select or enter the specific TraxDoc Number in the TraxDoc Number field.

The following information/options are available in this window:
_____________________________________________________________________________________

TraxDoc No.

The TraxDoc Document ID number, which is automatically generated by the system.

Note: This number will auto populate the Traxdoc Revision field and all applicable fields.

Traxdoc Revision

The document’s current revision number. Each TraxDoc can have multiple revisions as the data/records created through the TraxDoc will need to be updated (revised) regularly depending on the requirements of the aircraft manufacturer, regulatory agency, airline, etc.

Element

The type of record being referenced. This field is not editable and will populate if applicable.

Reference (Manual)

A reference to a specific section of the SGML manual that was imported through the TraxDoc. Select into the Manual Reference field for the References Search.

Company

The Company used to auto generate the Task Card reference. This field only appears when G/L Interface Switch COMPANYMULTI is set to Yes. When this field is populated, only those aircraft with the same G/L Company via the A/C Master, Other 1 tab can be made effective to the T/C. This field is not editable and will populate if applicable.

Control

A Control Category code that will populate the Zone or Panel located on a specific Type/ Series (if applicable).

Enable Task Card Prefix checkbox

Select this checkbox to allow a prefix to be assigned to Task Cards being imported. This field is not editable and will populate if a prefix has been assigned to all imported Task Cards through the specified TraxDoc (if applicable).

Create Task Cards for

Select the module required to load the SGML Task Card to: Engineering, Shop, GSE. This field is not editable and will populate from the Task Card created from the specified TraxDoc (if applicable).

Task Card Category

The Task Card's Category, as defined in Task Card Category transaction code via the Engineering Transaction Codes. Task Card Authorization Steps are defined in System Transaction Codes by Task Card Category. This field is not editable and will populate from the Task Card created from the specified TraxDoc (if applicable).

Task Card Editor

Select the editor type to create the format of the Task Card. The user may select from the following options:

• TRAXDOC
• TASKCARD
