PRINTDIR - Set the path for the Work Pack Print printer job program to write the result reports

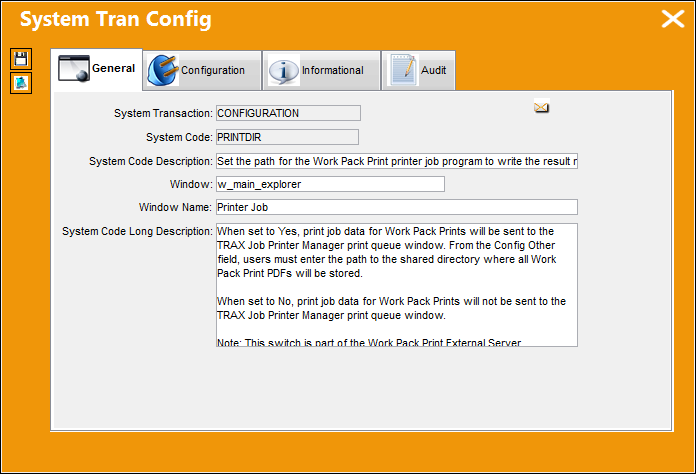

Set the path for the Work Pack Print printer job program to write the result reports

Affected Window: w_main_explorer

This switch is part of the Report Server functionality. The external report server must be set up prior to using this switch. For detailed information refer to the Work Order Pack Print - Report Server via the Production Training Manual.

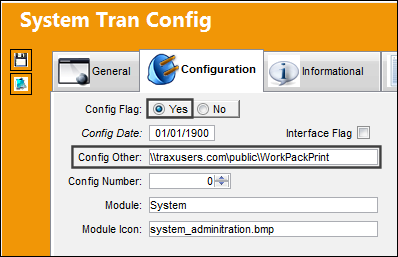

Switch Set to Yes:

When set to Yes, print job data for Work Pack Prints will be sent to the TRAX Job Printer Manager print queue window. From the Config Other field, users must enter the path to the shared directory where all Work Pack Print PDFs will be stored.

Note: This switch must be set to Yes in order to connect to the Work Pack Print External Server functionality.

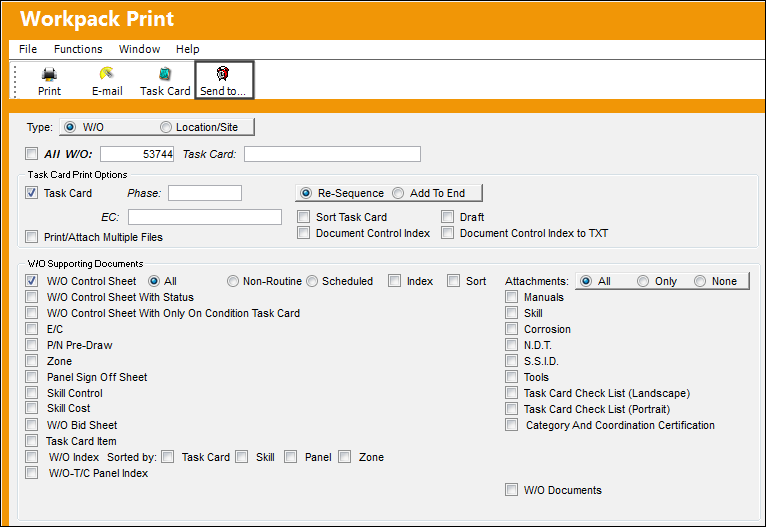

From the Workpack Print window, notice that the Send to Queue button is available. Select this button once the print is ready to be requested.

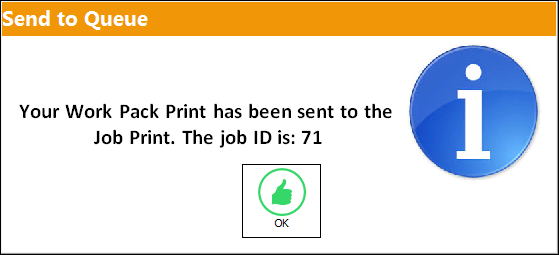

Once requested, the following prompt comes up. Notice the unique ID number assigned to each job.

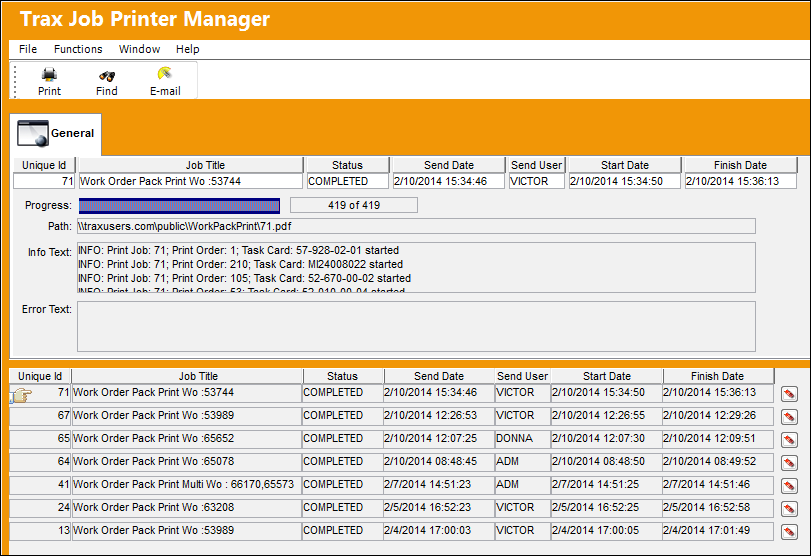

The print job's details can be seen from the System Administration/ Update/ Trax Job Printer Manager queue window. All Work Pack Print jobs are listed from this window, including the current status.

For more information on this window refer to the Trax Job Printer Manager via the System Administration Training Manual.

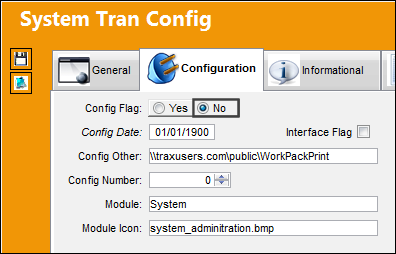

Switch Set to No:

When set to No, print job data for Work Pack Prints will not be sent to the TRAX Job Printer Manager print queue window.

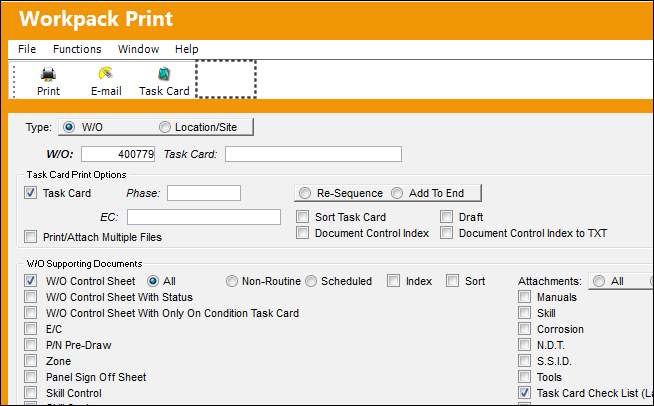

Notice that the Send to Queue button is not available from the Workpack Print window.
