TRAX MANUALS > Inventory > Inventory Module > Inventory, Explorer Menu > Part Number Explorer > S/N View, via P/N Explorer

S/N View, via P/N Explorer

The user may view parts in inventory using the P/N Explorer's S/N View.

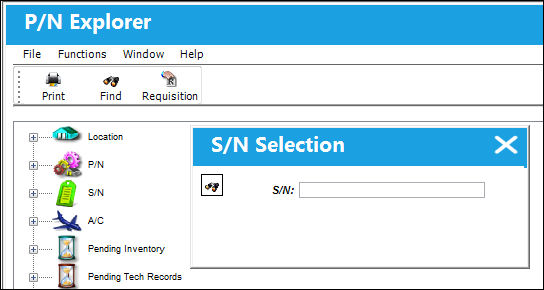

By selecting the Expand icon next to the S/N View, TRAX displays the following pop-up window:

Right click in the S/N field to access the pop-window where a P/N S/N may be selected, or enter the S/N desired.

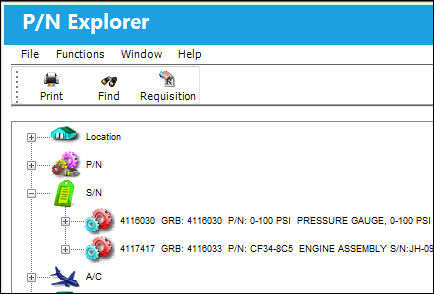

Select the Find button and TRAX displays the following when the P/N S/N is located.

Note: Users can also select the "Enter/Return" button on the computer's keyboard to select the entered S/N.

At the end of the informational line item is either the Company field or the Owner field. If the unit has an Owner, the Owner will be shown. If the unit does not have an Owner, then the Company will be shown.

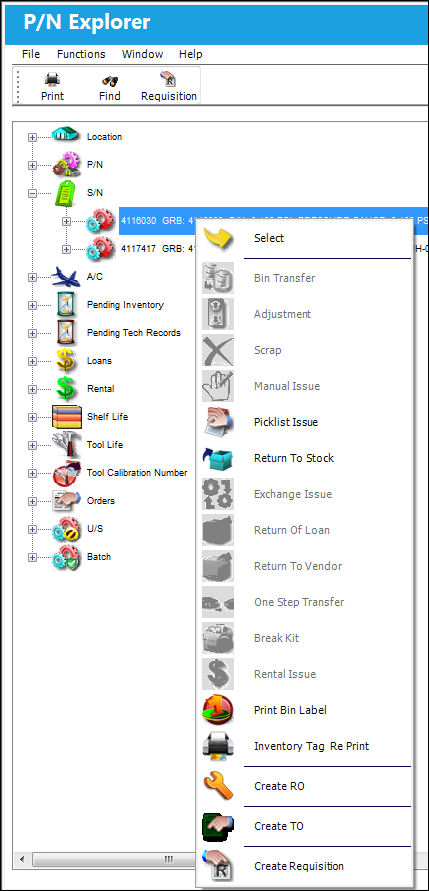

Right-click on the desired P/N S/N to see the options available for that part (actions that may be taken):

TRAX displays the following pop-up menu:

Select the appropriate action to be taken as necessary. For information on the above buttons, refer to the P/N Explorer Buttons, via the P/N Explorer.
