Unserviceable View, via P/N Explorer

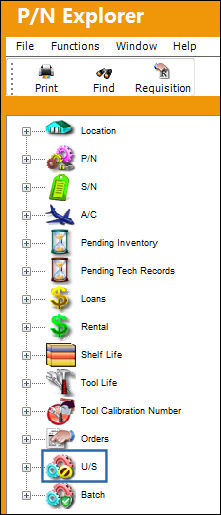

The user may view parts in inventory using the P/N Explorer's Unserviceable (U/S) view:

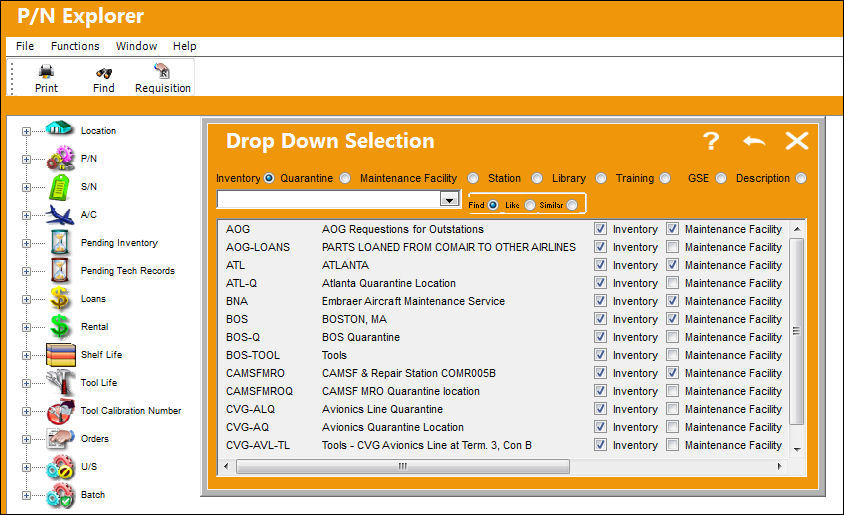

By double-clicking on the U/S view, TRAX displays a pop-up search window where the desired part may be selected (by location).

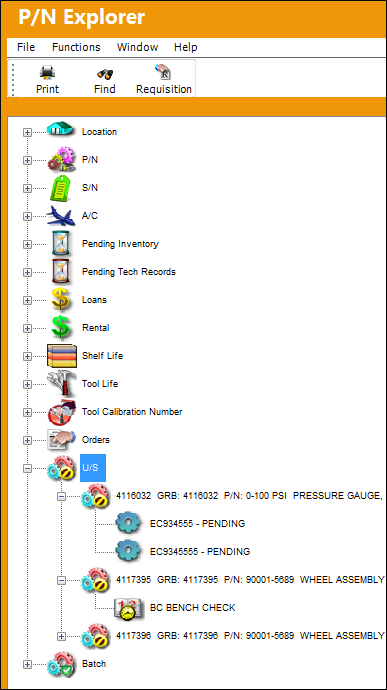

If the part is in Unserviceable status, then TRAX places the part under this view as follows:

At the end of the informational line item is either the Company field or the Owner field. If the unit has an Owner, the Owner will be shown. If the unit does not have an Owner, then the Company will be shown.

If the search does not locate an U/S part, then TRAX re-displays the U/S View without any changes.

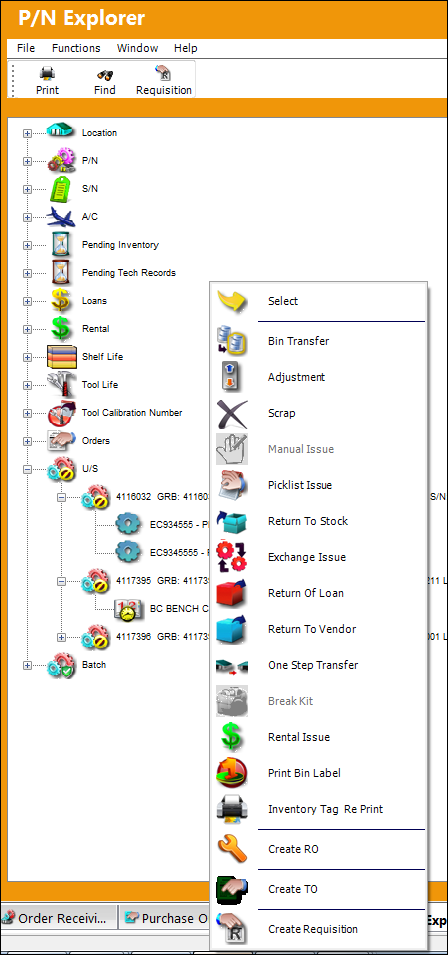

Right-click on any of the unserviceable parts to access additional options as shown below:

For information on the above buttons, refer to the P/N Explorer Buttons, via the P/N Explorer.
