Pending Technical Records View, via P/N Explorer
The user may view parts in Technical Records that are pending, using the P/N Explorer's Pending Tech Records view:

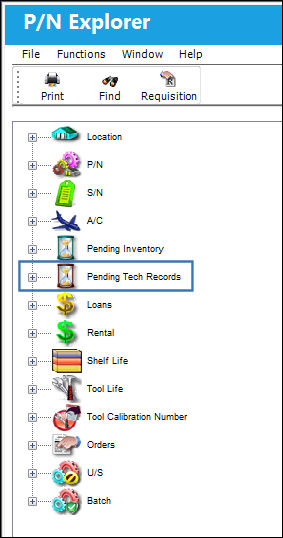

Click on the Expand
button next to the Pending Tech Records option, and TRAX displays the following:

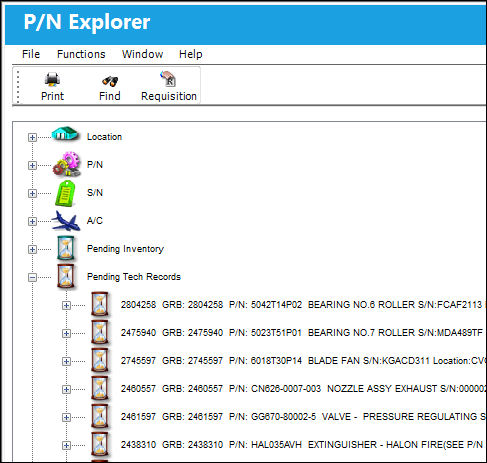

The items listed in the above screen are those parts pending Technical Records (e.g. A/C P/N install/remove, etc.).
At the end of the informational line item is either the Company field or the Owner field. If the unit has an Owner, the Owner will be shown. If the unit does not have an Owner, then the Company will be shown.

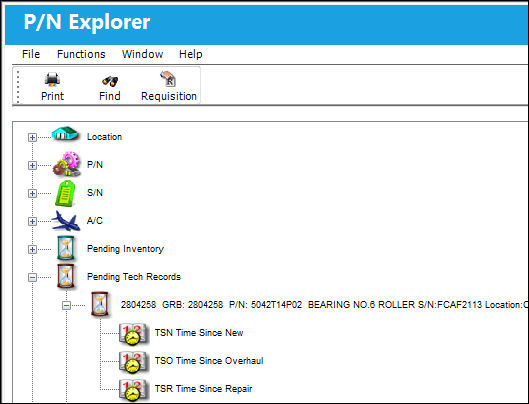

By clicking on the Expand button to select a P/N, the related E/C and/or P/N Control information for the selected part is displayed:

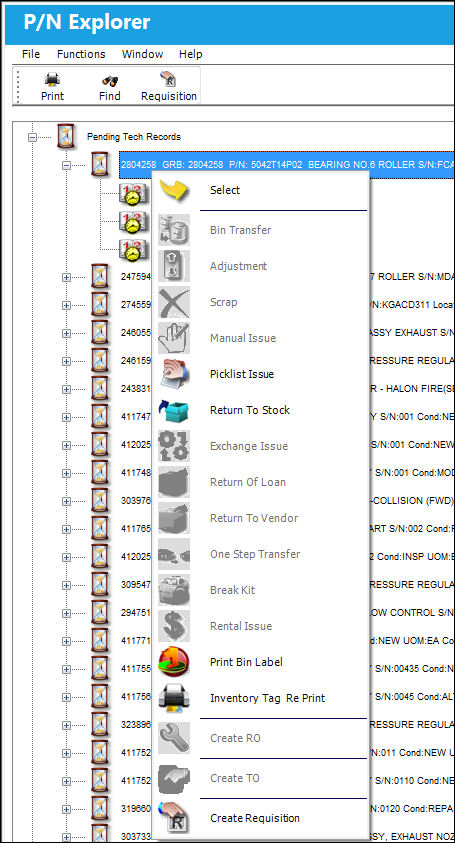

Right click on any of the P/Ns that are pending Technical Records to access additional options as shown below:
For information on the above buttons, refer to the P/N Explorer Buttons, via the P/N Explorer.

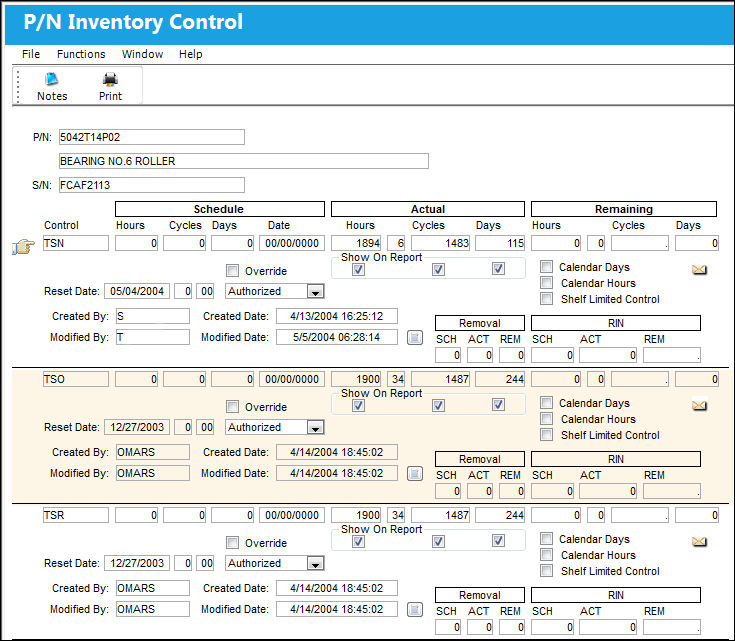

By right-clicking on the P/N Control, TRAX displays the P/N Control Screen, as follows:

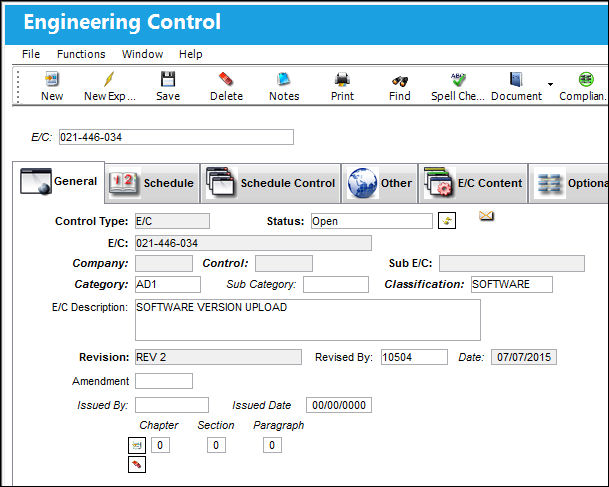

By right-clicking on the E/C, TRAX displays the E/C Screen as follows:
