A/C View, via P/N Explorer

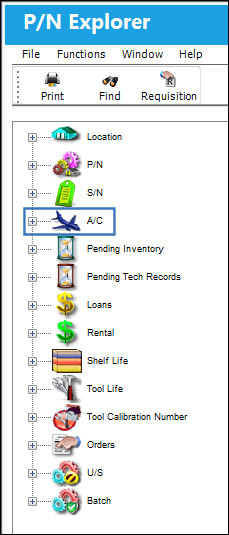

The user may view parts in inventory using the P/N Explorer's A/C View:

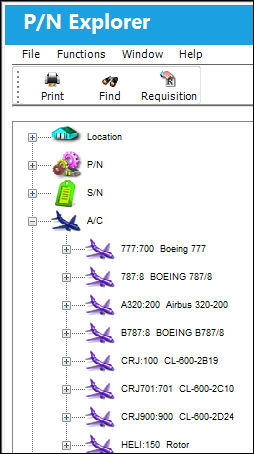

By clicking on the Expand button next to the A/C View, TRAX displays A/Cs that are currently in TRAX (A/C Type and Series - in purple):

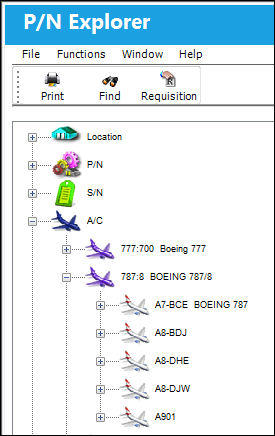

By clicking on the Expand button next to the A/C Types and Series, TRAX displays individual A/Cs in the A/C Master (in red):

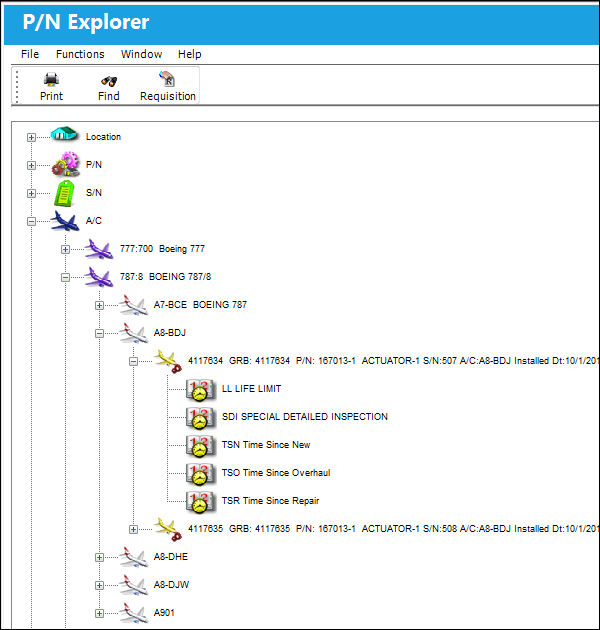

By clicking on the Expand button next to the A/C (per the A/C Master), TRAX displays the following P/N information:

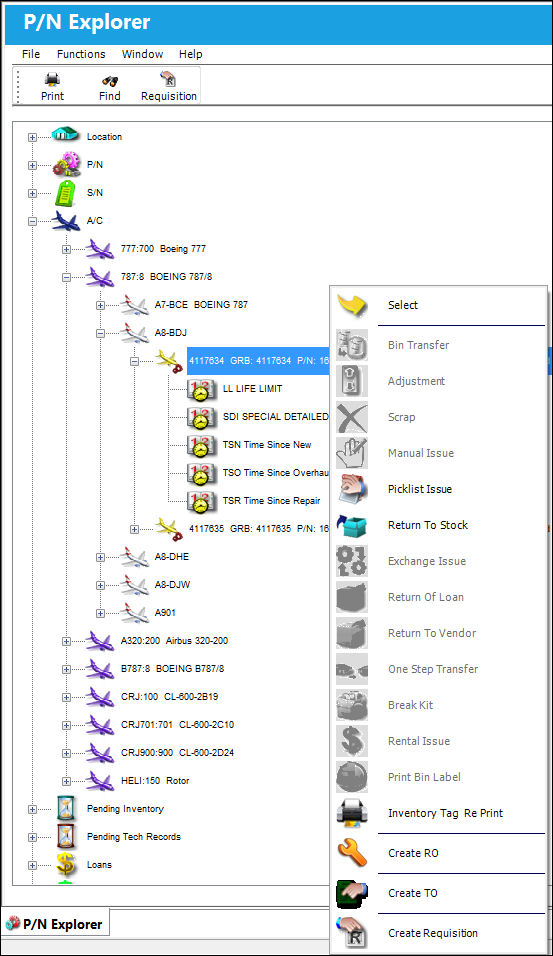

Right click on a P/N that is installed on an A/C to access additional options as shown below:

For information on the above buttons, refer to the P/N Explorer Buttons, via the P/N Explorer.

Note: The above screen shows both installed parts (yellow icons) as well as P/N controls for the listed A/C.

At the end of the informational line item is either the Company field or the Owner field. If the unit has an Owner, the Owner will be shown. If the unit does not have an Owner, then the Company will be shown.

Installed Software Configurations

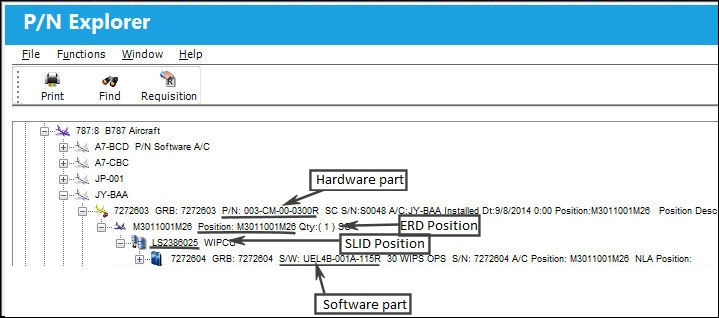

All installed P/N Software components are displayed for each aircraft by A/C P/N Position. Each software component is installed under its corresponding hardware component. The hardware part is physically installed on the ERD poition on the aircraft while the software is digitally installed on the SLID location.

This installed software configurations can also be viewed through the P/N Software Configuration on A/C Button of the P/N Software Configuration window.

For more information on this software functionality refer to the P/N Software Configuration section of the Settings Training Manual.
