TRAX MANUALS > Settings > Settings Module > Settings, Update Menu > Company Profile > Company Profile Buttons > SPEC 2000 Button, via Company Profile

Select the SPEC2000 button to set up SPEC2000 configuration for TRAX Interface SPEC2000 Order and Administration Project.

The SPEC2000 button is an Interface related functionality. For additional information, refer to your TRAX Interface department.

From the Company Profile window, select the SPEC2000 button.

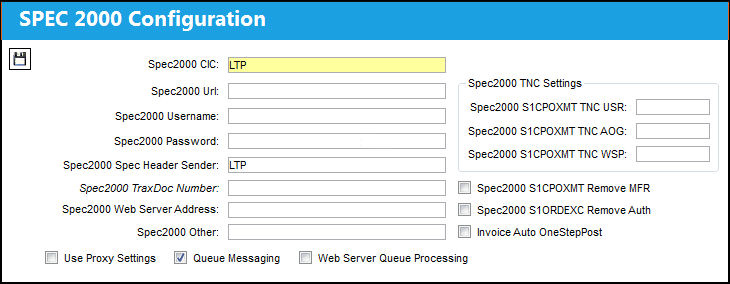

TRAX displays the SPEC 2000 Configuration window:

The following information/options are available in this window:
_____________________________________________________________________________________

Spec2000 CIC

This is the Customer Identification Code.

Spec2000 URL

The address of the website that provides Spec2000 Exchange services, for example AeroXchange website or your middleware server.

Spec2000 Username

The Spec2000 Username. This is used for authentication/authorization purposes.

Spec2000 Password

The Spec2000 Password. This is used for authentication/authorization purposes.

Spec2000 Spec Header Sender

This is the identifier for the TRAX system to other Spec2000 systems.

Spec2000 TraxDoc Number

This is the TraxDoc holding stylesheet for transformation of Spec2000 to Airbus format.

Spec2000 Web Server Address

This is the URL of the Tomcat server which sends Spec2000 messages out to vendors.

Spec2000 Other

Enter any addition information. This is a free text field and is informational only.

Use Proxy Settings checkbox

If selected, Spec2000 messages will be sent to ROS message queues.

Queue Messaging checkbox

When selected, Spec2000 messages will be sent to Spec2000 message queues.

Web Server Queue Processing checkbox

When selected, then the message queues will be processed by Trax Interface to be deployed through the Tomcat webserver.

Spec2000 Proxy Host

This is the IP/hostname for the Proxy Server.

Spec2000 Proxy Port

This is the Port number on the Proxy Server.

Spec2000Proxy Username

This is the Username for authentication to the Proxy Server.

Spec2000 Proxy Password

This is the Password for authentication to the Proxy Server.

Spec2000 S1CPOXMT TNC USR

When this value is 'Yes', the first two digits of TNC for priority USR will be set to this value.

Spec2000 S1CPOXMT TNC AOG

When this value is 'Yes', the first two digits of TNC for priority AOG will be set to this value.

Spec2000 S1CPOXMT TNC WSP

When this value is 'Yes', the first two digits of TNC for priority WSP will be set to this value.

Spec2000 S1CPOXMT Remove MFR checkbox

When selected, the MFR element in s1cpoxmt will be removed.

Spec2000 S1CPOXMT Remove Authorization checkbox

When selected, upon receiving an slordexe message, the authorization to the Order Detail will be reset. The user will then be able to re-authorize the order.

_____________________________________________________________________________________
