TRAX MANUALS > Settings > Settings Module > Settings, Update Menu > Company Profile > Company Profile Buttons > EOS Button, via Company Profile

Select the EOS (Exchange Order Service) button to set up TRAX Interface EOS.

From the Company Profile window, select the EOS button.

The EOS button is an Interface related functionality. For additional information, refer to your TRAX Interface department.

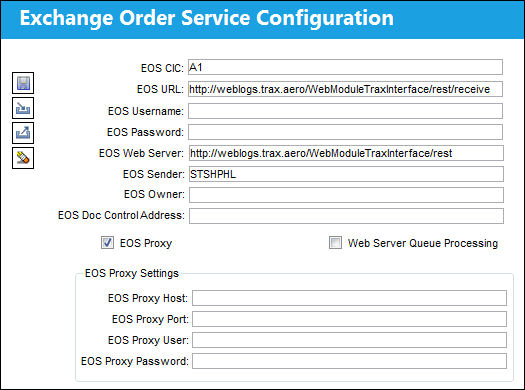

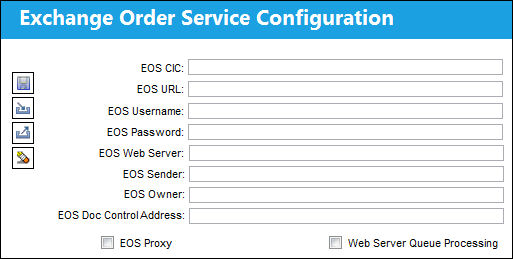

TRAX displays the ROS Config File window. Select the Import File button to populate the following fields with the applicable configuration file.

The following information/options are available in this window:
_____________________________________________________________________________________

EOS CIC

This is the customer Identification Code.

EOS URL

This is the address of the website that provides EOS Message Exchange services, for example AeroXchange website or your middleware server.

EOS Username

This is the EOS Username. This is used for authentication/authorization purposes.

EOS Password

This is the EOS Password. This is used for authentication/authorization purposes.

EOS Web Server

This is the URL of the Tomcat server which sends EOS messages out to vendors.

EOS Sender

This is the Identifier for the TRAX system to other EOS systems.

EOS Proxy checkbox

Select this checkbox to display proxy configuration.

Web Server Queue Processing checkbox

If selected, the message queues will be processed by TRAX Interface and deployed through the Tomcat webserver.

EOS Proxy Host

This is the IP/hostname for the Proxy Server.

EOS Proxy Port

This is the Port number on the Proxy Server.

EOS Proxy User

This is the Username for authentication to the Proxy Server.

EOS Proxy Password

This is the Password for authentication to the Proxy Server.

_____________________________________________________________________________________

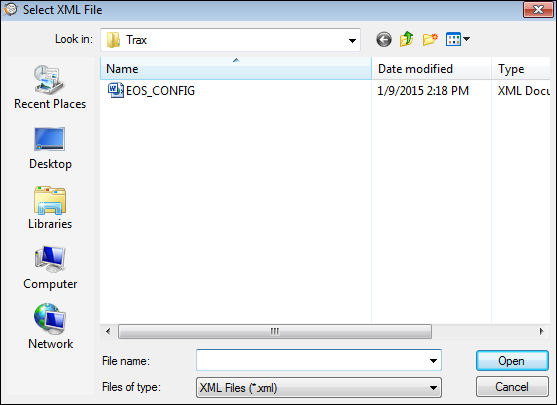

The Select XML File pop up appears. Select an XML file and then 'Open'.

Select the Save button.

The EOS tab is now visible in the Vendor Master.

For additional information, refer to the Vendor Master, EOS tab, via Vendor Master which can be found in the Settings Training Manual.
