WOCONSUMBC - Enables/Disables Barcode in W/O Control Summary Print

TRAX MANUALS > Settings > Settings Switches > WOCONSUMBC - Enables/Disables Barcode in W/O Control Summary Print

WOCONSUMBC - Enables/Disables Barcode in W/O Control Summary Print

Enables/Disables Barcode in W/O Control Summary Print

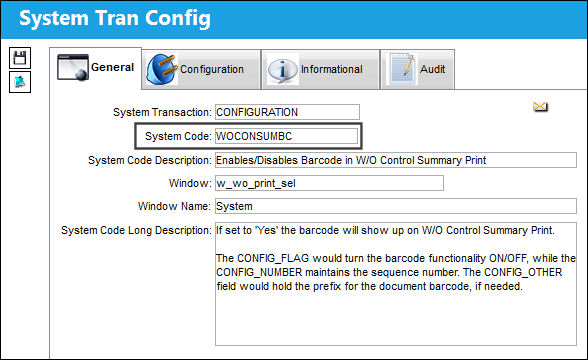

Affected Window: w_wo_print_sel

12_WOCONSUMBC(1)

Note: This switch was created for a specific customer. For more information, refer to the TRAX administrator.

Switch Set to Yes:

When set to Yes, the barcode will show up on the W/O Control Summary Print.

12_Settings_Yes

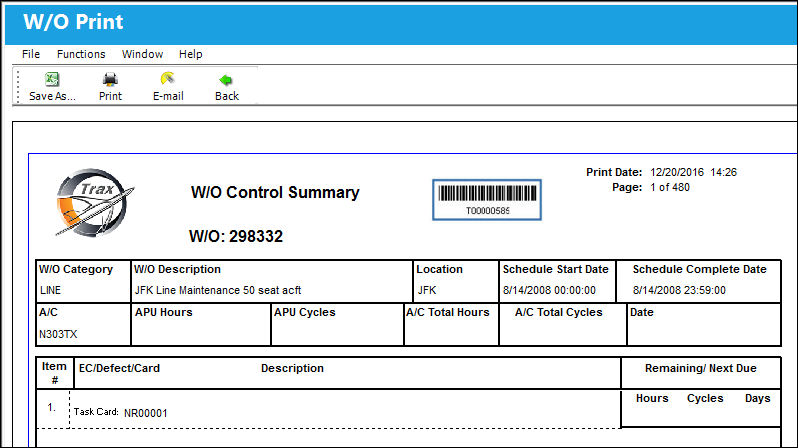

The following W/O Control Print has been generated. Notice the barcode does appear.

12_WOCONSUMBC_YES(1)

Switch Set to No:

When set to No, the barcode will not show up on the W/O Control Summary Print.

12_Settings_No

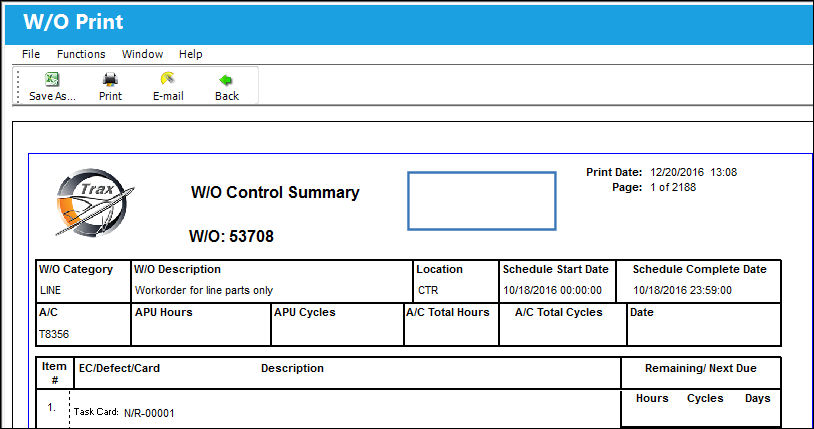

The following W/O Control Print has been generated. Notice the barcode does not appear.

12_WOCONSUMBC_NO(1)

Additional Functionality:

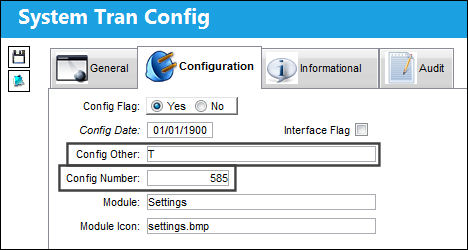

The Config Number maintains the sequence number and the Config Other field would hold the prefix for the document barcode, if needed.

12_WOCONSUMBC_ADD(1)

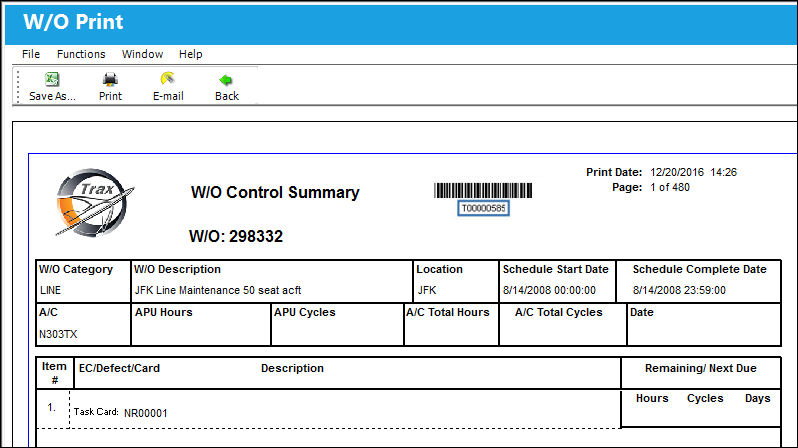

The following W/O Control Print has been generated. Notice the prefix and sequence number of the documented barcode is taken from the Config Other and Config Number.

12_WOCONSUMBC_ADD(2)
