ATATYPESER - A/C Type/Series ATA Specification Applicability

TRAX MANUALS > Settings > Settings Switches > ATATYPESER - A/C Type/Series ATA Specification Applicability

ATATYPESER - A/C Type/Series ATA Specification Applicability

A/C Type/Series ATA Specification Applicability

Affected Windows: w_ata_chapter_section_alert; w_defect_reports

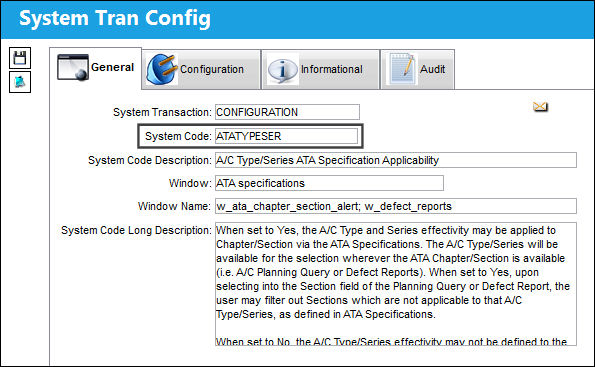

125_ATATYPESER(1)

Switch Set to Yes:

When set to Yes, the A/C Type and Series effectivity may be applied to Chapter/Section via the ATA Specifications. The A/C Type/Series will be available for the selection wherever the ATA Chapter/Section is available (i.e. A/C Planning Query or Defect Reports). When set to Yes, upon selecting into the Section field of the Planning Query or Defect Report, the user may filter out Sections which are not applicable to that A/C Type/Series, as defined in ATA Specifications.

12_Settings_Yes

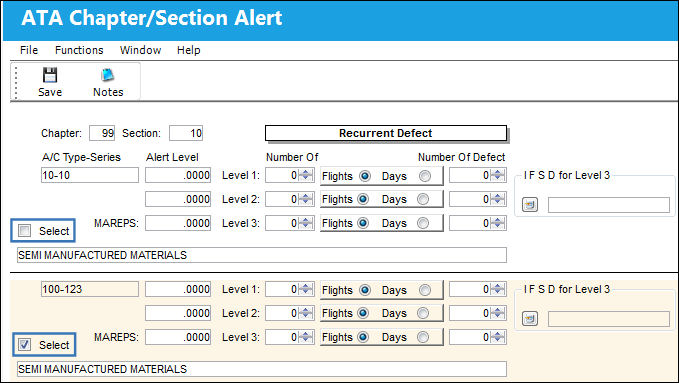

The following A/C Chapter/Section Alert is able to have effectivity set for specific A/C Type/Series through the Select checkbox.

125_ATATYPESER(3)

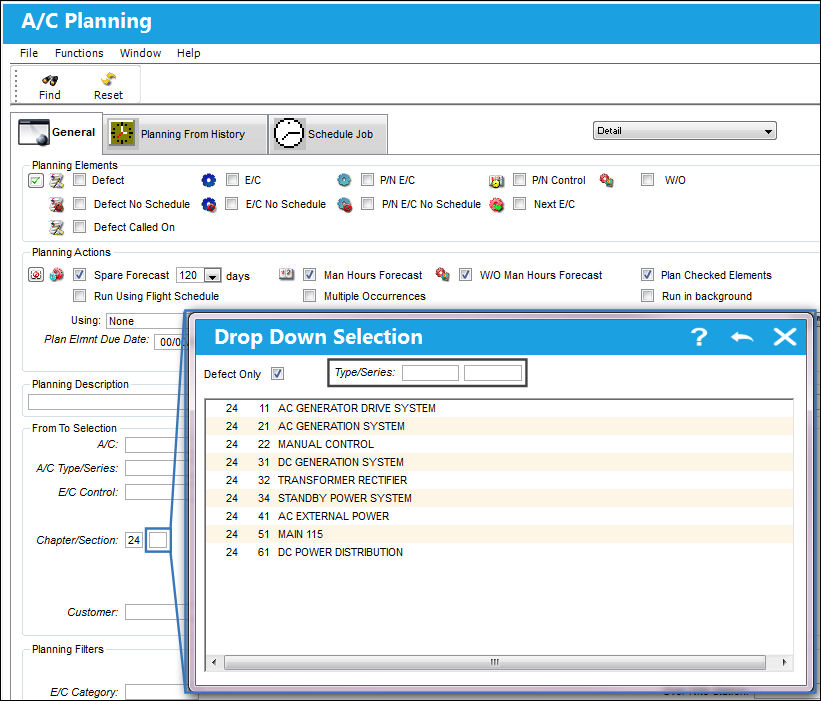

Additionally, the Type/Series filter is available in the A/C Planning Query window upon selecting into the Section field.

125_ATATYPESER(4)

Switch Set to No:

When set to No, the A/C Type/Series effectivity may not be defined to the Chapter/Section via the ATA Specifications. Additionally, the user cannot filter out Sections which are not applicable to an A/C Type/Series through selecting into the Section field of the A/C Planning Query or Defect Report.

12_Settings_No

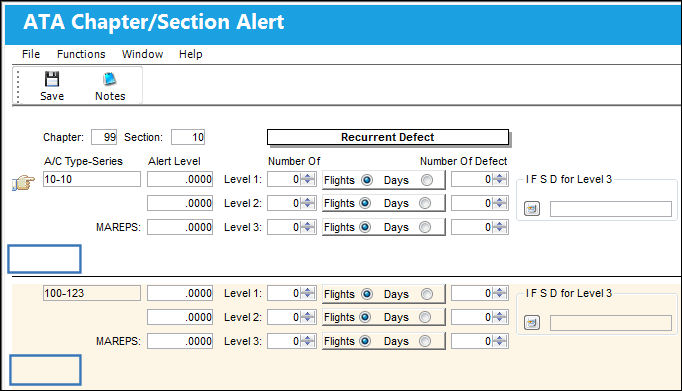

The following A/C Chapter/Section Alert is not able to have effectivity set for specific A/C Type/Series.

125_ATATYPESER(6)

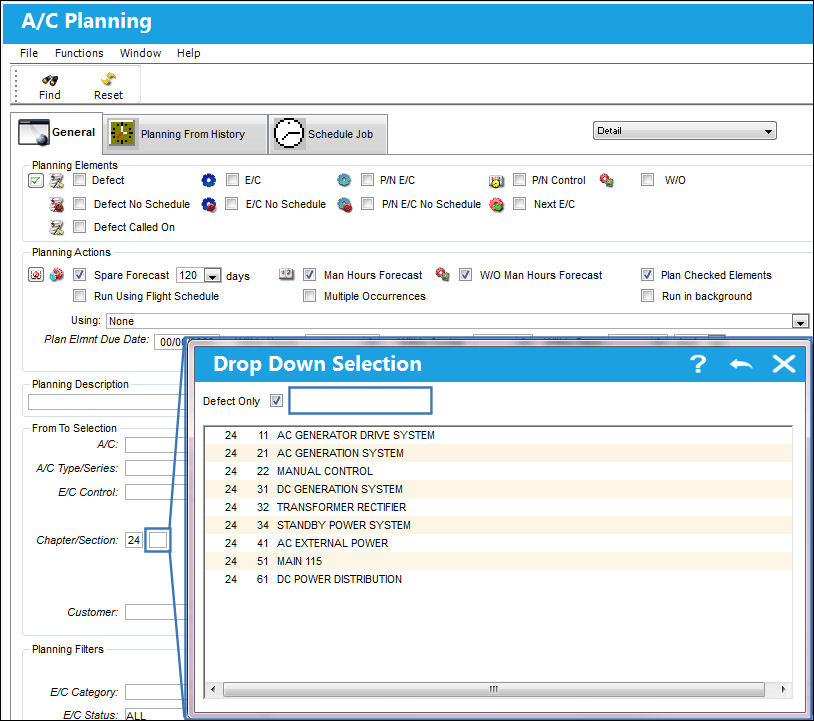

Additionally, the Type/Series filter is unavailable in the A/C Planning Query window upon selecting into the Section field.

125_ATATYPESER(7)
