SUPERSEDPN - Superseded By Interchangeable Validation

TRAX MANUALS > Settings > Settings Switches > SUPERSEDPN - Superseded By Interchangeable Validation

SUPERSEDPN - Superseded By Interchangeable Validation

Superseded By Interchangeable Validation

Affected Window: w_pn_master_eu

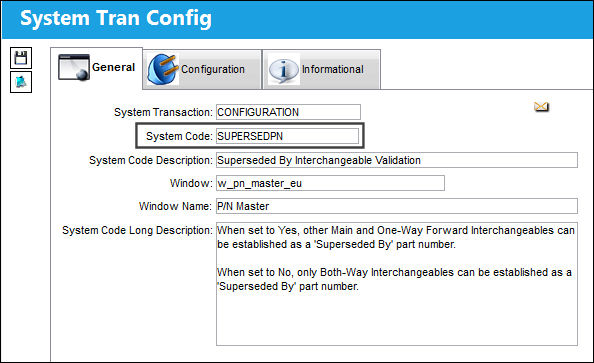

12_SUPERSEDPN(1)

Switch Set to Yes:

When set to Yes, other Main and One-Way Forward Interchangeables can be established as a "Superseded By" part number.

12_Settings_Yes

Set Up:

P/N	Relationship
119571-PN	Main P/N
119571-INT	Both-Way Interchangeable P/N
119571-OWF	Main One-Way Forward of 119571-PN
119571-B	Main P/N with no relationship to any other P/N

Using 119571-PN as the Main P/N, in the P/N Superseded By field, populate a Both-Way Interchangeable P/N and select the Save button.

The system allows the Both-Way Interchangeable to be saved.

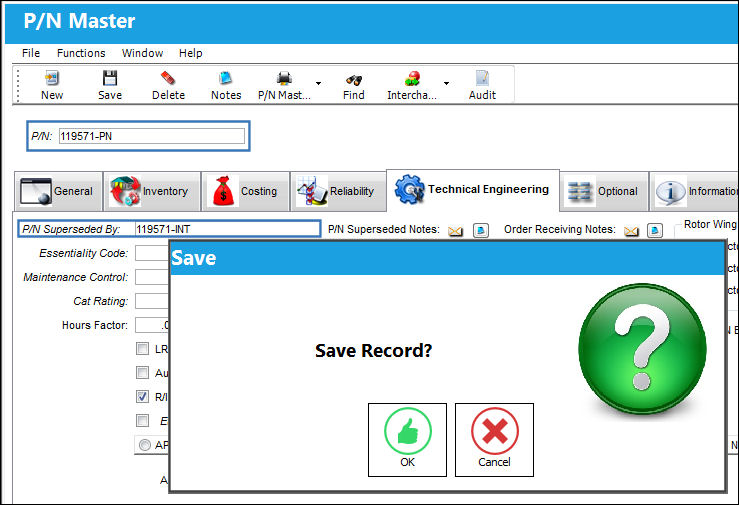

12_SUPERSEDPN_YES(1)

The system allows the One-Way Forward to be saved.

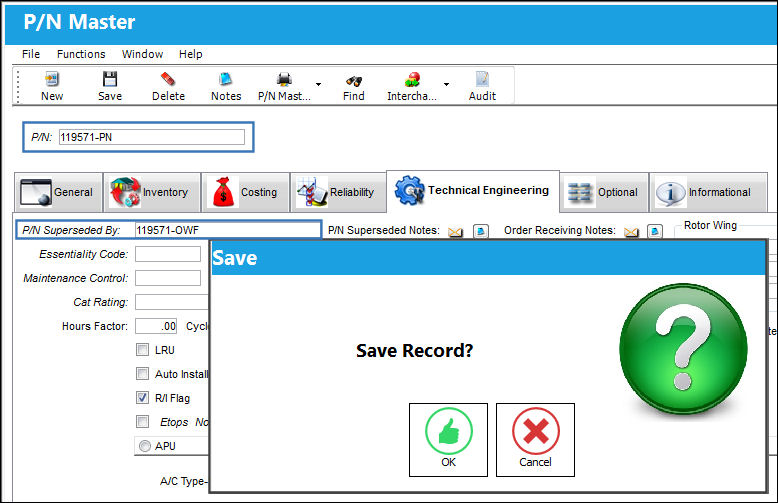

12_SUPERSEDPN_YES(2)

The system allows the separate Main P/N to be saved.

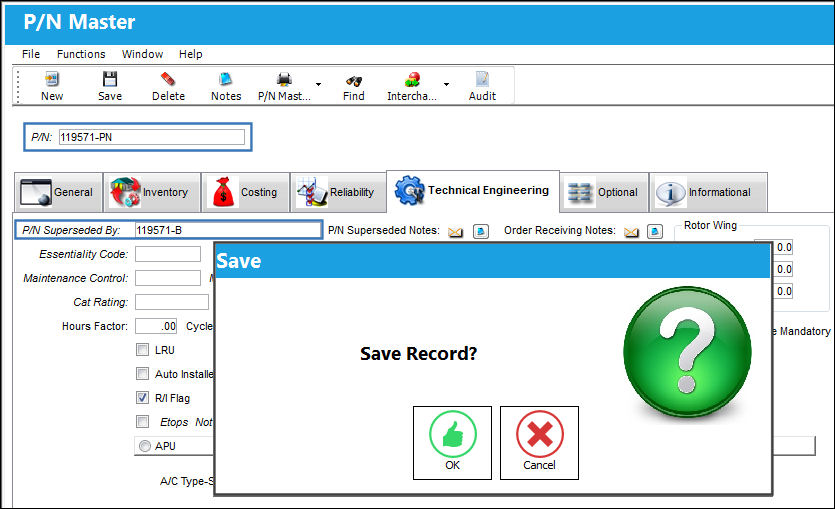

12_SUPERSEDPN_YES(3)

Switch Set to No:

When set to No, only Both-Way Interchangeables can be established as a "Superseded By" part number.

12_SystemAdministration_No

Using 119571-PN as the Main P/N, in the P/N Superseded By field, populate a Both-Way Interchangeable P/N and select the Save button.

The system allows the Both-Way Interchangeable to be saved.

12_SUPERSEDPN_YES(1)

Using the same Main P/N, populate a One-Way Forward P/N and select the Save button.

The system does not allow the One-Way Forward to be saved.

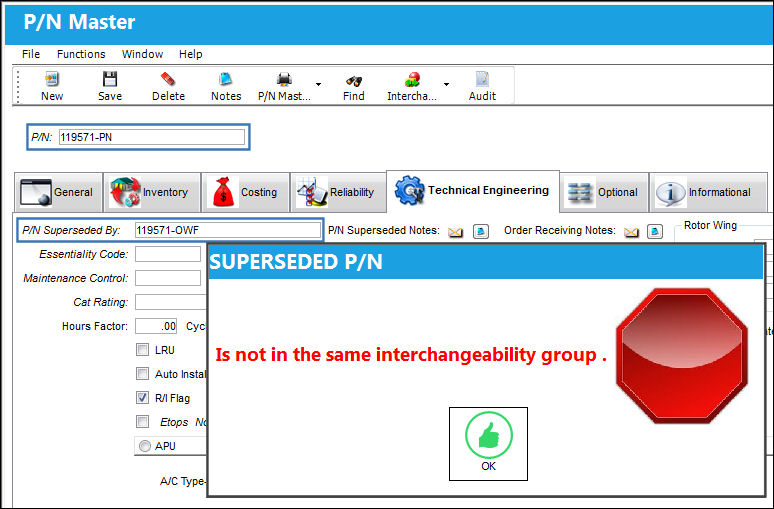

12_SUPERSEDPN_NO(2)

Using the same Main P/N, populate a separate Main P/N and select the Save button.

The system does not allow the separate Main P/N to be saved.

12_SUPERSEDPN_NO(3)
