RESEQTOEND - Re-sequence non TraxDoc items when updating a TraxDoc T/C

Re-sequence non TraxDoc items when updating a TraxDoc T/C

Affected Window: w_traxdoc_eu

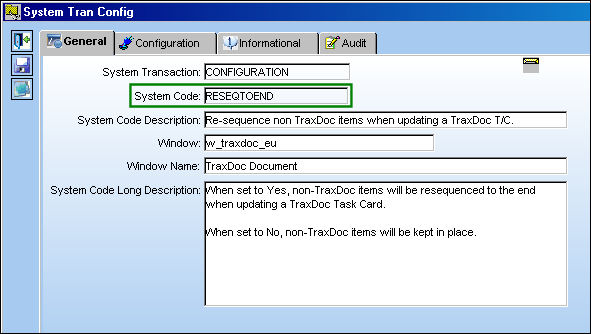

RESEQTOEND



Set Up:

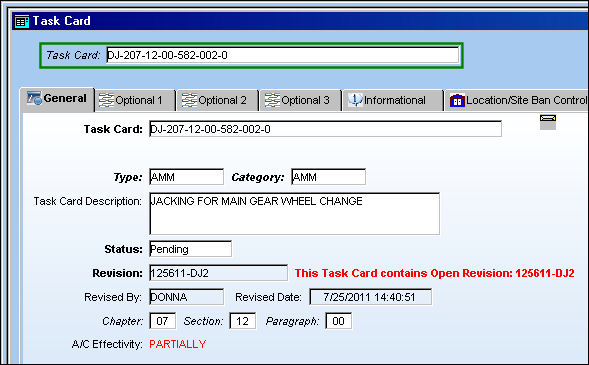

The following Task Card has been brought into the system through an OEM import process:

RESEQTOEND_no1

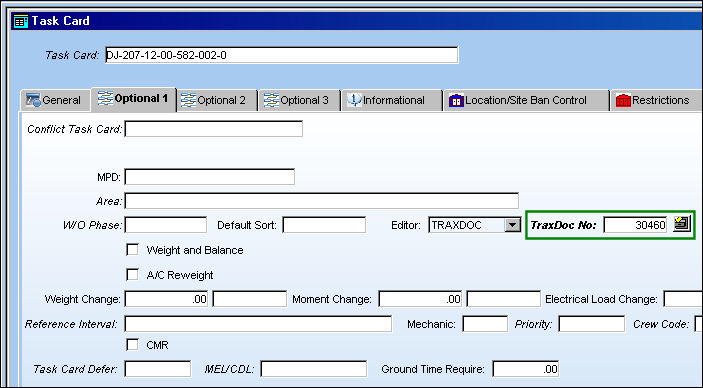

This Task Card was created via TraxDoc 30460:

RESEQTOEND_no2



Switch Set to No:

When set to No, non-TraxDoc items will be kept in place.

TRAXDOC_no

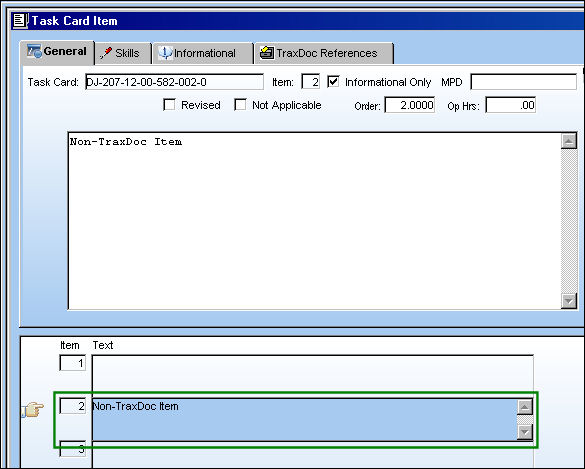

Item 2 is a non-TraxDoc item:

RESEQTOEND_no3

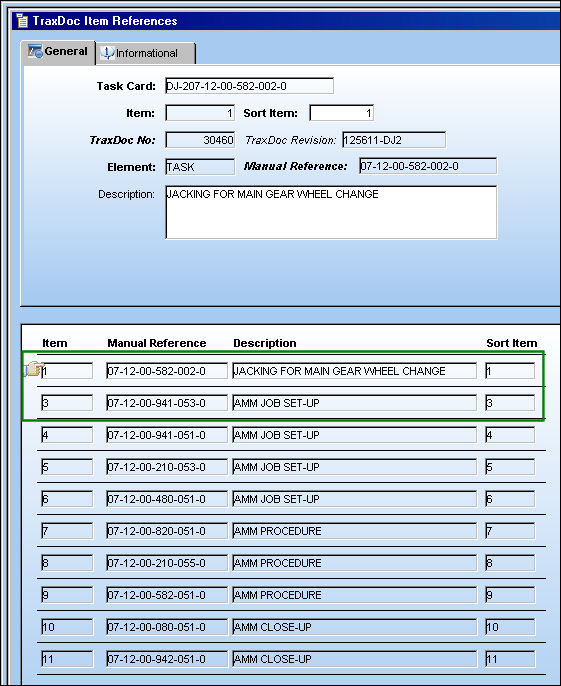

Item 2 is a non-TraxDoc item:

RESEQTOEND_no4

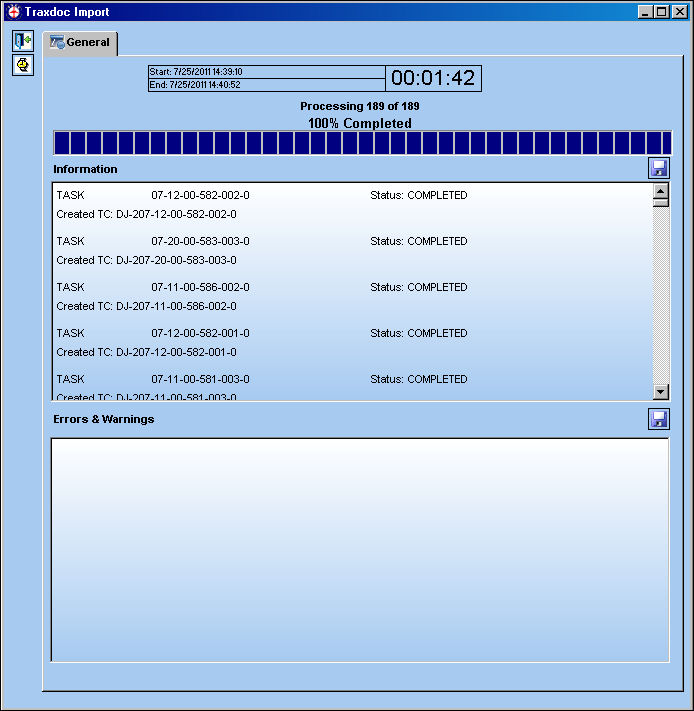

Run the OEM Import:

RESEQTOEND_no5

The item has been left in it's original location:

RESEQTOEND_no3



Switch Set to Yes:

When set to Yes, non-TraxDoc items will be resequenced to the end when updating a TraxDoc Task Card.

TRAXDOC_yes

Item 2 is a non-TraxDoc item:

RESEQTOEND_no3

Item 2 is a non-TraxDoc item:

RESEQTOEND_no4

Run the OEM import:

RESEQTOEND_yes2

The Item has been resequenced to the end:

RESEQTOEND_yes3

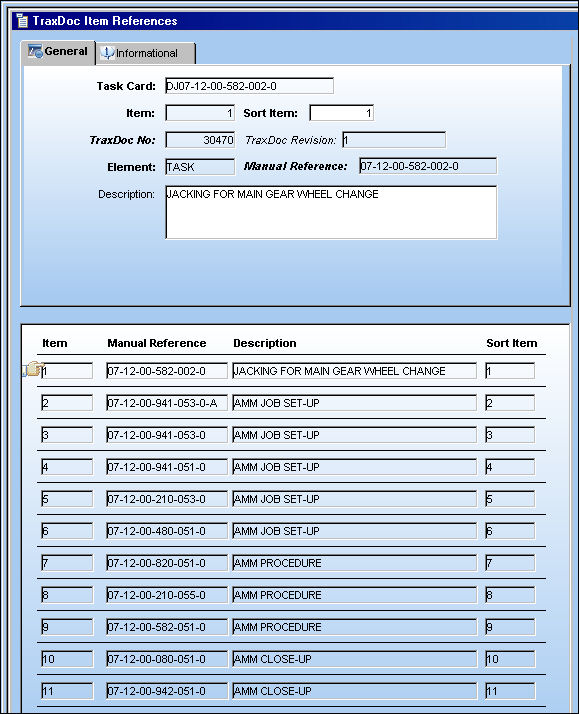

The TraxDoc Item References have also been re-sequenced:

RESEQTOEND_yes4
