TRXLOADUTF8 - Load Documents Using UTF8 Unicode

Load Documents Using UTF8 Unicode

Affected Window: w_traxdoc_eu

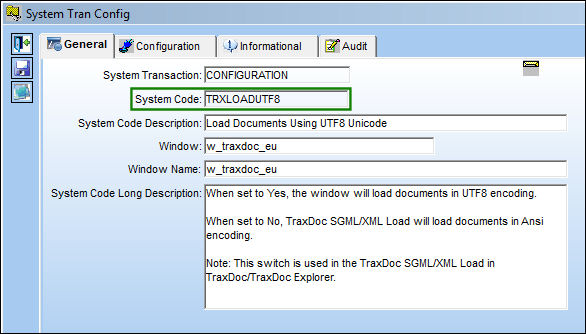

TRXDCRUNPKG_des

Note: This switch is used in the TraxDoc SGML/XML Load in TraxDoc/TraxDoc Explorer.



Setup:

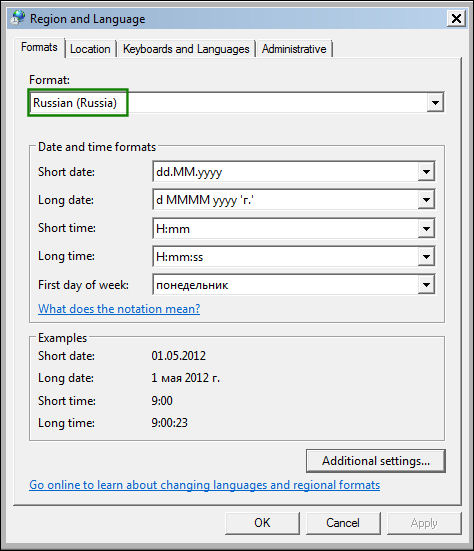

The Region and Language format is set to Russian.

Note: The requirement of this switch depends on if the Region and Language format contains UTF8.

TRXLOADDUTFS_set



Switch Set to Yes:

When set to Yes, the window will load documents in UTF8 encoding.

TRAXDOC_yes_new

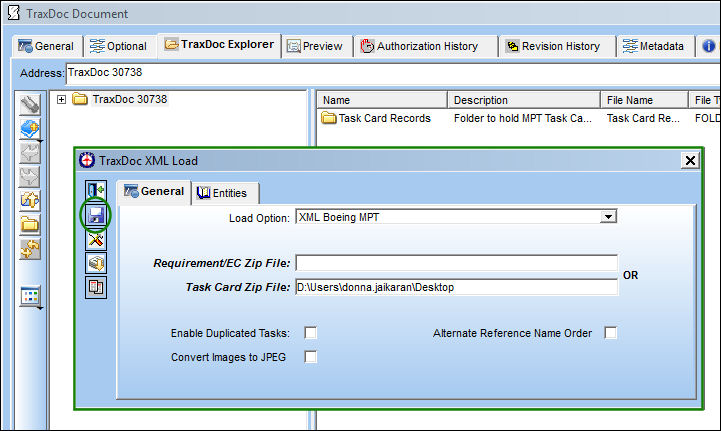

From the TraxDoc Explorer tab, load the xml file and select the Save but_save_small button:

TRXLOADDUTFS_no1

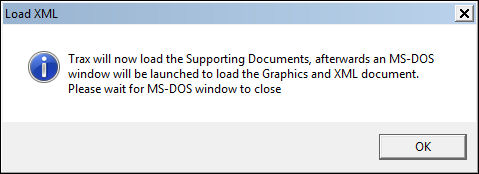

The Load XML information box appears. Select 'OK.'

TRXLOADDUTFS_no2

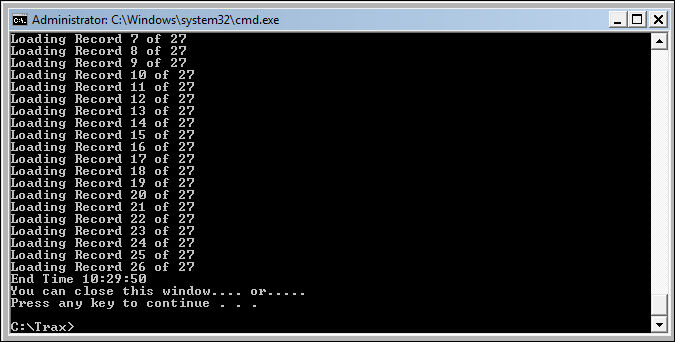

The records are loaded correctly:

TRXLOADDUTFS_yes1

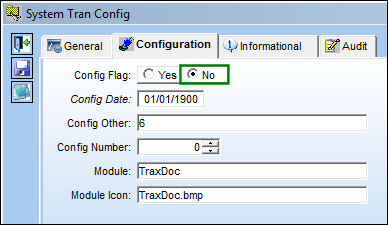

Switch Set to No:

When set to No, TraxDoc SGML/XML Load will load documents in Ansi encoding.

From the TraxDoc Explorer tab, load the xml file and select the Save but_save_small button:

TRXLOADDUTFS_no1

The Load XML information box appears. Select 'OK.'

TRXLOADDUTFS_no2

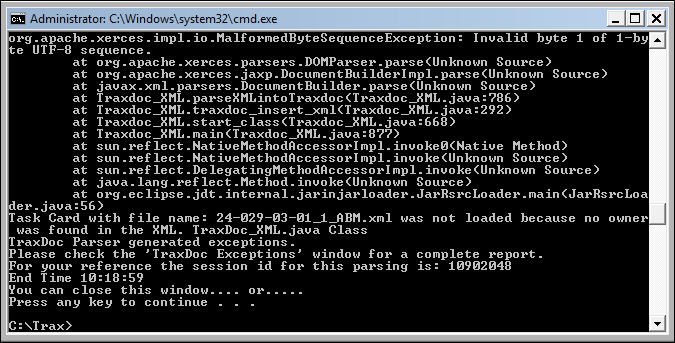

The load failed as was expected:

TRXLOADDUTFS_no3
