A/C ECM
The A/C ECM option allows for the entry of ngine ondition onitoring information for an aircraft. The information can be associated with a specific flight log or defect.
Entering ECM information allows for the detection of aircraft deterioration at an early stage and allows for corrective action before safe operation is affected.
ECM information can be entered in three areas of the system.
- Technical Records/Update/A/C ECM.
- Technical Records/Update/A/C Actual Flights/ECM Tab.
- Technical Records/Update/ Defect Reports/ECM Tab.

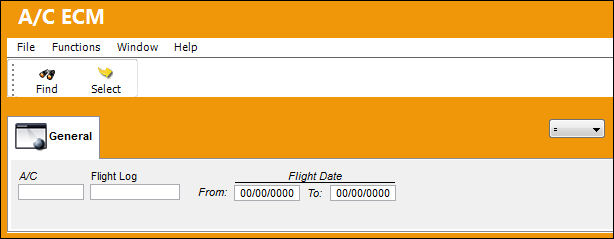

As with the majority of the query selections on the system, it is better to select as many parameters as required to minimize search results.
Once the search criteria has been selected, select the Find
button.

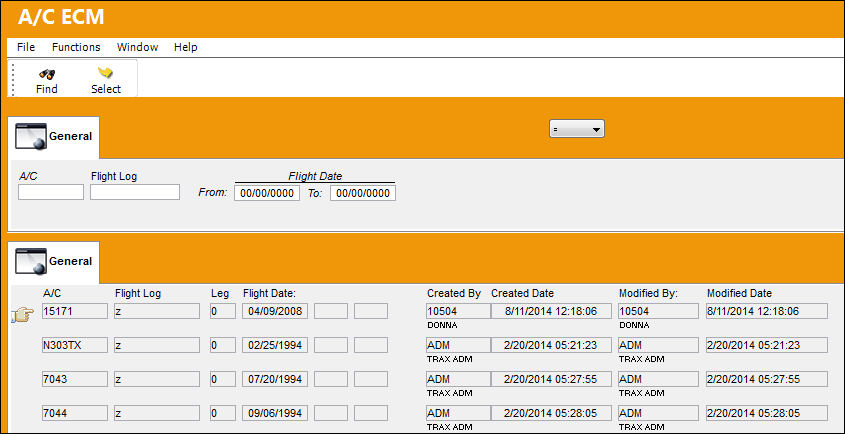

TRAX displays the following search result:
Confirm that the Hand
Pointer is pointing to the desired record. Select the Select

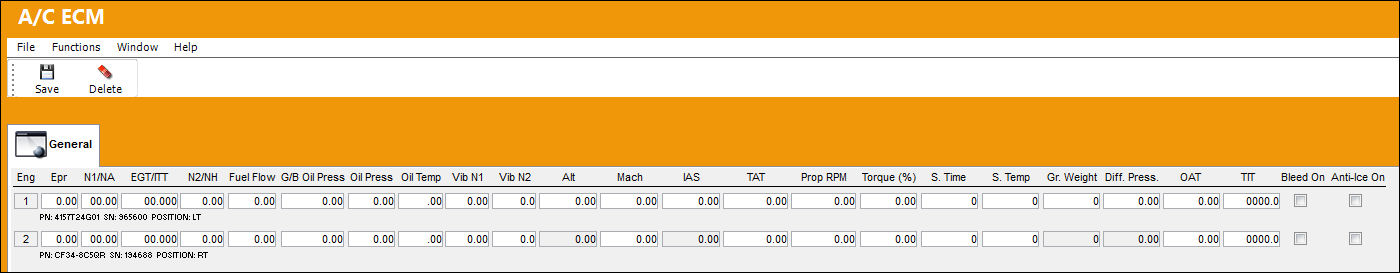

button to enter the ECM data.
Users are allowed to enter a percentage greater than 99.99% but lower than 120.00% in the N1/NA field. If a percentage that exceeds the allowed values is entered, the following prompt will appear:
