Select the New Non-Routine button to create a new Non-Routine Task Card for an aircraft.

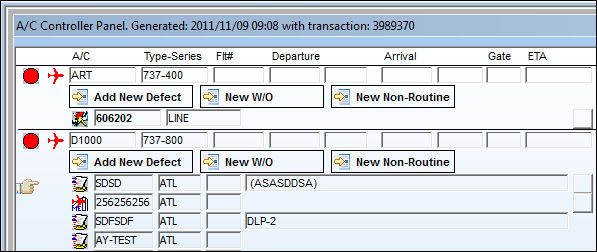

From the A/C Controller Panel, place the Hand pointer on a defect and select the New Non-Routine button.

If the defect is not on a Non-Routine Task Card, TRAX displays the following drop down selection window. The user may create a new Work Order or add an existing Work Order to the Non-Routine Task Card.

Scenario 1a: Select an existing Work Order

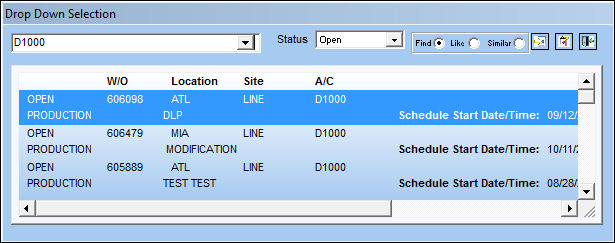

From the following drop down selection window, select an already existing (highlighted in blue) Work Order.

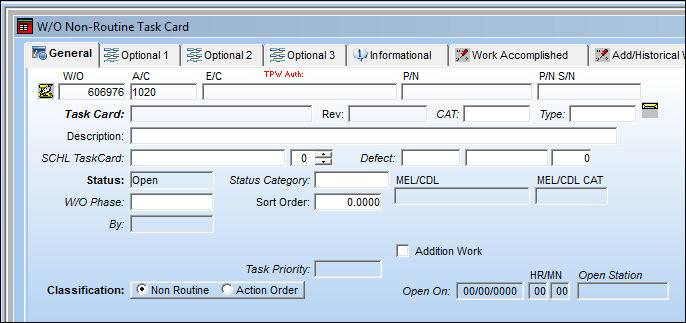

The W/O Non-Routine Task Card window appears. Populate any mandatory and desired information and save the Non-Routine Task Card.

Scenario 1b: Create a new Work Order

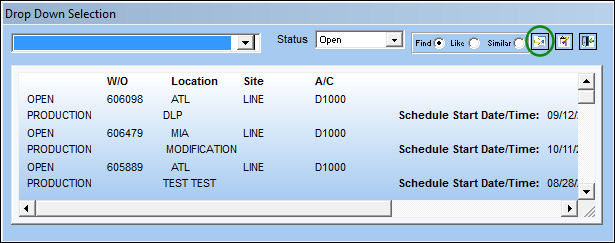

Or, select the New button to create a new Work Order to add to the Non-Routine Task Card.

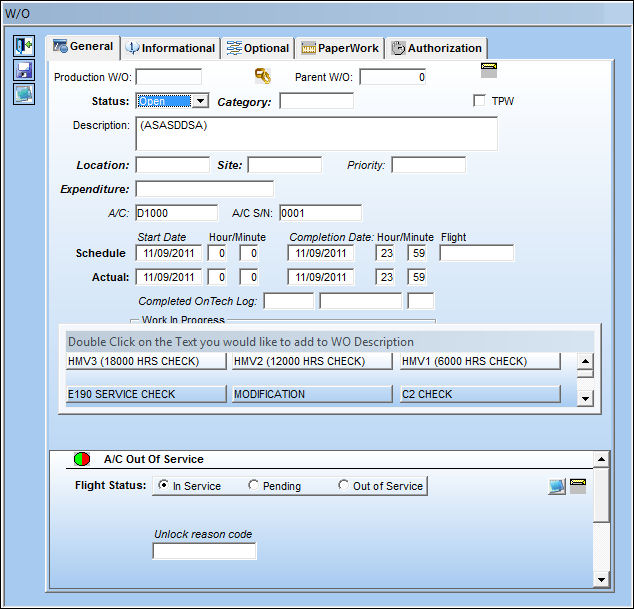

TRAX displays the W/O window. Populate all mandatory and desired information and select the Save button to save the Work Order to the Non-Routine Task Card.

Note: When creating a new Non-Routine Task Card, some fields will auto-populate, such as the Work order, A/C, etc.

Scenario 2: The Defect is already associated to a Non-Routine Task Card

If the Hand pointer is pointing to a defect that is already associated to a Non-Routine Task Card, when the user selects the New Non-Routine button, the Non-Routine Task Card will appear.

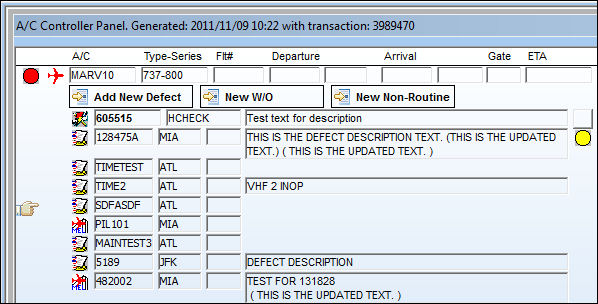

From the A/C Controller Panel, place the Hand pointer on a defect and select the New Non-Routine button.

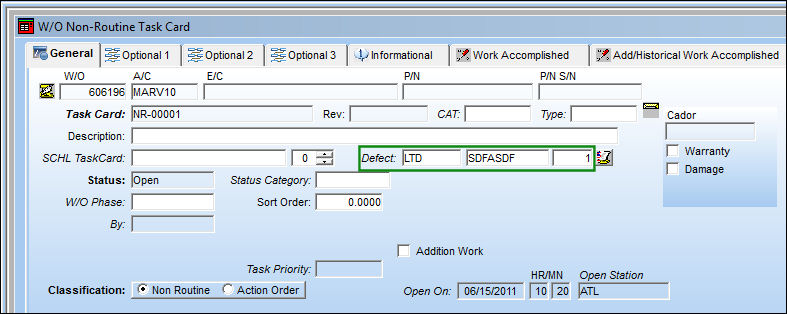

TRAX displays the W/O Non-Routine Task Card window:
