The Plan EC button allows the user to view all E/C coming due with a specified E/C Category via the Planning/SDI window.

This feature is ONLY applicable to certain customized Aircraft Controllers and therefore may not be available for your company.

Note: The same functionality can be accessed via the Plan EC button.

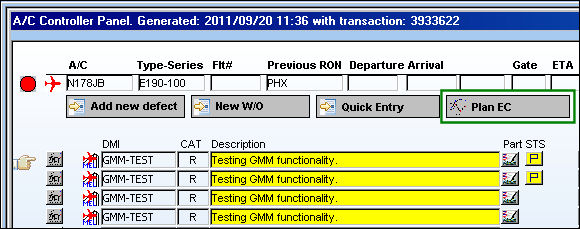

From the A/C Controller panel, filter for an aircraft and select the Plan EC button.

In the following example, the user has selected A/C N178JB.

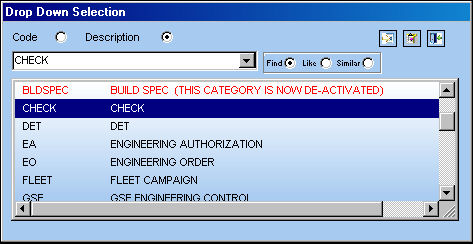

TRAX displays the following Drop Down Selection window. Select one of the following E/C Categories.

In this example, the user has selected the 'CHECK' Category.

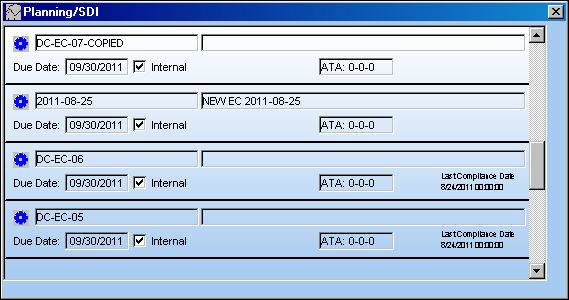

The Planning/SDI pop up appears with all E/Cs coming due with the 'CHECK' E/C Category:

Note: The Last Compliance Date information also appears for entries where that information exists.
