NLATBDSN - NLA Receiving To Be Determined By S/N

NLA Receiving To Be Determined By S/N

Affected Window: w_pn_nla_receiving_eu

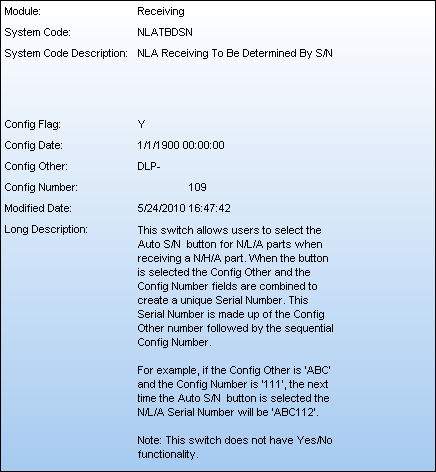

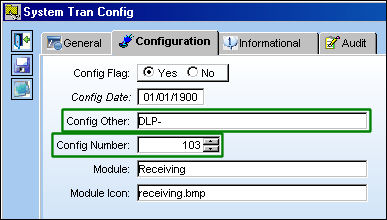

This switch allows users to select the Auto S/N button for N/L/A parts when receiving a N/H/A part. When the button is selected the Config Other and the Config Number fields are combined to create a unique Serial Number. This Serial Number is made up of the Config Other number followed by the sequential Config Number.

For example, if the Config Other is 'ABC' and the Config Number is '111', the next time the Auto S/N button is selected the N/L/A Serial Number will be 'ABC112.'

Note: This switch does not have Yes/No functionality.

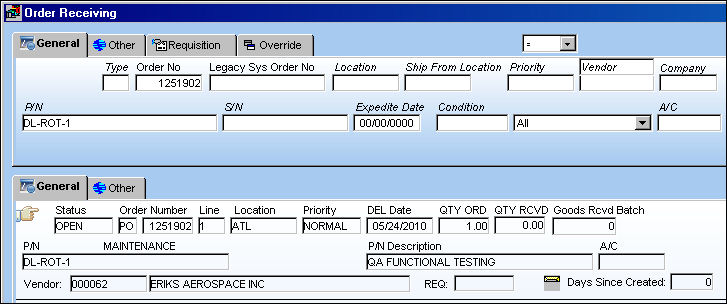

For example, a Purchase Order was created for an N/H/A part and is then received through Order Receiving.

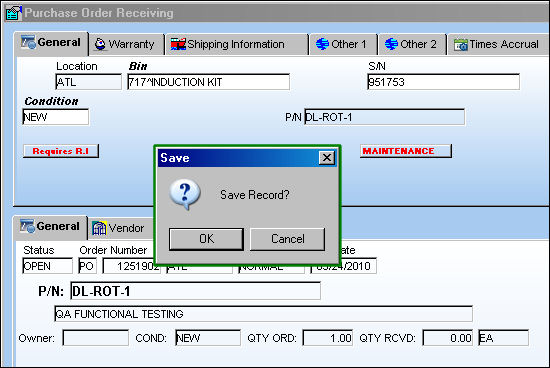

Enter all relevant information then select the Save button.

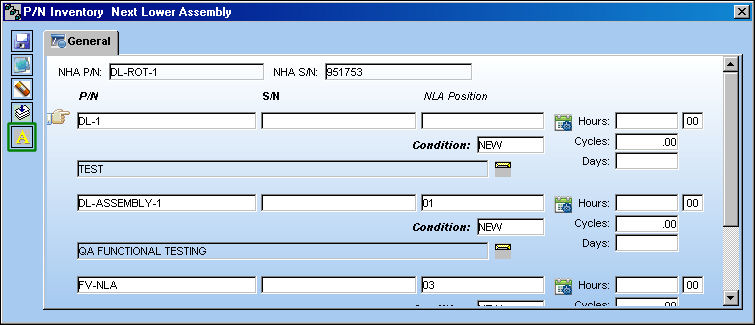

Once saved the P/N Inventory Next Lower Assembly window pops up. Notice the Auto S/N button is available.

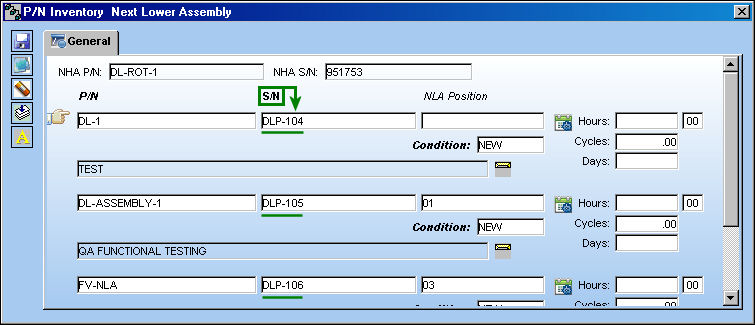

When the Auto S/N button is selected all of the Serial Numbers are populated by the code in the Config Number field and the sequential numbers in the Config Number field.
