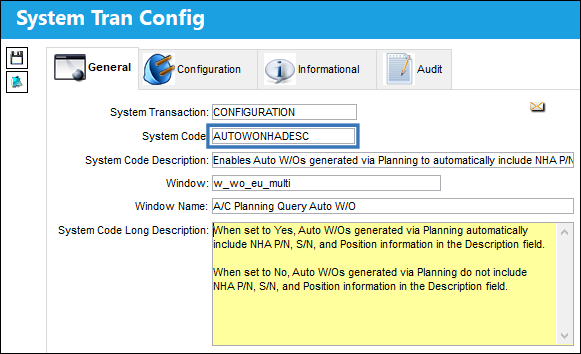

AUTOWONHADESC - Enables Auto W/Os generated via Planning to automatically include NHA P/N, S/N and Position Info
Enables Auto W/Os generated via Planning to automatically include NHA P/N, S/N and Position Info
Affected Window: w_wo_eu_multi
Switch Set to Yes:
When set to Yes, Auto W/Os generated via Planning automatically include NHA P/N, S/N, and Position information in the Description field.

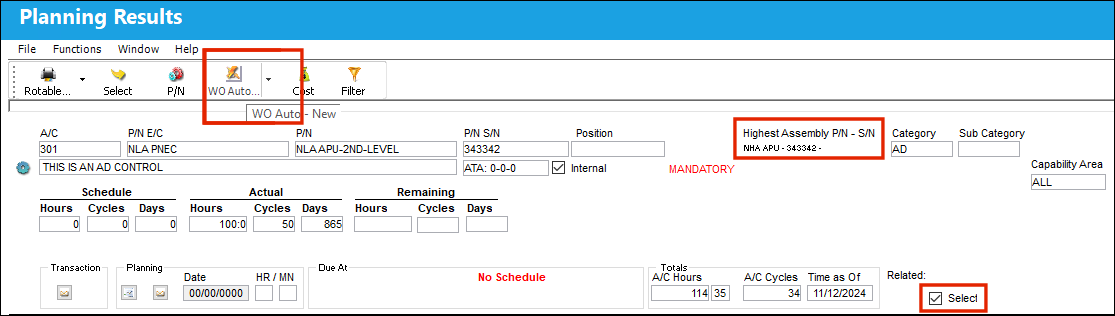

From Planning Results, an Auto W/O is generated for a P/N E/C planning element. The highest assembly P/N appears in the upper-right hand corner.

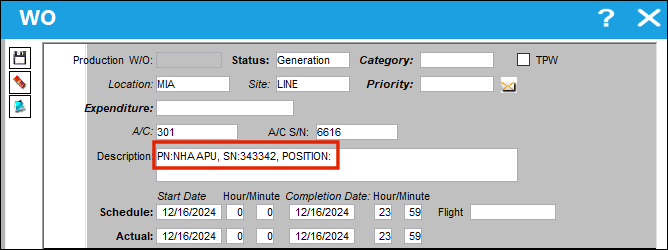

The W/O description field is automatically populated with the NHA P/N Information, Serial Number, and Position.
Switch Set to No:
When set to No, Auto W/Os generated via Planning do not include NHA P/N, S/N, and Position information in the Description field.
From Planning Results, an Auto W/O is generated for a P/N E/C planning element. The highest assembly P/N appears in the upper-right hand corner.

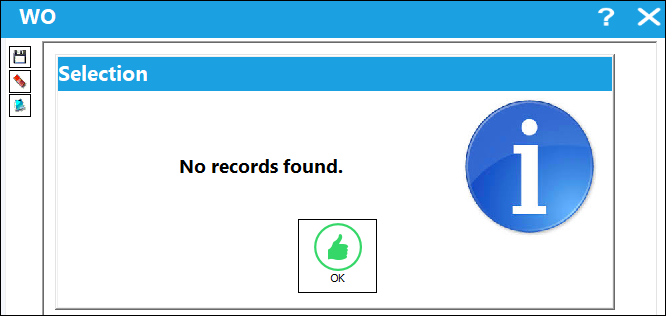

The Auto W/O is not generated with the NHA P/N, S/N and Position information. This information will need to be manually entered.
