MANHOURSAUTOCOMP - Auto complete certain fields in Man Hours Schedule Override

Auto complete certain fields in Man Hours Schedule Override

Affected Window: w_employee_attendance_override_eu

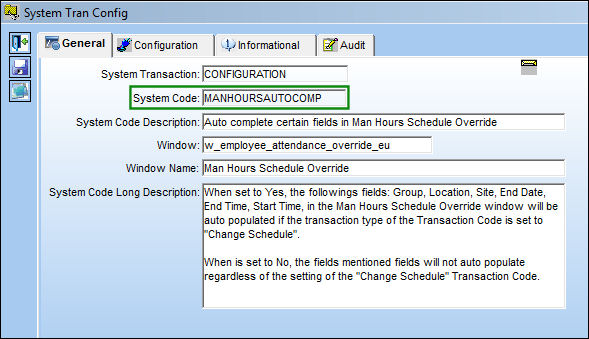

MANHOURSAUTOCOMP



Set Up:

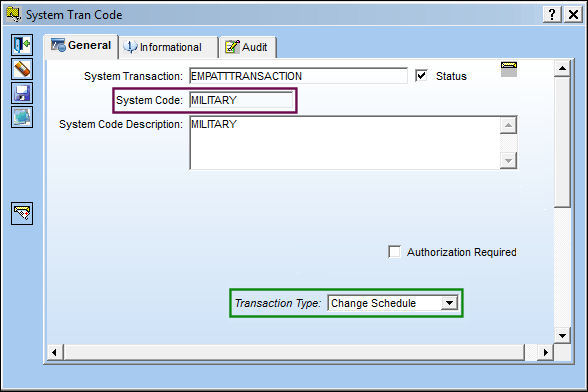

The MILITARY Transaction Code is associated to the Change Schedule Transaction Type:

MANHOURSAUTOCOMP_set_up1



Switch Set to Yes:

When set to Yes, the followings fields: Group, Location, Site, End Date, End Time, Start Time, in the Man Hours Schedule Override window will be auto populated if the transaction type of the Transaction Code is set to "Change Schedule."

Go to Man Hours Schedule Override and select the New but_new_small button. Populate the name of the Employee and the Transaction Type.

Note: The Transaction Type selected is MILITARY.

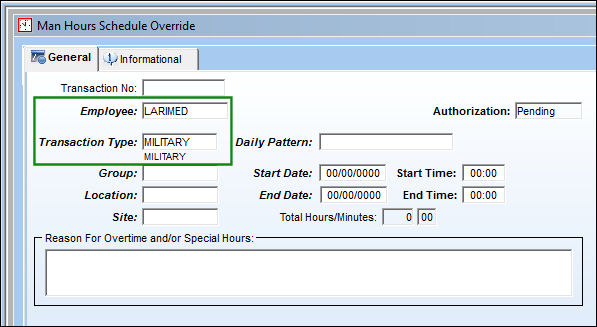

MANHOURSAUTOCOMP_yes1

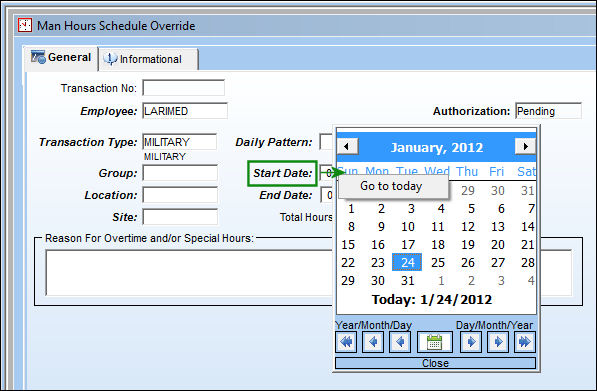

Populate the Start Date:

MANHOURSAUTOCOMP_yes2

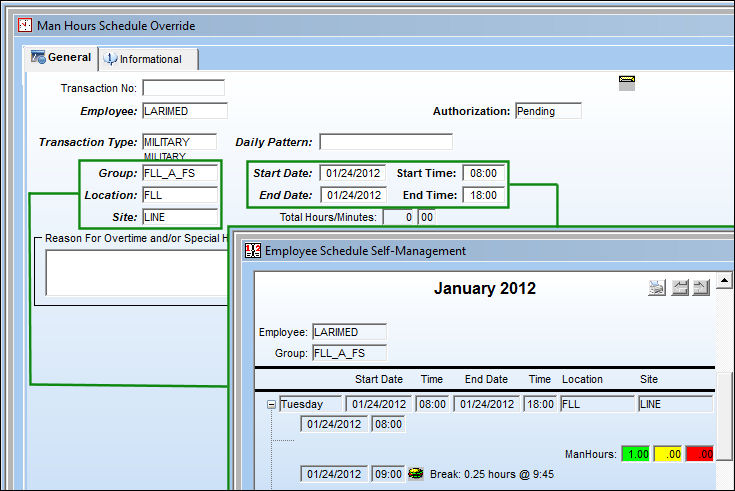

All of the below fields are populated from the Employee Schedule Self-Management window:

MANHOURSAUTOCOMP_yes3

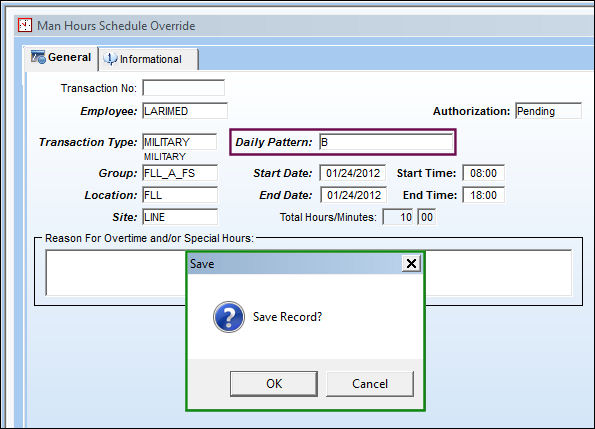

Populate the Daily Pattern and save the record.

MANHOURSAUTOCOMP_yes4

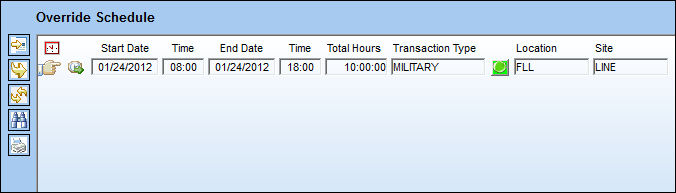

The Employee Schedule Self Management window correctly displays the override information:

MANHOURSAUTOCOMP_yes5



Switch Set to No:

When is set to No, the fields mentioned fields will not auto populate regardless of the setting of the "Change Schedule" Transaction Code.

PLAN_switch no

When the Start Date is populated, the remaining fields do not auto populate:

MANHOURSAUTOCOMP_no1
