PLNHISTML - Determine Planning History Time Limit

Determine Planning History Time Limit

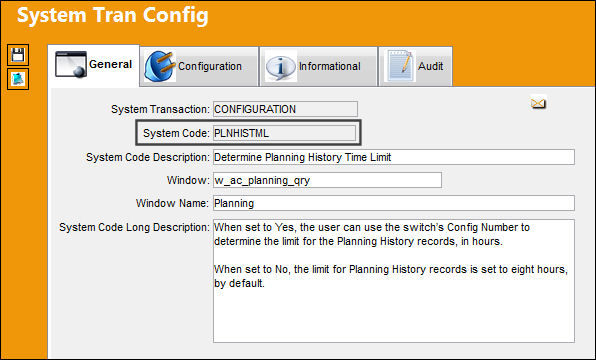

Affected Window: w_ac_planning_qry

PLNHISTML_Configuration

Switch Set to Yes:

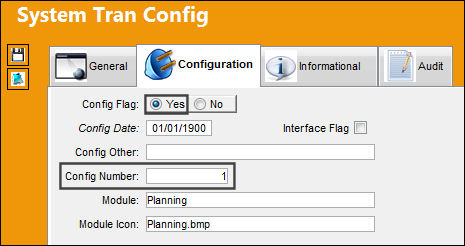

When set to Yes, the user can use the switch’s Config Number to determine the limit for the Planning History records, in hours.

PLNHISTML_Yes_1

The following Planning History is shown. Notice the Date and Time of the Planning Job.

PLNHISTML_Yes_2

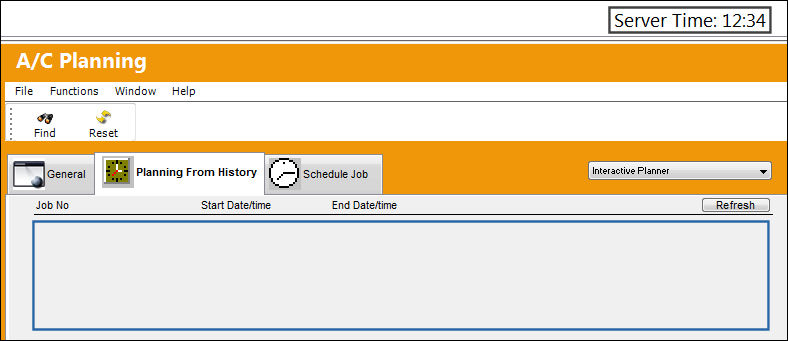

Notice after the amount of hours specified by the switch’s Config Number, the record is no longer shown in the Planning History.

PLNHISTML_Yes_3

Switch Set to No:

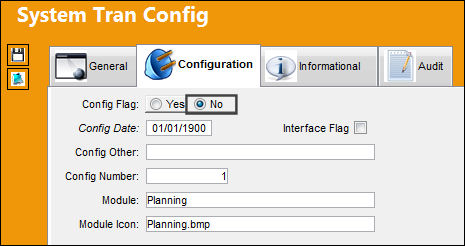

When set to No, the limit for Planning History records is set to eight hours, by default.

PLNHISTML_No_1

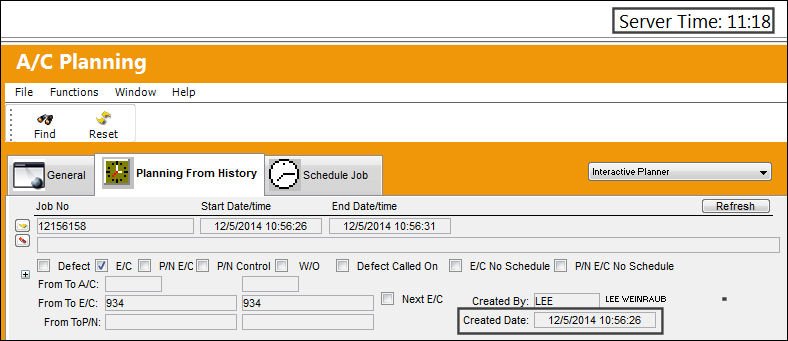

The following Planning History is shown. Notice the Date and Time of the Planning Job.

PLNHISTML_No_2

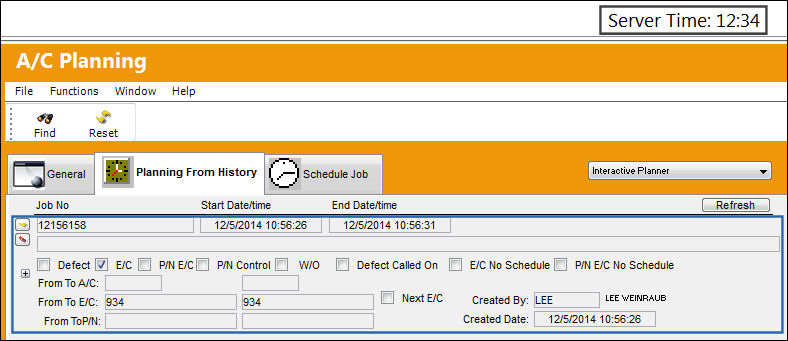

Notice with the switch set to No, after the amount of hours specified by the switch’s Config Number, the record is still shown in the Planning History, and instead will be removed automatically after eight hours.

PLNHISTML_No_3
