TRAX MANUALS > Inventory > Inventory Module > Inventory, Update Menu > Inventory Transaction > Inventory Transaction Buttons > Build Multi Kit Button, via Inventory Transaction

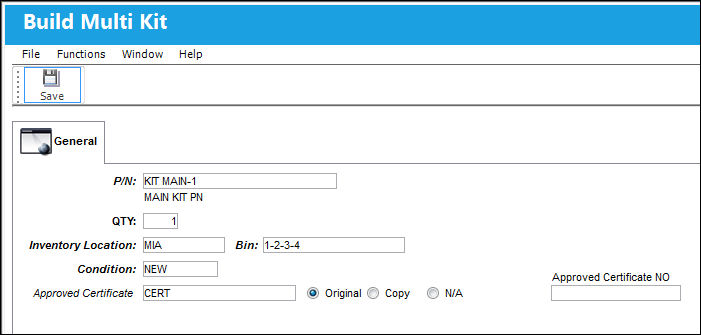

The Build Multi Kit button allows the user to build multiple kits in Inventory Transaction.

The following information/options are available in this window:
_____________________________________________________________________________________

P/N

The Part Number reference for the aircraft part. Kit part number to be built.

QTY

The number of Kits.

Inventory Location

The Inventory location of the Kit.

Bin

The specific storage bin within the inventory location.

Condition

The Condition of the Kit.

Approved Certificate

The type of certificate approving the part (ie. Form 1, EASA etc.). The user may choose from a pre-defined transaction code, or enter the Approval Certificate manually.

Original radio button - Select this radio button to indicate that the certificate is an original.

Copy radio button - Select this radio button to indicate that the certificate is a copy.

N/A radio button - Select this radio button to indicate that the certificate is not available.

Approved Certificate NO

The Approved Certificate Number. This is a free text field.

_____________________________________________________________________________________

Select the Save button to break the Kit.

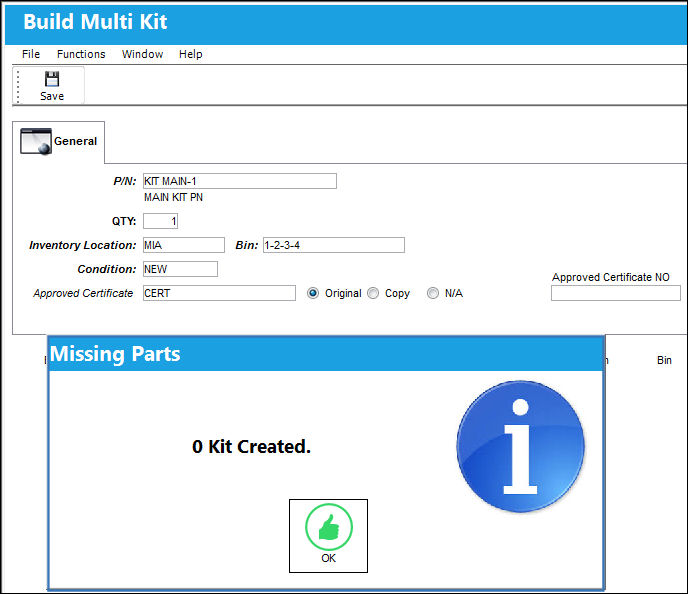

If the Kit has missing parts, no kits will be created and the following pop-up message will appear:

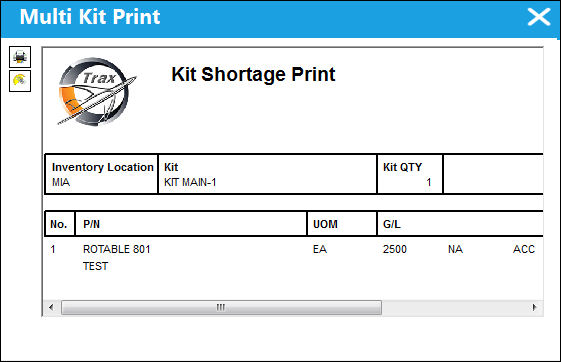

Click OK. The Multi Kit Print Window also appears notifying the user of the missing parts with a "Kit Shortage Print."

If there are no missing parts TRAX will allow the user to Save and the "Multi Kit Print" is available. Additionally, the newly created Kit is available in Inventory.
