TRAX MANUALS > Inventory > Inventory Module > Inventory, Update Menu > Inventory Transaction > Inventory Transaction Buttons > P/N-S/N Position Change Button, via Inventory Transaction

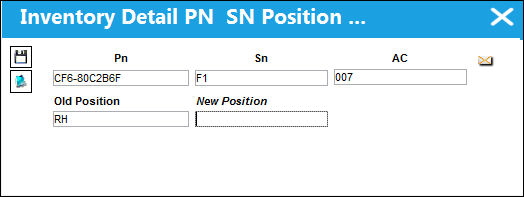

Select the P/N-S/N Position Change button to change the aircraft position that the part is installed on. Enter the new position in the New position field and select the Save button.

Note: When the P/N S/N Position is changed, any associated P/N Controls are updated to reflect the changes via the P/N Inventory Control window. For more information refer to the Control Button (Via the Inventory Transaction Detail) in the Inventory Training Manual.

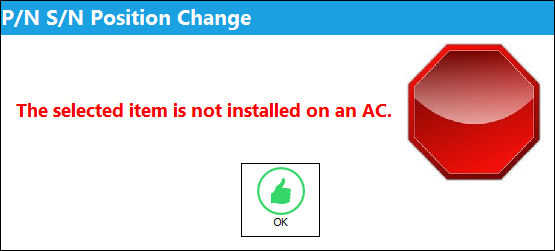

Note: This button can only be selected for parts that are currently installed on an Aircraft. If selected for an uninstalled part, the following error message appears:

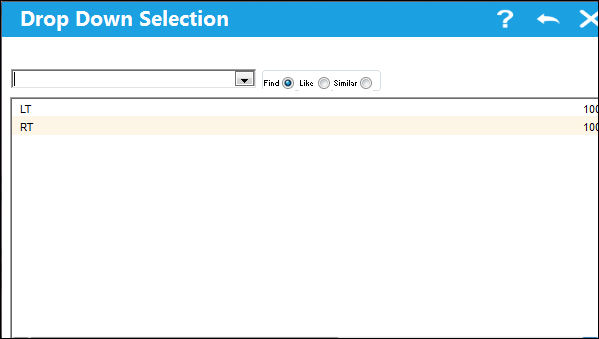

Only the positions linked to the part via the P/N Master will appear in the drop down window.

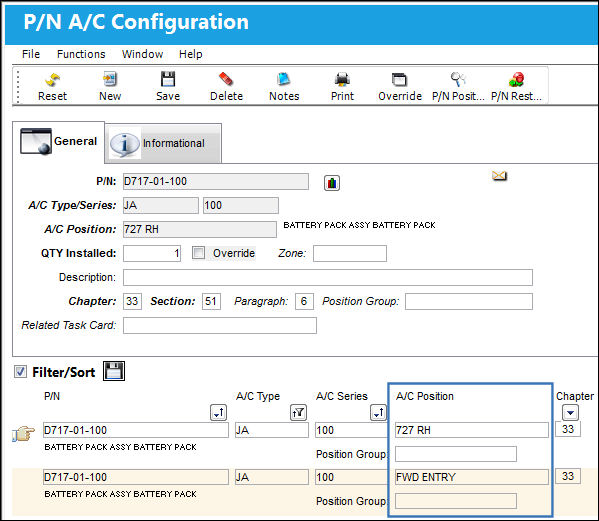

Notice that the part has the following Positions linked via the Positions button of the P/N Master. Notice these are the same Positions listed above.

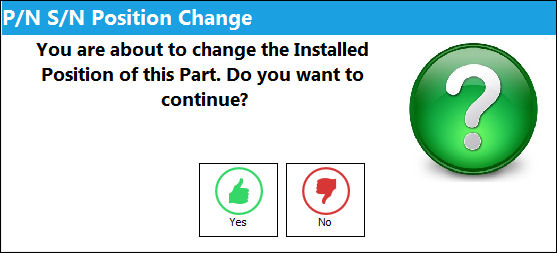

Once the Position is changed, the following prompt appears to confirm the change.

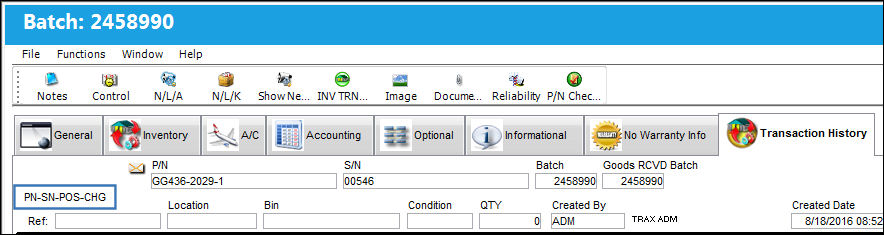

Once the Position is changed, a new Inventory Transaction is written for the batch called 'PN-SN-POS-CHG'.

Note: If any E/Cs that the part is linked to has Position controls, this position change in Inventory will be validated in the Engineering Effectivity Override window. For example, if a Serial Number for a Position-controlled E/C is not installed on the adequate position, the S/N's Status in the Engineering Effectivity Override window will be 'N/A' (instead of 'Open'). For more information refer to the Positioning Control Button and the Override Button via the Engineering E/C module.

Additional information can be included through the Notes button.
