MANLLOR - Disable Lower Level and Override checkboxes if E/C is Mandatory

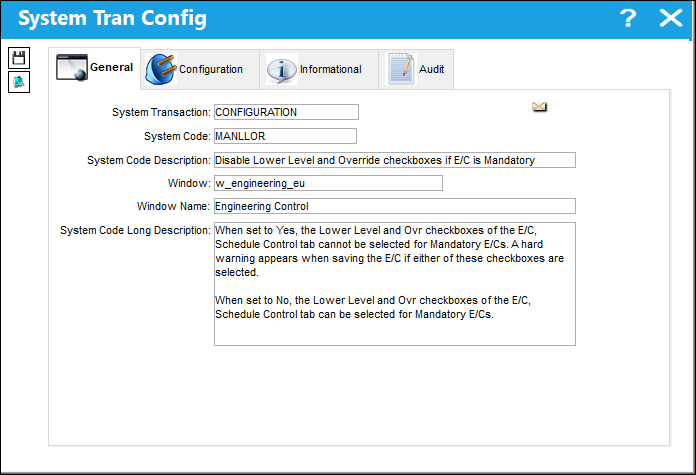

Disable Lower Level and Override checkboxes if E/C is Mandatory

Affected Window: w_engineering_eu

Switch Set to Yes:

When set to Yes, the Lower Level and Ovr checkboxes of the E/C, Schedule Control tab cannot be selected for Mandatory E/Cs. A hard warning appears when saving the E/C if either of these checkboxes are selected.

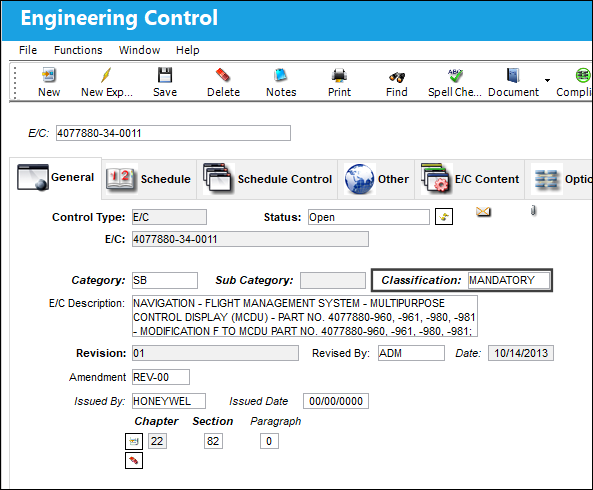

The following Engineering Control has been created with a Classification of Mandatory.

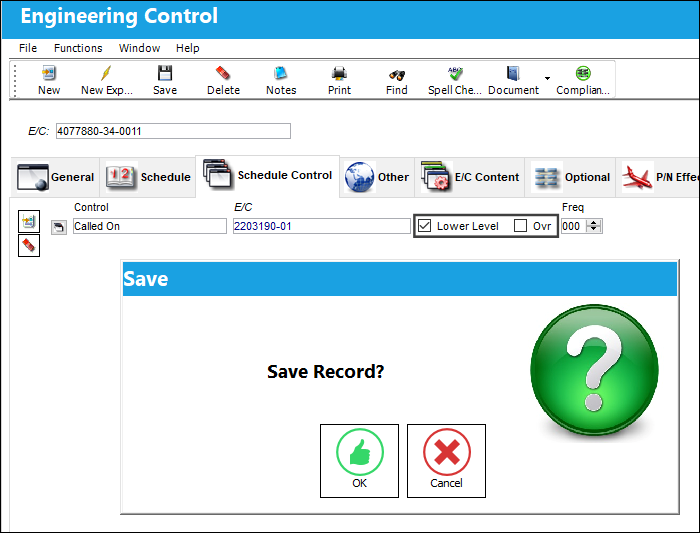

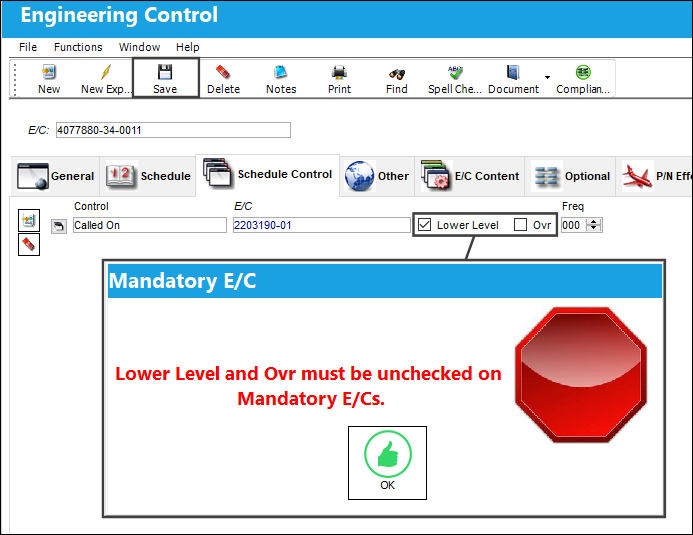

Notice in the Engineering Control, Schedule Control tab, the Lower Level and Override checkboxes are selected. But then the window is saved, a hard warning appears.

Switch Set to No:

When set to No, the Lower Level and Ovr checkboxes of the E/C, Schedule Control tab can be selected for Mandatory E/Cs.

The following Engineering Control has been created with a Classification of Mandatory.

Notice in the Engineering Control, Schedule Control tab, the the Lower Level or Override checkboxes can be selected for each record added. The window can be saved.
