AVOIDRATCHOLD - Cannot Release Task Cards in Hold Status For Authorization

TRAX MANUALS > Engineering > Engineering Switches > AVOIDRATCHOLD - Cannot Release Task Cards in Hold Status For Authorization

AVOIDRATCHOLD - Cannot Release Task Cards in Hold Status For Authorization

Cannot Release Task Cards in Hold Status For Authorization

Affected Window: w_task_card_eu_revision

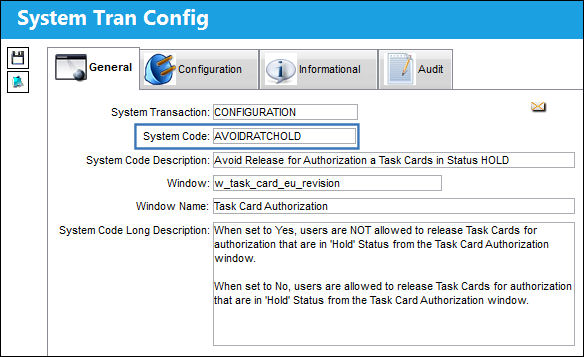

12_AVOIDRATCHOLD(1)

Switch Set to Yes:

When set to Yes, users are NOT allowed to release Task Cards for authorization that are in 'Hold' Status from the Task Card Authorization window.

12_Engineering_Yes

For example, notice that the following Task Card is in 'Hold' Status via the Engineering/Update/Task Card Authorization Management window. When the Release for Authorization button in selected, the following error message appears. Users are prevented from continuing.

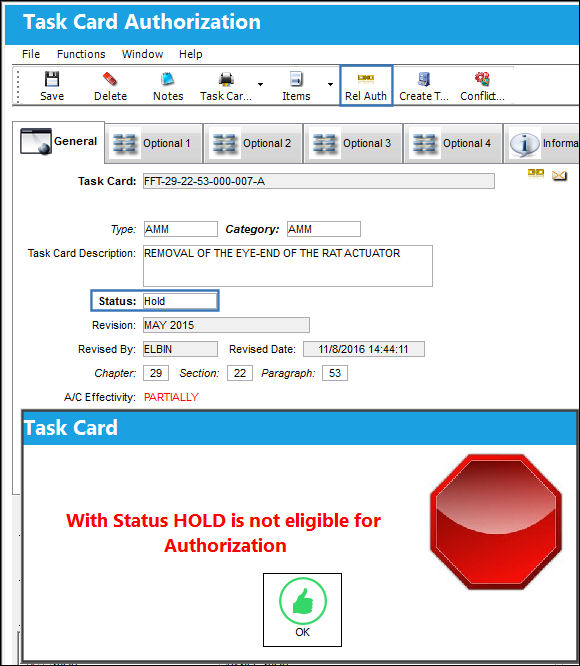

12_AVOIDRATCHOLD(2)

When the Task Card Status is anything other than 'Hold', users can release it for authorization.

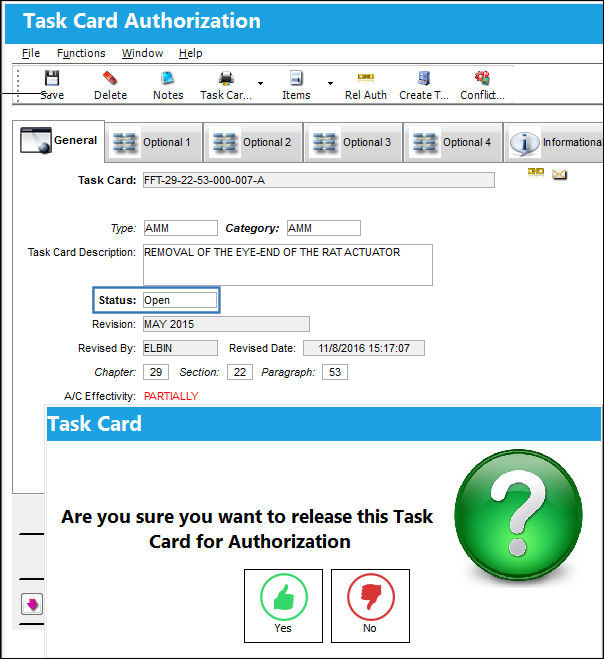

12_AVOIDRATCHOLD(3)

Switch Set to No:

When set to No, users are allowed to release Task Cards for authorization that are in 'HOLD' Status from the Task Card Authorization window.

12_Engineering_No

For example, notice that the following Task Card is in 'Hold' Status via the Engineering/Update/Task Card Authorization Management window. When the Release for Authorization button in selected, users are allowed to continue.

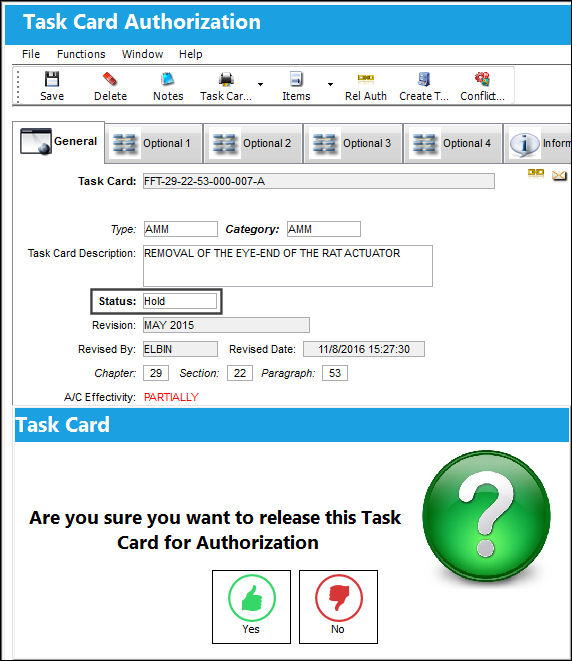

12_AVOIDRATCHOLD(4)
