TC/CTL - Task Card Control Master Edit

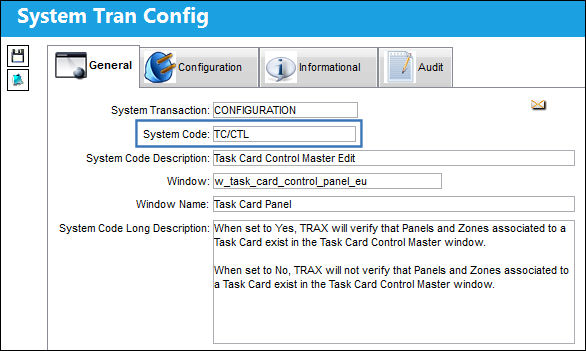

Task Card Control Master Edit

Affected Window: w_task_card_control_panel_eu

12_TCCTL1

Switch Set to Yes:

When set to Yes, the system will verify that Panels and Zones associated to a Task Card exist in the Task Card Control Master window.

12_Engineering_Yes

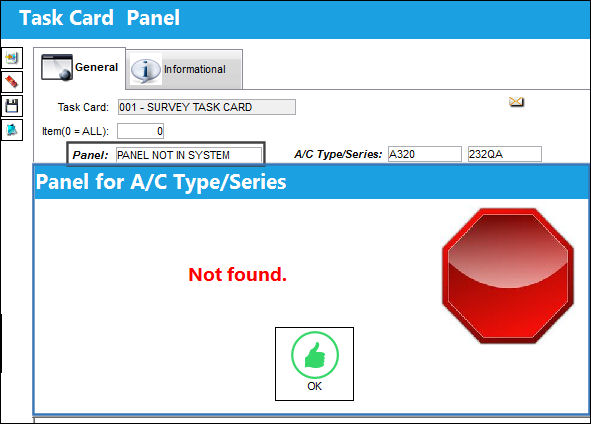

The following Panel is being associated to a Task Card. Notice the system verifies that it does or does not exist in the Task Card Control Master window.

12_TCCTL2

Switch Set to No:

When set to No, the system will not verify that Panels and Zones associated to a Task Card exist in the Task Card Control Master window.

12_Engineering_No

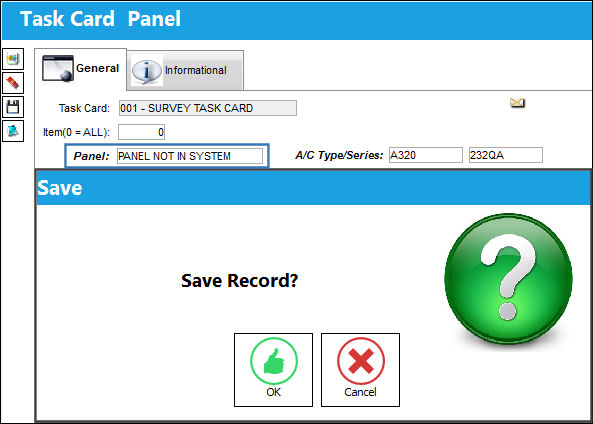

The following Panel is being associated to a Task Card. Notice the system does not verify that it does or does not exist in the Task Card Control Master window.

12_TCCTL3

Note: The same functions apply to a Zone.
