TCXMLENCODING - Use UTF-8 Encoding for Task Card XML

TRAX MANUALS > Engineering > Engineering Switches > TCXMLENCODING - Use UTF-8 Encoding for Task Card XML

TCXMLENCODING - Use UTF-8 Encoding for Task Card XML

Use UTF-8 Encoding for Task Card XML

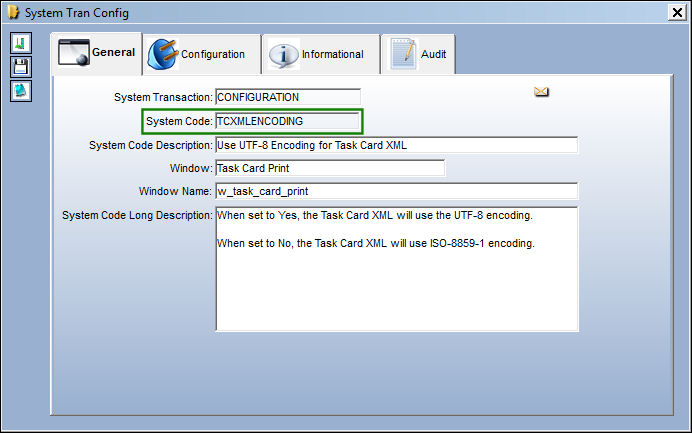

Affected Window: w_task_card_print

TCXMLENCODING_des

Switch Set to Yes:

When set to Yes, the Task Card XML will use the UTF-8 encoding.

ENG_yes

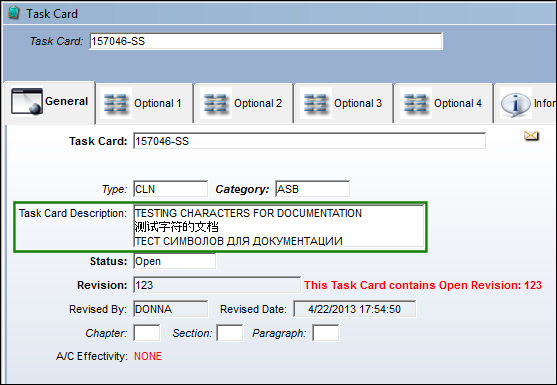

Stylesheet:

TCXMLENCODING_yes1

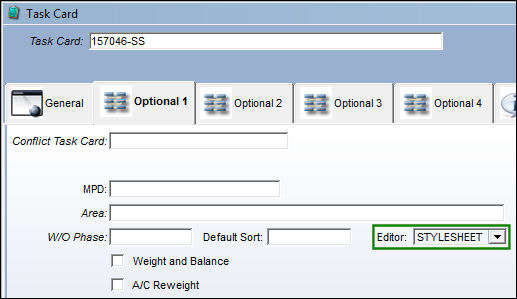

The Task Card has a Stylesheet editor:

TCXMLENCODING_yes2

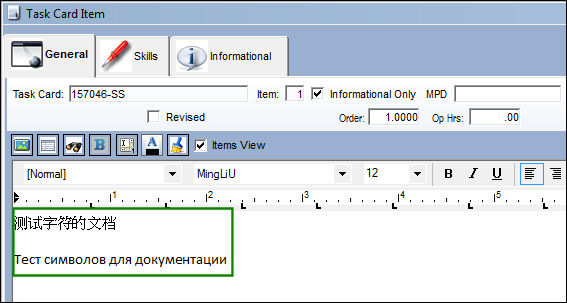

The Task Card item is populated with the following characters:

TCXMLENCODING_yes3

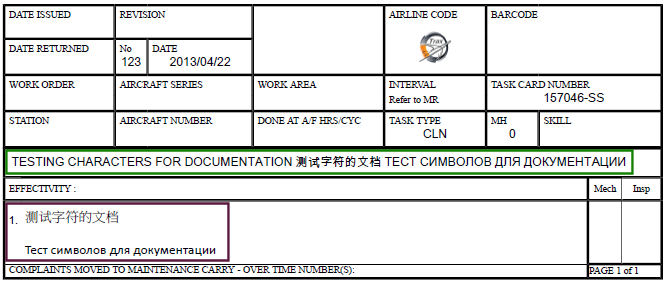

The Task Card print appears as shown below. The Task Card description and item does print with the special characters.

TCXMLENCODING_yes4

TraxDoc:

TCXMLENCODING_yes5

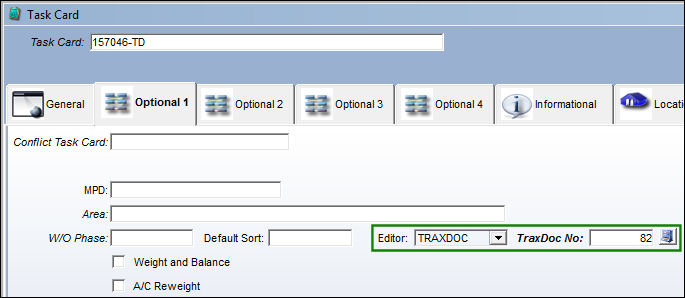

The Task Card has a TraxDoc editor:

TCXMLENCODING_yes6

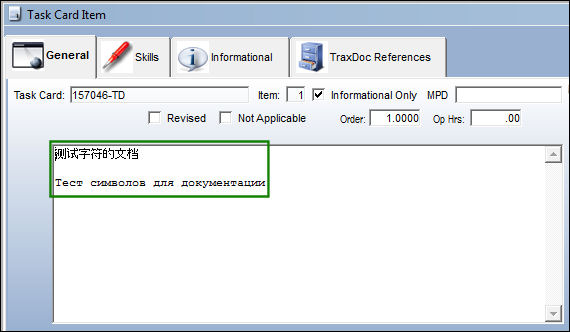

The Task Card item is populated with the following characters:

TCXMLENCODING_yes7

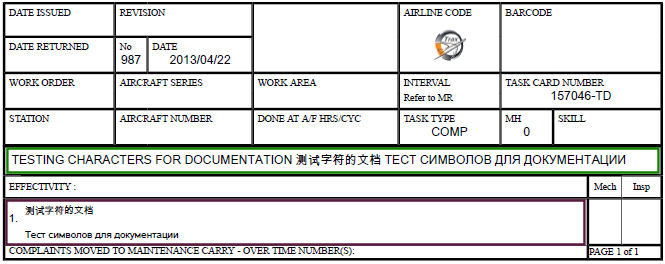

The Task Card print appears as shown below. The Task Card description and item does print with the special characters.

TCXMLENCODING_yes8

Switch Set to No:

When set to No, the Task Card XML will use ISO-8859-1 encoding.

ENG_no

Stylesheet:

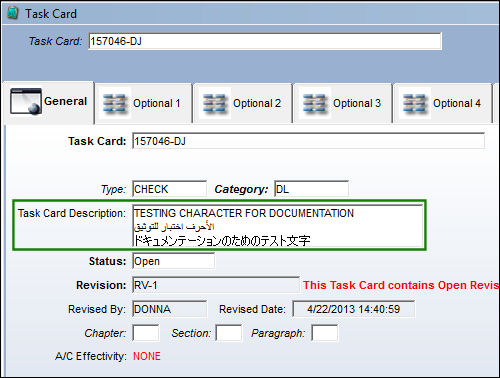

The following Task Card was created with the following Task Card description:

TCXMLENCODING_no1

The Task Card has a Stylesheet editor:

TCXMLENCODING_no2

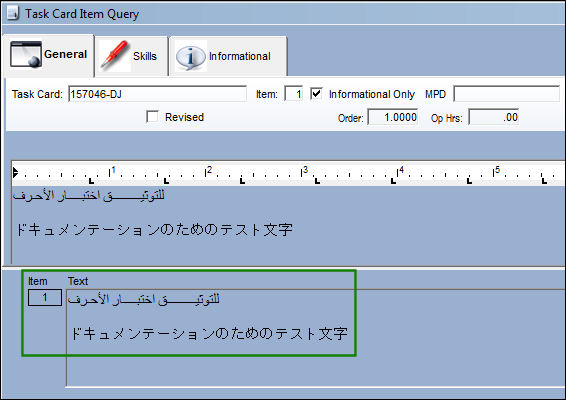

The Task Card item is populated with the following characters:

TCXMLENCODING_no3

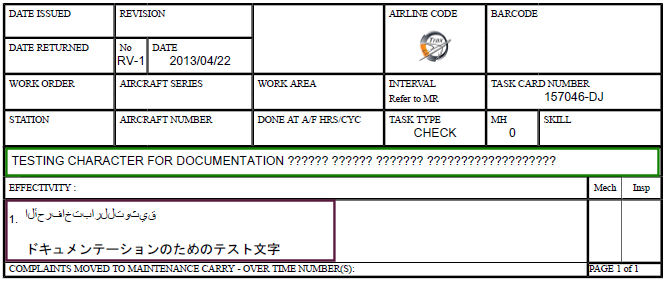

The Task Card print appears as shown below. The Task Card description does not print with the special characters, however they do appear in the Task Card item.

TCXMLENCODING_no4

TraxDoc:

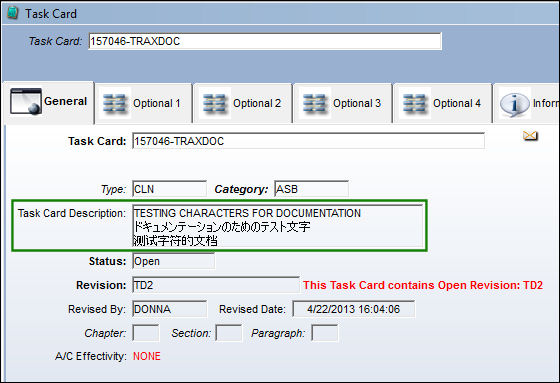

The following Task Card was created with the following Task Card description:

TCXMLENCODING_no5

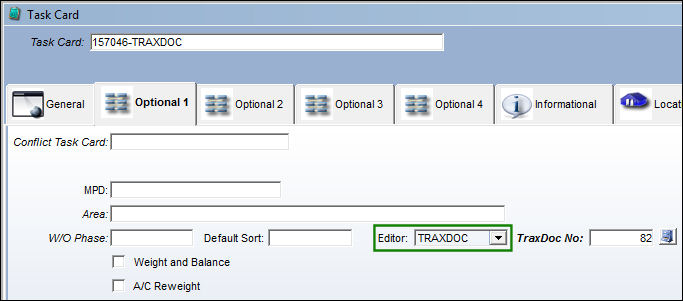

The Task Card has a TraxDoc editor:

TCXMLENCODING_no6

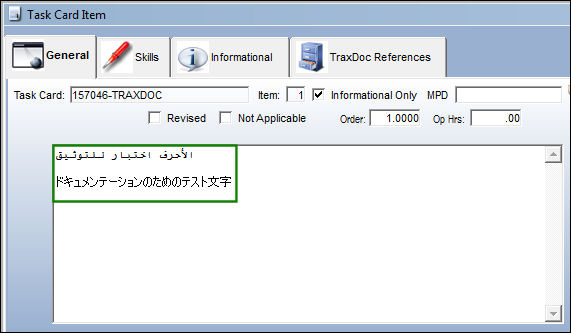

The Task Card item is populated with the following characters:

TCXMLENCODING_no7

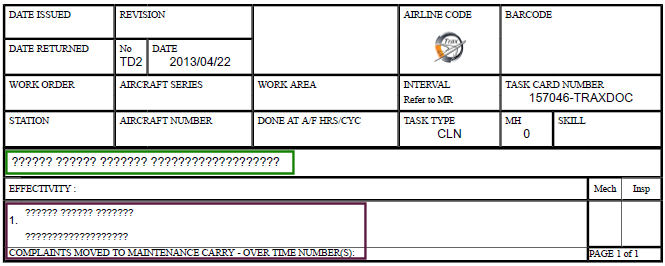

The Task Card print appears as shown below. The Task Card description nor the Task Card item print with the special characters:

TCXMLENCODING_no8
