ECATACHAPSECTMANDAT - Make Chapter and Section fields Mandatory

TRAX MANUALS > Engineering > Engineering Switches > ECATACHAPSECTMANDAT - Make Chapter and Section fields Mandatory

ECATACHAPSECTMANDAT - Make Chapter and Section fields Mandatory

Make Chapter and Section fields Mandatory

Affected Window: w_engineering_eu

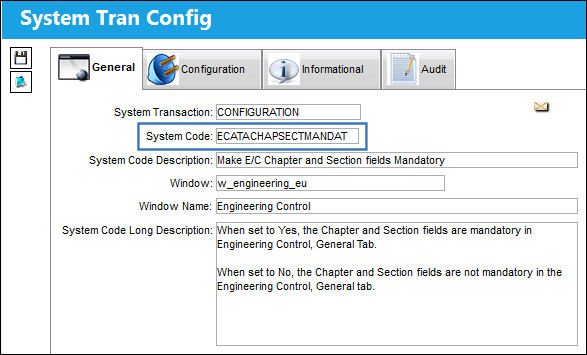

12_ECATACHAPSECTMANDAT1

Switch Set to Yes:

When set to Yes, the Chapter and Section fields are mandatory in Engineering Control, General tab.

12_Engineering_Yes

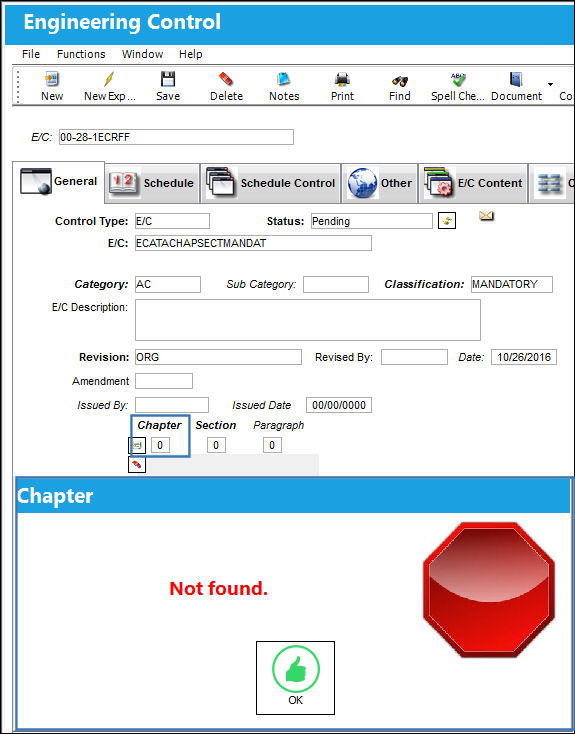

The following Engineering Control is being created. Notice the Chapter field of the General tab is mandatory.

12_ECATACHAPSECTMANDAT_YES1

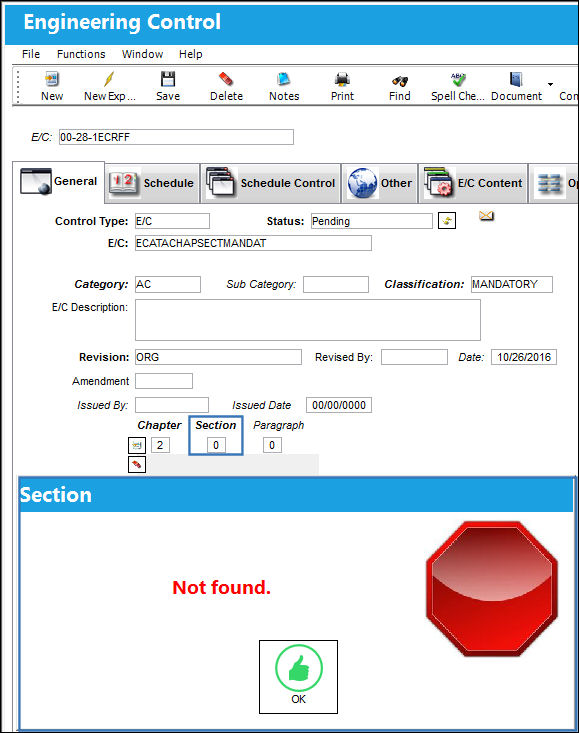

Additionally, the Section field is mandatory.

12_ECATACHAPSECTMANDAT_YES2

Switch Set to No:

When set to No, Chapter and Section fields are not mandatory in the Engineering Control, General tab.

12_Engineering_No

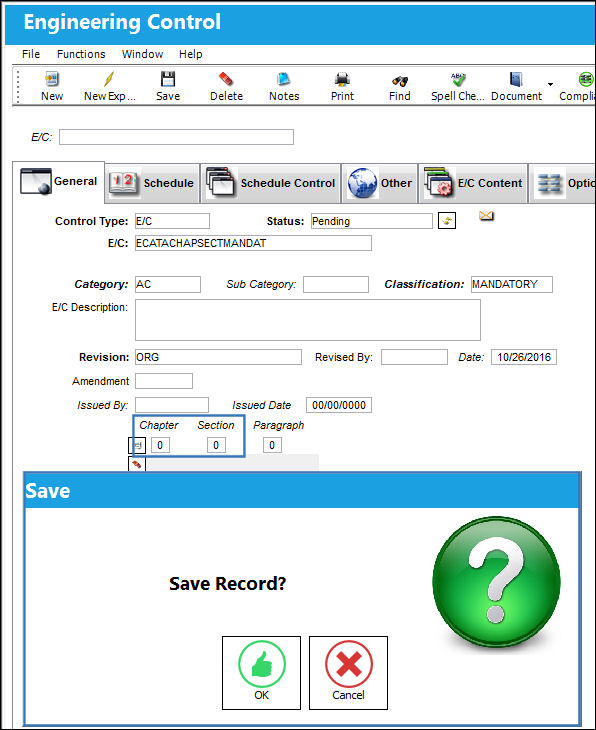

The following Engineering Control is being created. Notice neither the Chapter nor Section fields of the General tab are mandatory.

12_ECATACHAPSECTMANDAT_NO1
