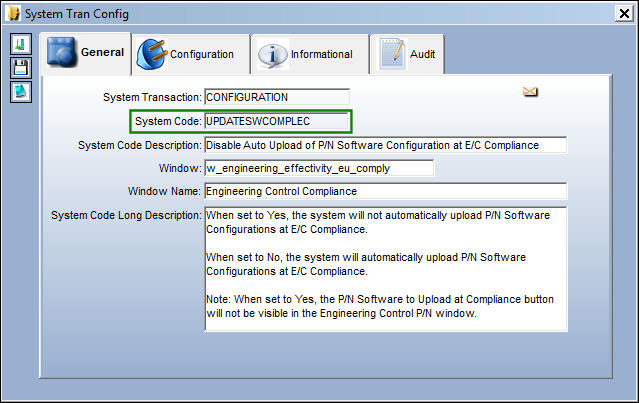

UPDATESWCOMPLEC - Disable Auto Upload of P/N Software Configuration at E/C Compliance
Disable Auto Upload of P/N Software Configuration at E/C Compliance
Affected Window: w_engineering_effectivity_eu_comply
Switch Set to Yes:
When set to Yes, the system will not automatically upload P/N Software Configurations at E/C Compliance.
When set to Yes, the P/N Software to Upload at Compliance
button is not visible in the Engineering Control P/N window. For additional information, refer to the P/N Software to Upload at Compliance Button, via Engineering Control Buttons of the Engineering - E/C Training Manual.
Switch Set to No:
When set to No, the system will automatically upload P/N Software Configurations at E/C Compliance.
Go to Engineering/ Update/ Engineering Control/ P/N CTL Button

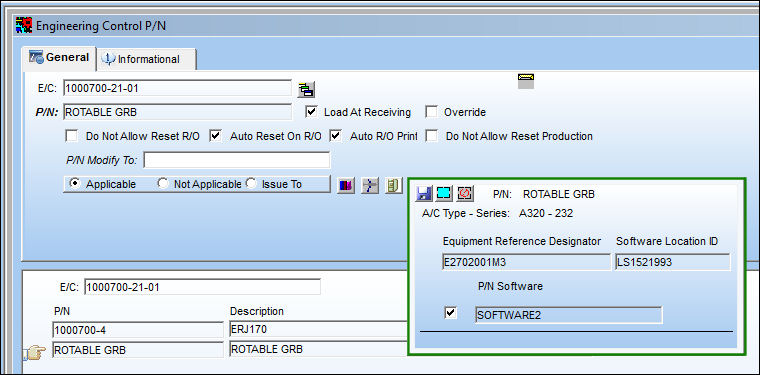

From the Engineering Control P/N window, select the P/N Software to Upload at Compliance button.
The following pop up window appears displaying the Software parts from the P/N Software Configuration that are associated with the part number. Select the checkbox to enable the Software part to be uploaded once the E/C has been complied with.

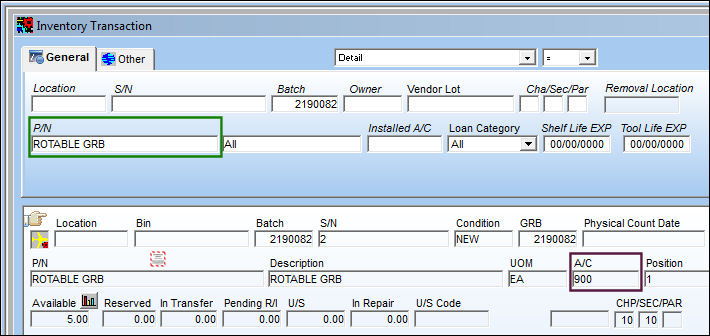

The ROTABLE GRB part is installed on A/C 900:

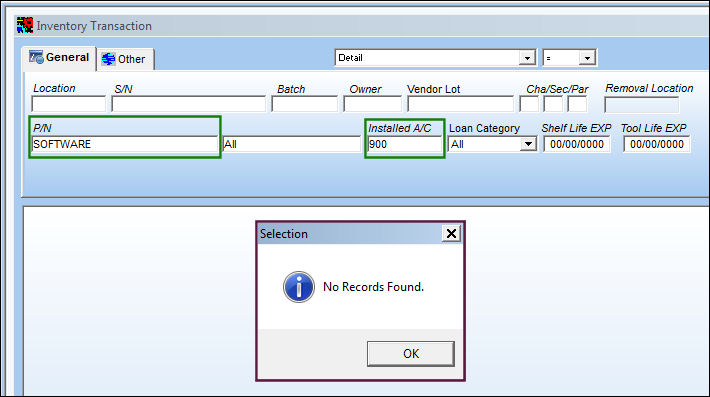

The SOFTWARE part is not installed on A/C 900:

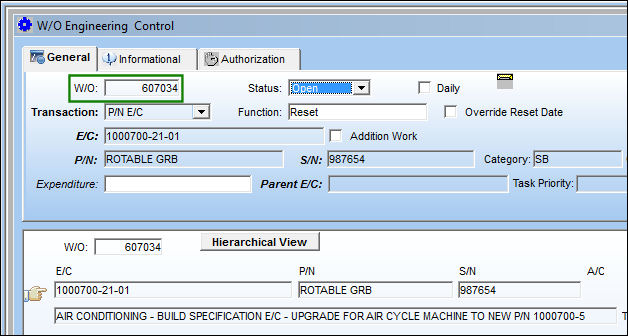

The E/C is associated to the following Work Order:

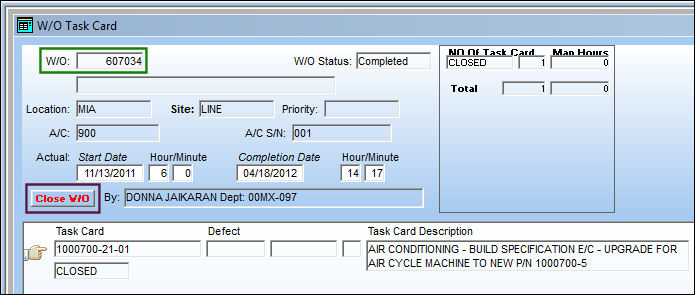

Close the Work Order:

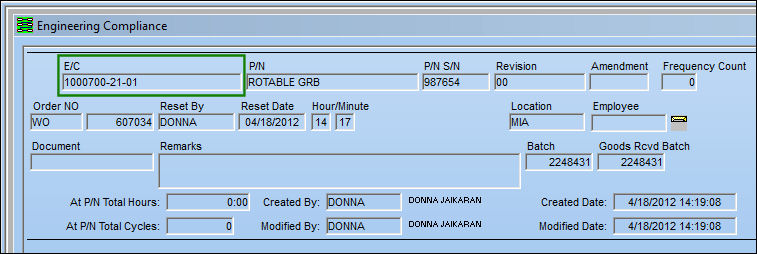

A compliance record has been created for E/C 1000700-21-01:

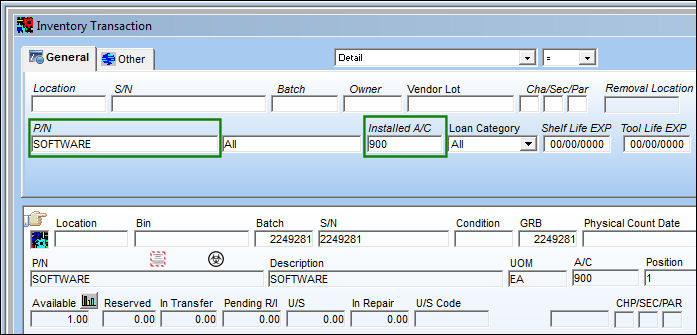

The SOFTWARE part is now installed on A/C 900 via the E/C Compliance:
