RPTSCHDMAND - Make the E/C Repeat Schedule Mandatory

TRAX MANUALS > Engineering > Engineering Switches > RPTSCHDMAND - Make the E/C Repeat Schedule Mandatory

RPTSCHDMAND - Make the E/C Repeat Schedule Mandatory

Make the E/C Repeat Schedule Mandatory

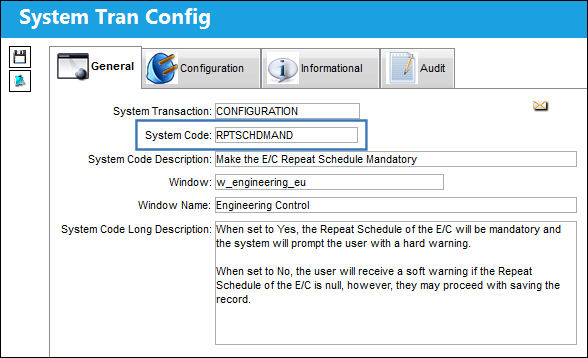

Affected Window: w_engineering_eu

12_RPTSCHDMAND1

Switch Set to Yes:

When set to Yes, the Repeat Schedule of the E/C will be mandatory and the system will prompt the user with a hard warning.

12_Engineering_Yes

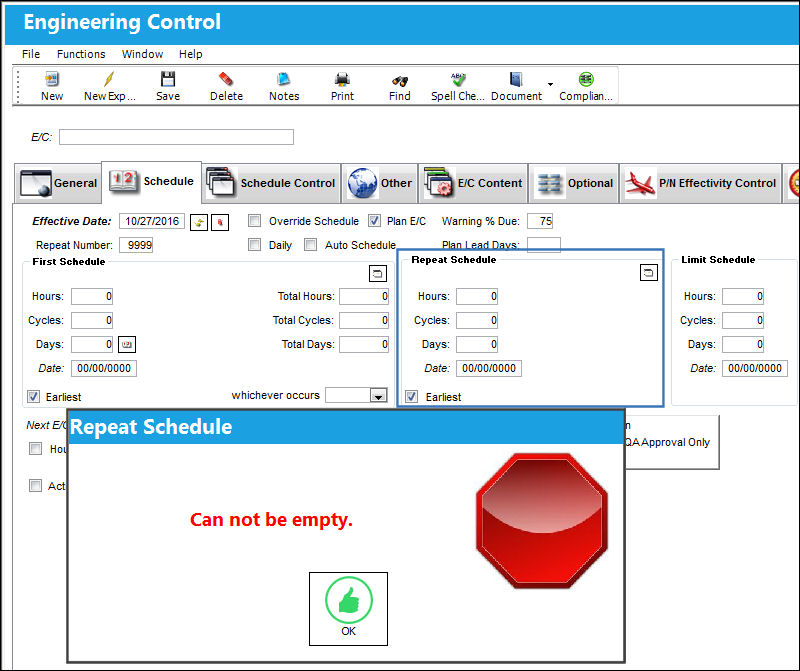

The following Engineering Control is being created. Notice the Repeat Schedule is mandatory.

12_RPTSCHMAND_Yes1

Switch Set to No:

When set to No, the user will receive a soft warning if the Repeat Schedule of the E/C is null; however, they may proceed with saving the record.

12_Engineering_No

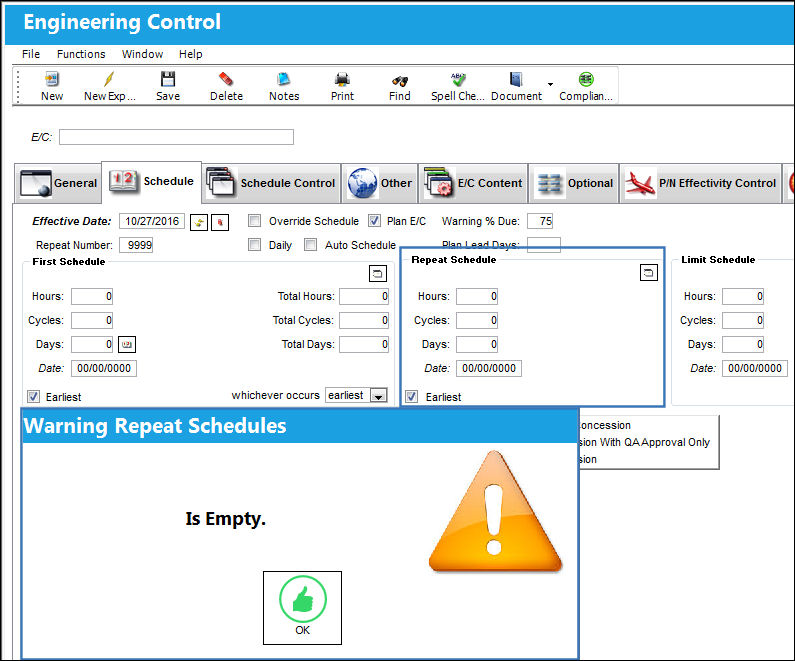

The following Engineering Control is being created. Notice the Repeat Schedule is not mandatory, but a soft warning does appear.

12_RPTSCHMAND_No1
