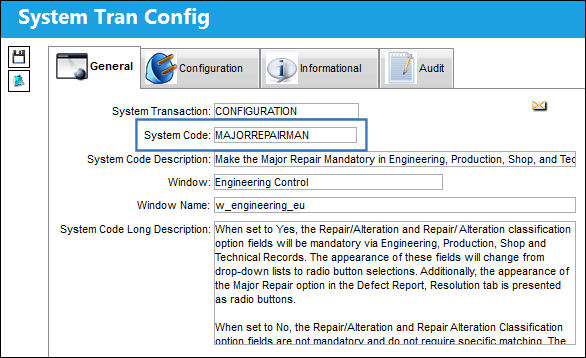

MAJORREPAIRMAN - Make the Major Repair Mandatory in Engineering, Production, Shop, and Technical Records

Make the Major Repair Mandatory in Engineering, Production, Shop, and Technical Records

Affected window: w_engineering_eu

Switch Set to Yes:

When set to Yes, the Repair/Alteration and Repair/Alteration Classification option fields will be mandatory via Engineering, Production, Shop, and Technical Records. The appearance of these fields will change from drop-down lists to radio button selections. Additionally, the appearance of the Major Repair option in the Defect Report, Resolution tab is presented as radio buttons.

Note: The following example shows the functionality in the Engineering Control window. This is utilized the same for the Shop and Technical Records.

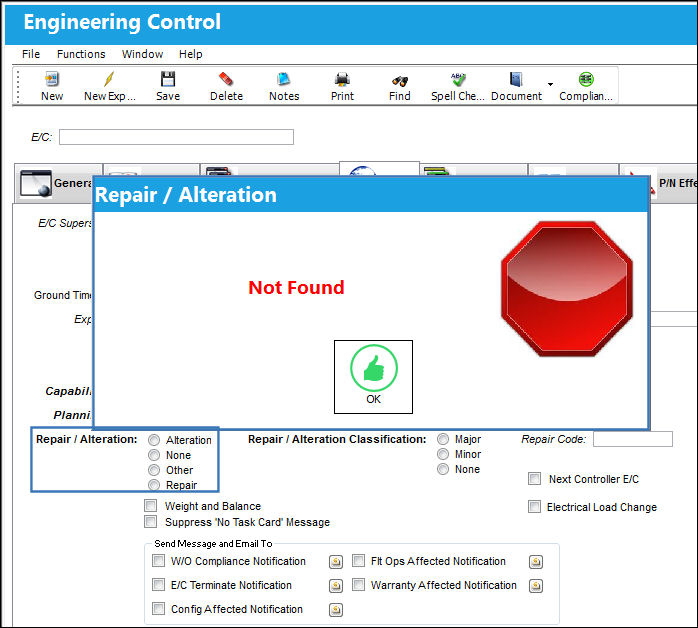

The following Engineering Control is being created. Notice the Repair/Alteration options are presented as radio buttons and are mandatory.

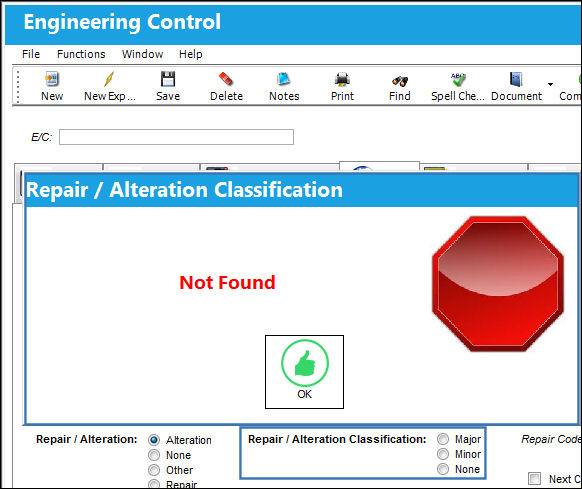

Additionally, the Repair/Alteration Classification options are also presented as radio buttons and are also mandatory.

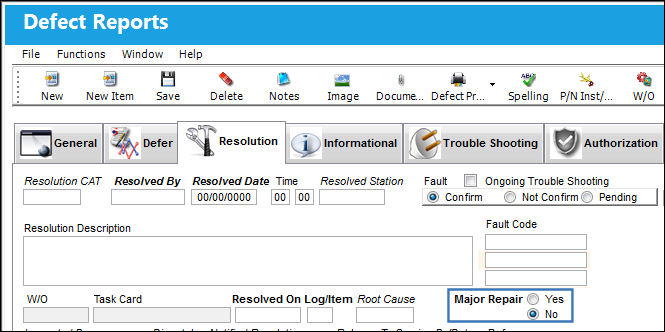

In the Defect Report, Resolution tab, the Major Repair option is presented as radio buttons.

Switch Set to No:

When set to No, the Repair/Alteration and Repair Alteration Classification option fields are not mandatory and do not require specific matching. The option fields will appear in a drop down menu. Additionally, the appearance of the Major Repair option in the Defect Report, Resolution tab is presented as a checkbox.

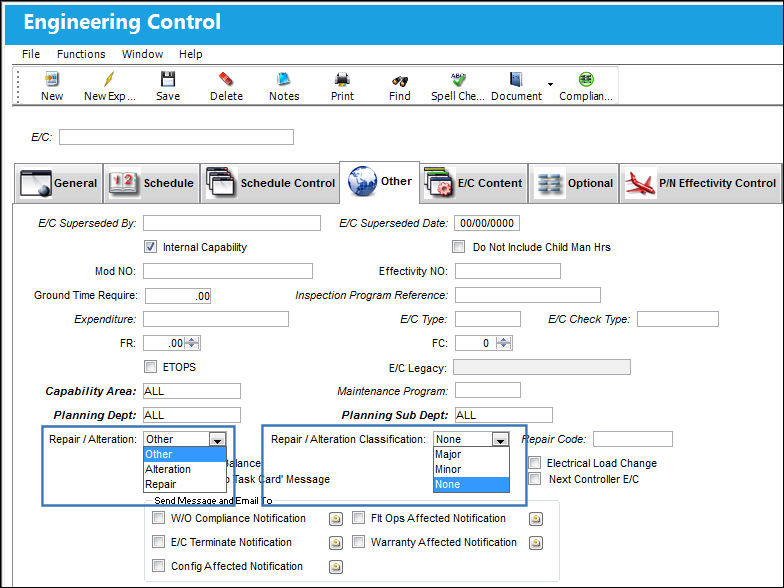

The following Engineering Control is being created. Notice the Repair/Alteration and Repair/Alteration Classification options are presented as drop-down.

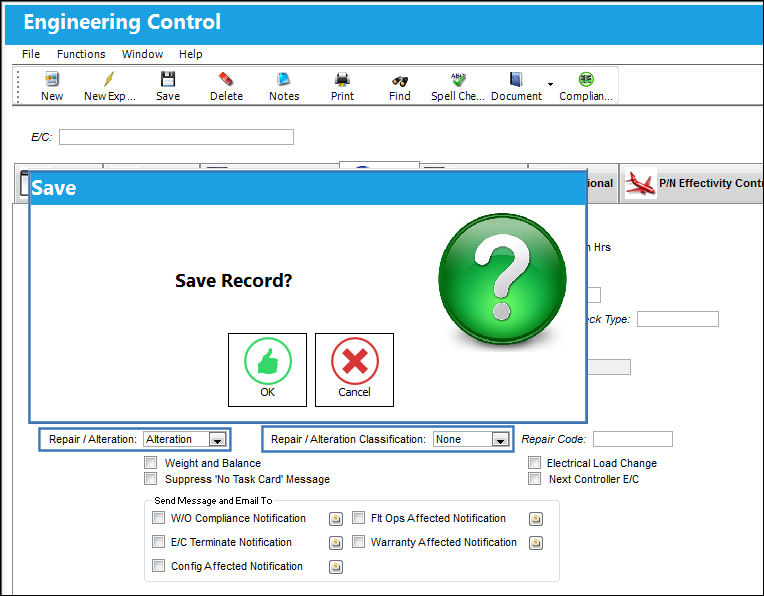

Additionally, these options are not mandatory to create the Engineering Control.

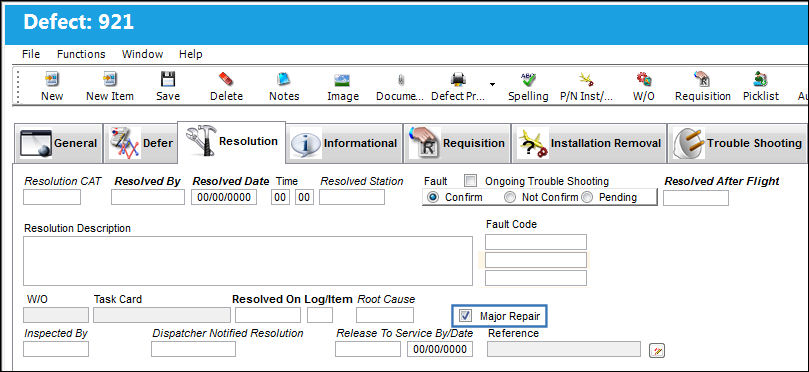

In the Defect Report, Resolution tab, the Major Repair option is presented as a checkbox.
