TCPREDRW - Task Card Pre-Draw Print After Each Task Card

Task Card Pre-Draw Print After Each Task Card

Affected window: w_task_card_print

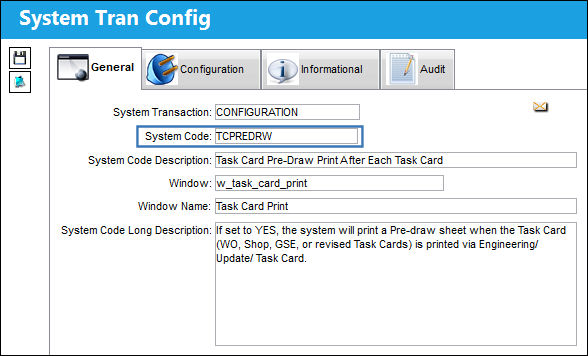

Switch Set to Yes:

When set to Yes, the system will print a Pre-draw sheet when the Task Card (WO, Shop, GSE, or revised Task Cards) is printed via Engineering/Update/Task Card.

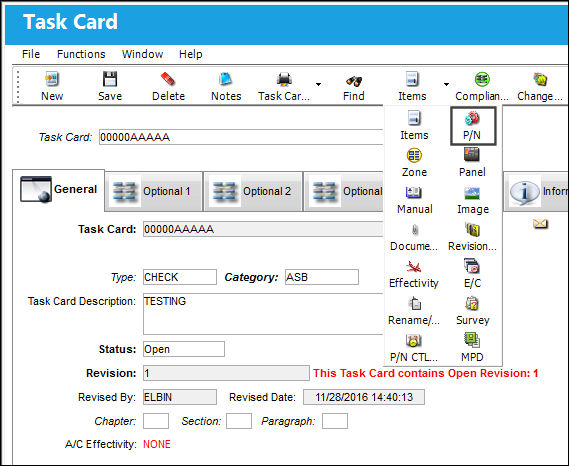

In the Task Card window, select the Items button and select P/N . This is where parts are placed on the Task Card.

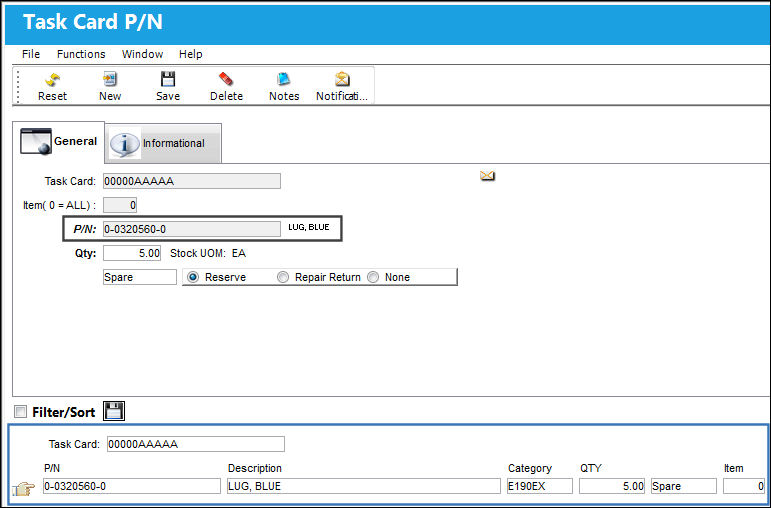

Fill in the appropriate P/N number and then Save the Task Card P/N. The parts will be included in the Pre-Draw, which will print whenever the Task Card is printed.

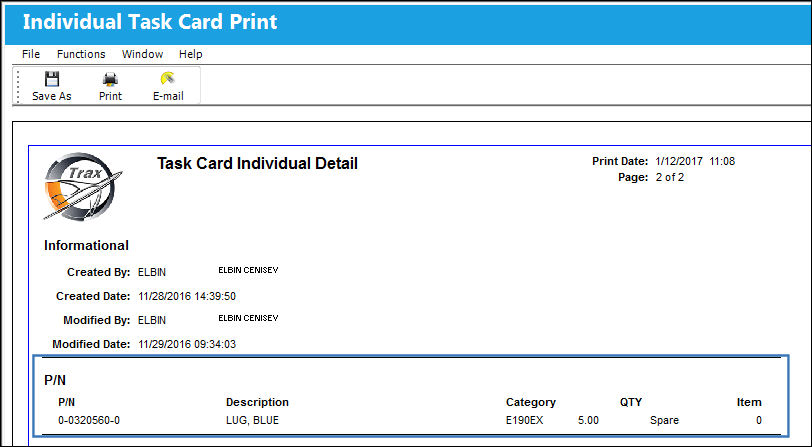

Notice the Pre-Draw prints when the Task card is printed.
