TCEXDOC - Task Card Print Exclude Document Control Attachments and Images

TRAX MANUALS > Engineering > Engineering Switches > TCEXDOC - Task Card Print Exclude Document Control Attachments and Images

TCEXDOC - Task Card Print Exclude Document Control Attachments and Images

Task Card Print Exclude Document Control Attachments and Images

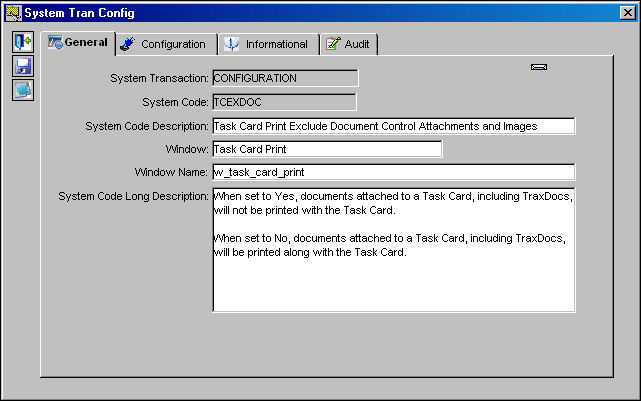

Affected Window: w_task_card_print

ENG_TCEXDOC description

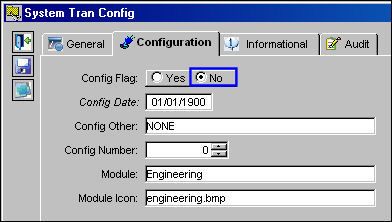

Switch Set to No:

When set to No, documents attached to a Task Card, including TraxDocs, will be printed along with the actual Task Card.

ENG_TCEXDOC no1

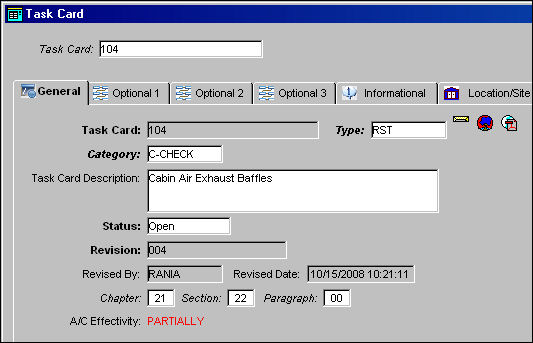

For example, select a Task Card with an attached TraxDoc.

ENG_TCEXDOC no2

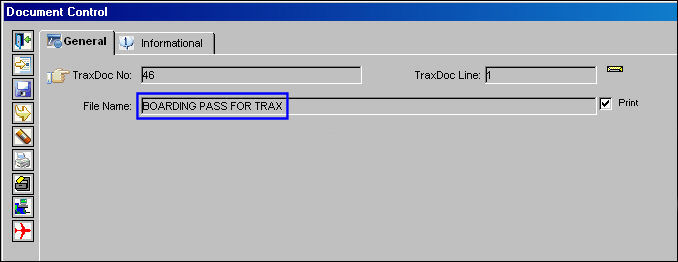

Select the Document Control icon and notice the attached TraxDoc.

ENG_TCEXDOC no8

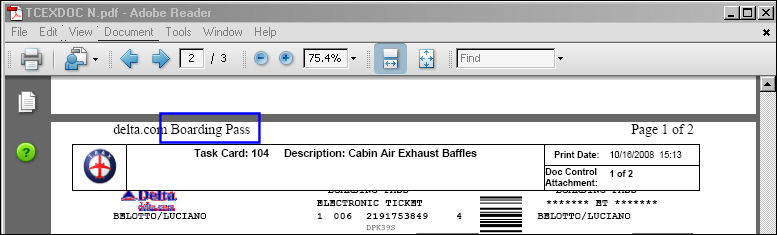

Exit from the Document Control window and print the Task Card. The attached TraxDoc will be printed along with any other attached documents or images.

ENG_TCEXDOC no7

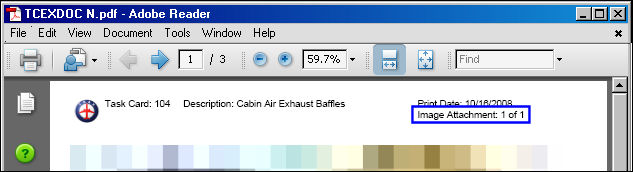

An image attached to the Task Card is also printed.

ENG_TCEXDOC no4

ENG_TCEXDOC no5

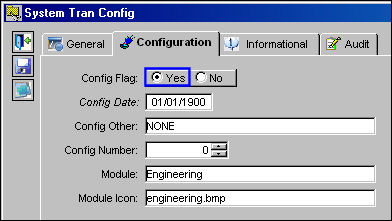

Switch Set to Yes:

When set to Yes, documents attached to a Task Card, including TraxDocs, will not be printed with the Task Card.

ENG_TCEXDOC yes1

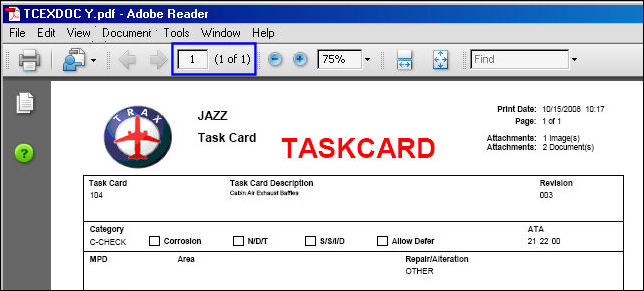

The same Task Card that was displayed above will be printed without any of the other attachments:

ENG_TCEXDOC yes3
